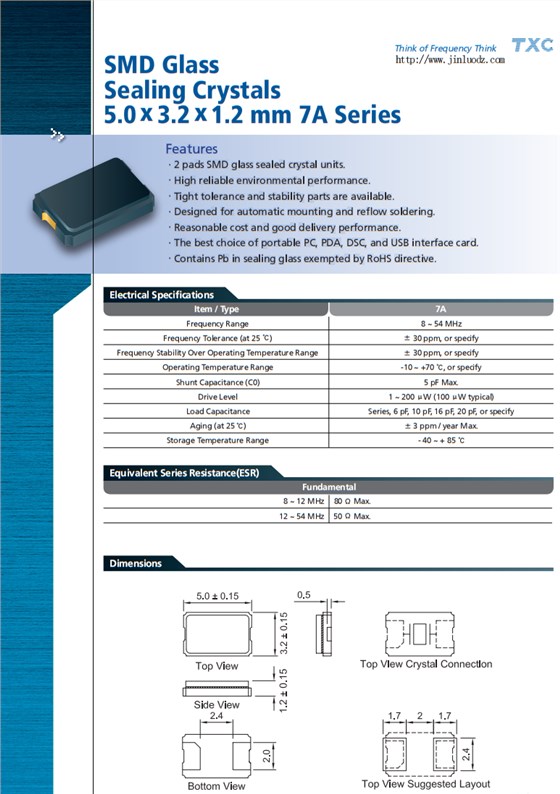

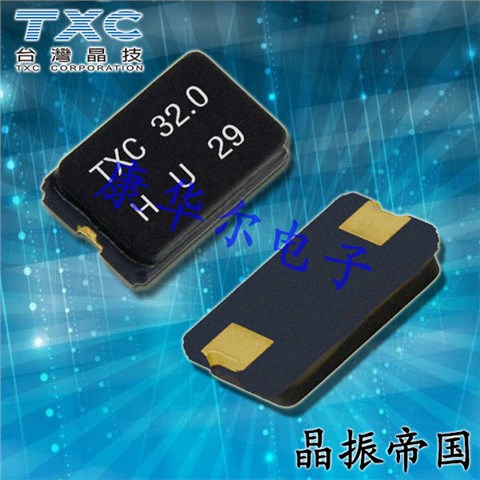

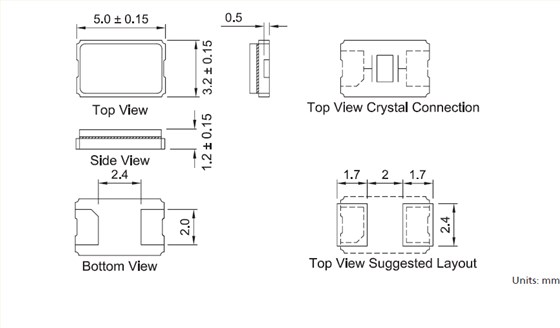

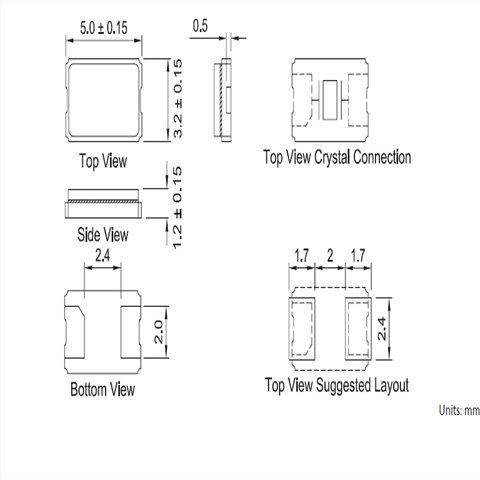

TXC-7A-29.4912MAAJ-T-29.4912MHz-30PPM-5032--20~70℃,台湾TXC晶振公司,5032晶振,TXC晶振,SMD玻璃密封晶体，5.0 x 3.2 x 1.2 mm， 7A系列，2个垫片SMD玻璃密封晶体单元。高可靠的环境性能，有紧密的公差和稳定性部件。设计用于自动安装和回流焊。成本合理，交货性能好。便携式PC、PDA、DSC、USB接口卡的最佳选择。在被RoHS指令豁免的密封玻璃中含有铅。
TXC-7A-29.4912MAAJ-T-29.4912MHz-30PPM-5032--20~70℃
频率
8 ~ 54 MHz
频率容差 (at 25 C)
± 30 ppm, or specify
在工作温度范围内的频率稳定性
± 30 ppm, or specify
工作温度范围
-10 ~ +70 C, or specify
分流电容
5 pF Max.
驱动电平
1 ~ 200 μW (100 μW typical)
负载电容
Series, 6 pF, 10 pF, 16 pF, 20 pF, or specify
老化
± 3 ppm / year Max.
储存温度
- 40 ~ + 85 C
TXC-7A-29.4912MAAJ-T-29.4912MHz-30PPM-5032--20~70℃
| TXC原厂编码 | 生产厂家 | 型号 | 频率 | 工作温度 | 频率稳定度 |
| 7A-27.120MAAE-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAE-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAE-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAJ-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAJ-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAJ-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAAJ-T | TXC Crystal | 7A | 16MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAAJ-T | TXC Crystal | 7A | 16MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAAJ-T | TXC Crystal | 7A | 16MHz | -20°C ~ 70°C | ±30ppm |
| 7A-8.000MAAJ-T | TXC Crystal | 7A | 8MHz | -20°C ~ 70°C | ±30ppm |
| 7A-8.000MAAJ-T | TXC Crystal | 7A | 8MHz | -20°C ~ 70°C | ±30ppm |
| 7A-8.000MAAJ-T | TXC Crystal | 7A | 8MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.000MAAJ-T | TXC Crystal | 7A | 12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.000MAAJ-T | TXC Crystal | 7A | 12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.000MAAJ-T | TXC Crystal | 7A | 12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAJ-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAJ-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAJ-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAJ-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAJ-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAJ-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAHE-T | TXC Crystal | 7A | 24MHz | -40°C ~ 85°C | ±30ppm |
| 7A-24.000MAHE-T | TXC Crystal | 7A | 24MHz | -40°C ~ 85°C | ±30ppm |
| 7A-24.000MAHE-T | TXC Crystal | 7A | 24MHz | -40°C ~ 85°C | ±30ppm |
| 7A-10.000MAAJ-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAJ-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAJ-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAE-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAE-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAE-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAE-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAE-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAE-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAJ-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAJ-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAJ-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-18.432MAAJ-T | TXC Crystal | 7A | 18.432MHz | -20°C ~ 70°C | ±30ppm |
| 7A-18.432MAAJ-T | TXC Crystal | 7A | 18.432MHz | -20°C ~ 70°C | ±30ppm |
| 7A-18.432MAAJ-T | TXC Crystal | 7A | 18.432MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.288MAAJ-T | TXC Crystal | 7A | 12.288MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.288MAAJ-T | TXC Crystal | 7A | 12.288MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.288MAAJ-T | TXC Crystal | 7A | 12.288MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAAJ-T | TXC Crystal | 7A | 20MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAAJ-T | TXC Crystal | 7A | 20MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAAJ-T | TXC Crystal | 7A | 20MHz | -20°C ~ 70°C | ±30ppm |
| 7A-28.63636MAAJ-T | TXC Crystal | 7A | 28.63636MHz | -20°C ~ 70°C | ±30ppm |
| 7A-28.63636MAAJ-T | TXC Crystal | 7A | 28.63636MHz | -20°C ~ 70°C | ±30ppm |
| 7A-28.63636MAAJ-T | TXC Crystal | 7A | 28.63636MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAHE-T | TXC Crystal | 7A | 16MHz | -40°C ~ 85°C | ±30ppm |
| 7A-16.000MAHE-T | TXC Crystal | 7A | 16MHz | -40°C ~ 85°C | ±30ppm |
| 7A-16.000MAHE-T | TXC Crystal | 7A | 16MHz | -40°C ~ 85°C | ±30ppm |
| 7A-48.000MAAJ-T | TXC Crystal | 7A | 48MHz | -20°C ~ 70°C | ±30ppm |
| 7A-48.000MAAJ-T | TXC Crystal | 7A | 48MHz | -20°C ~ 70°C | ±30ppm |
| 7A-48.000MAAJ-T | TXC Crystal | 7A | 48MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.000MAAJ-T | TXC Crystal | 7A | 27MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.000MAAJ-T | TXC Crystal | 7A | 27MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.000MAAJ-T | TXC Crystal | 7A | 27MHz | -20°C ~ 70°C | ±30ppm |
| 7A-26.000MAAJ-T | TXC Crystal | 7A | 26MHz | -20°C ~ 70°C | ±30ppm |
| 7A-26.000MAAJ-T | TXC Crystal | 7A | 26MHz | -20°C ~ 70°C | ±30ppm |
| 7A-26.000MAAJ-T | TXC Crystal | 7A | 26MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAHE-T | TXC Crystal | 7A | 20MHz | -40°C ~ 85°C | ±30ppm |
| 7A-20.000MAHE-T | TXC Crystal | 7A | 20MHz | -40°C ~ 85°C | ±30ppm |
| 7A-20.000MAHE-T | TXC Crystal | 7A | 20MHz | -40°C ~ 85°C | ±30ppm |
| 7A-25.000MAHE-T | TXC Crystal | 7A | 25MHz | -40°C ~ 85°C | ±30ppm |
| 7A-25.000MAHE-T | TXC Crystal | 7A | 25MHz | -40°C ~ 85°C | ±30ppm |
| 7A-25.000MAHE-T | TXC Crystal | 7A | 25MHz | -40°C ~ 85°C | ±30ppm |
| 7A-14.7456MAAE-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAE-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAE-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.31818MAAE-T | TXC Crystal | 7A | 14.31818MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.31818MAAE-T | TXC Crystal | 7A | 14.31818MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.31818MAAE-T | TXC Crystal | 7A | 14.31818MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAE-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
