3215mm,E8WSFC09-32.768KTR,E8WS,Ecliptek品牌,SMD石英晶体，美国进口晶振，ECLIPTEK晶振，日蚀晶振，型号：E8WS系列，编码为：E8WSFC09-32.768KTR，精度：±10ppm，工作温度范围：-40℃至+85℃，负载：9pF，频率：32.768KHz，小体积晶振尺寸：3.2x1.5x0.9mm，两脚贴片晶振，石英晶体谐振器，石英晶振，无源晶振，手表晶振，SMD晶振，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点。应用于：移动通讯晶振，时钟晶振，智能手表晶振，无线蓝牙晶振，仪器仪表晶振，数字电子等应用。
3215mm,E8WSFC09-32.768KTR,E8WS,Ecliptek品牌,SMD石英晶体,参数表
| Frequency | 32.768kHz | |||||||
| Equivalent Series Resistance (ESR) | 70 kOhms Max | |||||||
| Shunt Capacitance (Co) | 1.6pF Max | |||||||
| Frequency Tolerance (at 25°C) | ±20ppm (Tested at 0.1μW, See Options) | |||||||
|
Frequency Stability (over Temperature) |
-0.040ppm/(Change in °C)2Max | |||||||
| Turn over Temperature | 25°C ±5°C | |||||||
| Mode of Operation | Flexural Mode (Tuning Fork) | |||||||
| Load Capacitance | 6pF, 7pF, 9pF, 12.5pF or Specify | |||||||
| Drive Level | 0.1 µWatt Typical, 0.5µWatt Max | |||||||
| Aging (@25°C± 3°C) | ±2ppm/First Year Max | |||||||
| Operating Temperature Range | -40°C to +85°C | |||||||
| Storage Temperature Range | -55°C to +125°C | |||||||

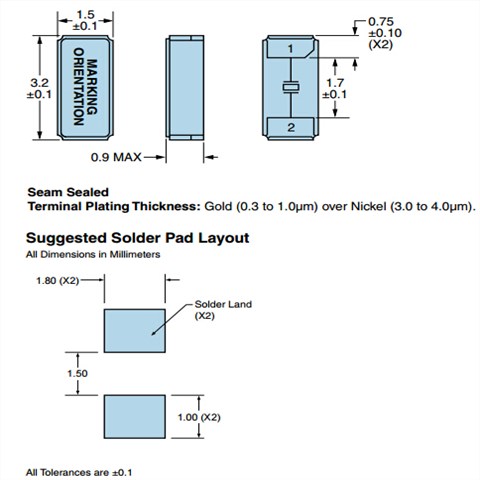

3215mm,E8WSFC09-32.768KTR,E8WS,Ecliptek品牌,SMD石英晶体,尺寸图
| 制造商零件编号 | 进口晶振 | 系列 | 频率 | 频率稳定性 | 频率容差 | 负载电容 |
| E8WSDC12-32.768K TR | Ecliptek晶振 | E8WS | 32.768 kHz | - | ±20ppm | 12.5pF |
| EA2532LA18-24.000M TR | Ecliptek晶振 | EA2532 | 24 MHz | ±30ppm | ±15ppm | 18pF |
| E1SFA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±50ppm | ±30ppm | 18pF |
| E1SJA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±30ppm | ±15ppm | 18pF |
| E1SDA12-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±50ppm | ±30ppm | 12pF |
| EA2532LA18-20.000M TR | Ecliptek晶振 | EA2532 | 20 MHz | ±30ppm | ±15ppm | 18pF |
| EA2532QA18-24.000M TR | Ecliptek晶振 | EA2532 | 24 MHz | ±20ppm | ±15ppm | 18pF |
| EA2532QA18-25.000M TR | Ecliptek晶振 | EA2532 | 25 MHz | ±20ppm | ±15ppm | 18pF |
| EB1620JA10-27.120M TR | Ecliptek晶振 | EB1620 | 27.12 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620JA10-20.000M TR | Ecliptek晶振 | EB1620 | 20 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620JA10-19.200M TR | Ecliptek晶振 | EB1620 | 19.2 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620JA10-26.000M TR | Ecliptek晶振 | EB1620 | 26 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620JA10-27.000M TR | Ecliptek晶振 | EB1620 | 27 MHz | ±30ppm | ±15ppm | 10pF |
| EB2532JA12-24.000M TR | Ecliptek晶振 | EB2532 | 24 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532JA12-27.000M TR | Ecliptek晶振 | EB2532 | 27 MHz | ±30ppm | ±15ppm | 12pF |
| EB1620YA10-24.000M TR | Ecliptek晶振 | EB1620 | 24 MHz | ±50ppm | ±30ppm | 10pF |
| EB1620YA10-26.000M TR | Ecliptek晶振 | EB1620 | 26 MHz | ±50ppm | ±30ppm | 10pF |
| EB1620YA10-24.576M TR | Ecliptek晶振 | EB1620 | 24.576 MHz | ±50ppm | ±30ppm | 10pF |
| EB1620YA10-25.000M TR | Ecliptek晶振 | EB1620 | 25 MHz | ±50ppm | ±30ppm | 10pF |
| EB2532YA12-25.000M TR | Ecliptek晶振 | EB2532 | 25 MHz | ±50ppm | ±30ppm | 12pF |
| EB2532YA12-12.288M TR | Ecliptek晶振 | EB2532 | 12.288 MHz | ±50ppm | ±30ppm | 12pF |
| EB2532YA12-27.000M TR | Ecliptek晶振 | EB2532 | 27 MHz | ±50ppm | ±30ppm | 12pF |
| EB2532YA12-20.000M TR | Ecliptek晶振 | EB2532 | 20 MHz | ±50ppm | ±30ppm | 12pF |
| EB2532YA12-26.000M TR | Ecliptek晶振 | EB2532 | 26 MHz | ±50ppm | ±30ppm | 12pF |
| EB1216JA10-27.120M TR | Ecliptek晶振 | EB1216 | 27.12 MHz | ±30ppm | ±15ppm | 10pF |
| EB1216JA10-27.000M TR | Ecliptek晶振 | EB1216 | 27 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620YA10-32.000M TR | Ecliptek晶振 | EB1620 | 32 MHz | ±50ppm | ±30ppm | 10pF |
| EB1620YA10-27.120M TR | Ecliptek晶振 | EB1620 | 27.12 MHz | ±50ppm | ±30ppm | 10pF |
| EB1216YA10-27.000M TR | Ecliptek晶振 | EB1216 | 27 MHz | ±50ppm | ±30ppm | 10pF |
| EB1216YA10-26.000M TR | Ecliptek晶振 | EB1216 | 26 MHz | ±50ppm | ±30ppm | 10pF |
| EB1216YA10-25.000M TR | 石英晶振 | EB1216 | 25 MHz | ±50ppm | ±30ppm | 10pF |
| EA2025JA18-25.000M TR | Ecliptek晶振 | EA2025 | 25 MHz | ±30ppm | ±15ppm | 18pF |
| EB3250JA12-12.000M TR | Ecliptek晶振 | EB3250 | 12 MHz | ±30ppm | ±15ppm | 12pF |
| EB3250JA12-24.000M TR | Ecliptek晶振 | EB3250 | 24 MHz | ±30ppm | ±15ppm | 12pF |
| EA3250FA18-25.000M TR | Ecliptek晶振 | EA3250 | 25 MHz | ±50ppm | ±30ppm | 18pF |
| EA2532LA18-32.000M TR | Ecliptek晶振 | EA2532 | 32 MHz | ±30ppm | ±15ppm | 18pF |
| EA2532LA18-12.000M TR | Ecliptek晶振 | EA2532 | 12 MHz | ±30ppm | ±15ppm | 18pF |
| EA2532QA18-12.000M TR | Ecliptek晶振 | EA2532 | 12 MHz | ±20ppm | ±15ppm | 18pF |
| EB2532JA12-25.000M TR | Ecliptek晶振 | EB2532 | 25 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532JA12-32.000M TR | Ecliptek晶振 | EB2532 | 32 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532JA12-20.000M TR | Ecliptek晶振 | EB2532 | 20 MHz | ±30ppm | ±15ppm | 12pF |
| EB1620YA10-27.000M TR | Ecliptek晶振 | EB1620 | 27 MHz | ±50ppm | ±30ppm | 10pF |
| EB2532JA12-24.576M TR | Ecliptek晶振 | EB2532 | 24.576 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532JA12-26.000M TR | Ecliptek晶振 | EB2532 | 26 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532JA12-12.000M TR | Ecliptek晶振 | EB2532 | 12 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532JA12-12.288M TR | Ecliptek晶振 | EB2532 | 12.288 MHz | ±30ppm | ±15ppm | 12pF |
| EB2532YA12-12.000M TR | Ecliptek晶振 | EB2532 | 12 MHz | ±50ppm | ±30ppm | 12pF |
| EB2532YA12-32.000M TR | Ecliptek晶振 | EB2532 | 32 MHz | ±50ppm | ±30ppm | 12pF |
| EB2532YA12-24.576M TR | Ecliptek晶振 | EB2532 | 24.576 MHz | ±50ppm | ±30ppm | 12pF |
| EB1216JA10-24.000M TR | Ecliptek晶振 | EB1216 | 24 MHz | ±30ppm | ±15ppm | 10pF |
| EB1216JA10-24.576M TR | Ecliptek晶振 | EB1216 | 24.576 MHz | ±30ppm | ±15ppm | 10pF |
| EB1216YA10-24.000M TR | Ecliptek晶振 | EB1216 | 24 MHz | ±50ppm | ±30ppm | 10pF |
| EB1216YA10-24.576M TR | Ecliptek晶振 | EB1216 | 24.576 MHz | ±50ppm | ±30ppm | 10pF |
| EB1620JA10-24.576M TR | Ecliptek晶振 | EB1620 | 24.576 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620JA10-25.000M TR | Ecliptek晶振 | EB1620 | 25 MHz | ±30ppm | ±15ppm | 10pF |
| EB1216YA10-32.000M TR | Ecliptek晶振 | EB1216 | 32 MHz | ±50ppm | ±30ppm | 10pF |
| EB1620JA10-32.000M TR | Ecliptek晶振 | EB1620 | 32 MHz | ±30ppm | ±15ppm | 10pF |
| EB1216YA10-27.120M TR | Ecliptek晶振 | EB1216 | 27.12 MHz | ±50ppm | ±30ppm | 10pF |
| EA2025SA10-32.000M TR | Ecliptek晶振 | EA2025 | 32 MHz | ±10ppm | ±10ppm | 10pF |
| E1SJA18-13.000M TR | Ecliptek晶振 | E1S | 13 MHz | ±30ppm | ±15ppm | 18pF |
| EA2025MA10-32.000M TR | Ecliptek晶振 | EA2025 | 32 MHz | ±20ppm | ±15ppm | 10pF |
| E1WCDA12-32.768K | Ecliptek晶振 | E1WC | 32.768 kHz | - | ±20ppm | 12.5pF |
| E1SJA18-20.000M TR | Ecliptek晶振 | E1S | 20 MHz | ±30ppm | ±15ppm | 18pF |
| E1SEA18-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | ±50ppm | ±30ppm | 18pF |
| E1SJA18-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | ±30ppm | ±15ppm | 18pF |
| E1SJA18-12.288M TR | Ecliptek晶振 | E1S | 12.288 MHz | ±30ppm | ±15ppm | 18pF |
| E1SJA18-15.000M TR | Ecliptek晶振 | E1S | 15 MHz | ±30ppm | ±15ppm | 18pF |
| E1SDA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±50ppm | ±30ppm | 18pF |
| E1SGA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±30ppm | ±15ppm | 18pF |
| EA2532QA18-26.000M TR | Ecliptek晶振 | EA2532 | 26 MHz | ±20ppm | ±15ppm | 18pF |
| EA2532QA18-20.000M TR | Ecliptek晶振 | EA2532 | 20 MHz | ±20ppm | ±15ppm | 18pF |
| EB2532YA12-24.000M TR | Ecliptek晶振 | EB2532 | 24 MHz | ±50ppm | ±30ppm | 12pF |
| EB1216JA10-26.000M TR | Ecliptek晶振 | EB1216 | 26 MHz | ±30ppm | ±15ppm | 10pF |
| EB1620JA10-24.000M TR | Ecliptek晶振 | EB1620 | 24 MHz | ±30ppm | ±15ppm | 10pF |
| E1WSDA12-32.768K TR | Ecliptek晶振 | E1WS | 32.768 kHz | - | ±20ppm | 12.5pF |
| EA2025JA18-32.000M TR | Ecliptek晶振 | EA2025 | 32 MHz | ±30ppm | ±15ppm | 18pF |
| EA2025JA10-24.000M TR | Ecliptek晶振 | EA2025 | 24 MHz | ±30ppm | ±15ppm | 10pF |
| EB3250YA12-12.000M TR | Ecliptek晶振 | EB3250 | 12 MHz | ±50ppm | ±30ppm | 12pF |
| E1SJA18-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | ±30ppm | ±15ppm | 18pF |
| EA2532LA18-25.000M TR | Ecliptek晶振 | EA2532 | 25 MHz | ±30ppm | ±15ppm | 18pF |
| EA2532UA12-24.000M TR | Ecliptek晶振 | EA2532 | 24 MHz | ±15ppm | ±10ppm | 12pF |
| EB1216JA10-25.000M TR | Ecliptek晶振 | EB1216 | 25 MHz | ±30ppm | ±15ppm | 10pF |
| EB1216JA10-32.000M TR | Ecliptek晶振 | EB1216 | 32 MHz | ±30ppm | ±15ppm | 10pF |
| EB3250YA12-24.000M TR | Ecliptek晶振 | EB3250 | 24 MHz | ±50ppm | ±30ppm | 12pF |
| E3WSDC12-32.768K TR | Ecliptek晶振 | E3WS | 32.768 kHz | - | ±20ppm | 12pF |
| E1SJA18-24.576M TR | Ecliptek晶振 | E1S | 24.576 MHz | ±30ppm | ±15ppm | 18pF |
| E1SJA18-27.000M TR | Ecliptek晶振 | E1S | 27 MHz | ±30ppm | ±15ppm | 18pF |
| E1SEA18-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | ±50ppm | ±30ppm | 18pF |
