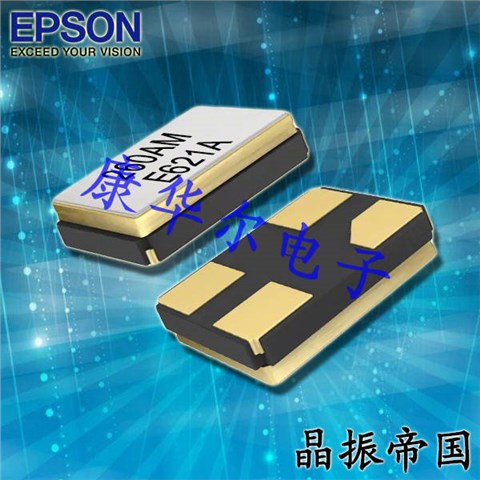

FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振

FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振

产品简介

FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振,这款2.5×2.0mm超薄贴片晶振,频率16MHz,负载电容16pF,基频振荡,ESR低,起振稳定,是蓝牙,BLE,无线传感模组常用基准时钟.工作温度-40℃~+85℃,温漂控制优秀,频率一致性高,适配主流蓝牙芯片,有效降低射频频偏,减少蓝牙连接断连问题.厚度仅0.55mm,适合智能穿戴设备晶振,TWS耳机,蓝牙遥控器,小型IoT设备高密度PCB布局.原厂严苛老化与可靠性筛选,抗振动,耐回流焊,符合RoHS无卤环保标准,SMT贴装顺畅.康华尔专营爱普生原装晶振,支持样品申请,小批量试产,长期配套备货,提供规格书与负载匹配技术支持,货源可溯源,欢迎来电咨询0755-27838351.


产品详情

FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振

康华尔电子,EPSON爱普生晶振品牌代理,主推FA-20H16.0000MF20X-B0,2520封装蓝牙无源晶振.FA-20H为爱普生经典微型贴片晶体谐振器,16MHz频点,16pF负载,4脚贴片结构,专为蓝牙,短距离无线通信开发.晶片切割研磨工艺精良,等效串联电阻低,驱动功耗小,契合电池供电蓝牙终端低功耗设计需求.全温区频率稳定性好,批次差异小,长期老化漂移低,保障蓝牙通信时序精准,连接稳定,广泛应用于蓝牙模块,智能手环,蓝牙门锁,无线传感器,便携蓝牙外设.封装小巧,节省板上空间,适配自动化量产焊接,满足海内外环保认证.康华尔渠道稳定,只做原装正品,拒绝翻新散新,可快速提供样品测试,批量报价,配合项目进度灵活排单,有采购选型需求,欢迎致电0755-27838351洽谈合作.

FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振

品牌 EPSON晶振
编码 FA-20H16.0000MF20X-B0
型号 FA-20H
频率 16MHZ
精度 ±10ppm
负载 16PF
尺寸 2520mm
工作温度 -40℃~+85℃

FA-20H16.0000MF20X-B0,FA-20H晶体谐振器,2520蓝牙晶振

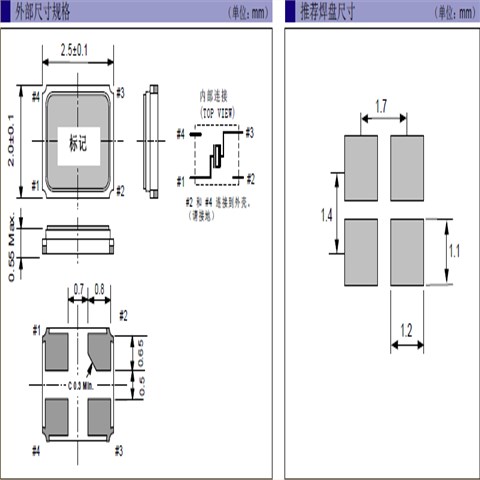

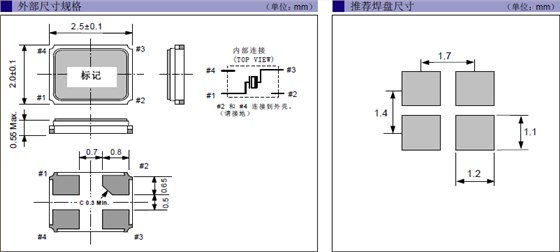

FA-20H 2520

更多相关晶振参考

编码 品牌 型号 尺寸 频率 负载
12.87000 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 12.5pF
12.87001 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 9pF
12.87002 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 7pF
12.87034 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 4pF
12.87080 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87081 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF
12.87083 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF
12.87086 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF
12.87090 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87095 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87105 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF
12.87107 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87109 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12pF
12.87110 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87111 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87112 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87113 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87114 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87115 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87116 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87118 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF
12.87119 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF
12.87120 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87121 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87123 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF
12.87126 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87127 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF
12.87128 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF
12.87129 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87130 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87131 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87132 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87133 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87134 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87135 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87136 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87137 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 9pF
12.87138 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87139 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87143 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87144 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87145 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768KHz 12.5pF
12.87146 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87147 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87148 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87149 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87150 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87151 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87152 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87153 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87155 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87157 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87158 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87159 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87160 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87161 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87163 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 7pF
12.87164 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87165 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87166 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87167 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87168 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87169 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87170 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF
12.87171 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF
12.87172 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 9pF
12.87173 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 9pF
12.87174 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF
12.87175 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF
12.87176 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF
12.87177 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF
12.87178 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 4pF
12.87180 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 9pF
12.87181 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87182 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 7pF
12.87183 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87186 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87187 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 6pF
12.87188 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
