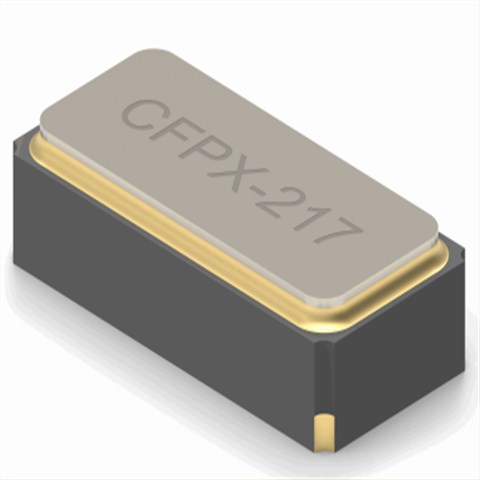

CFPX-217,LFXTAL054236REEL,3215mm,32.768KHz,IQD品牌，IQD晶振，伊克德晶振，英国进口晶振，型号：CFPX-217，编码为：LFXTAL054236REEL，负载电容：6pF，频率公差：±20ppm，频率为：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.9mm，两脚贴片晶振，无源晶体，3215晶振，手表晶振，石英晶振，SMD晶振，石英晶体谐振器，石英水晶振动子，无铅晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，耐热及耐环境特点。谐振器，应用于：实时时钟应用程序，无线蓝牙晶振，钟表电子晶振，数字显示晶振，数码电子等应用。
CFPX-217,LFXTAL054236REEL,3215mm,32.768KHz,IQD品牌,参数表
| Frequency | 32.768kHz |
| Frequency Tolerance | ±20.00ppm |
| Tolerance Condition | @ 25℃ ±5℃ |
| Ageing | ±3ppm max in 1st year @ 25℃ |
| Typical Frequency Stability Coefficient: | -0.03ppm/°C² ±0.01ppm/°C² |
| Load Capacitance (CL) | 6.0pF to 12.5pF |
| Shunt Capacitance (C0) | 1.0pF typical |
| Drive Level | 0.1µW typ, 1µW max |
| Motional Capacitance (C1): | 1.9fF typ |
| Storage Temperature Range: |
-55℃ to 125℃ |
CFPX-217,LFXTAL054236REEL,3215mm,32.768KHz,IQD品牌,尺寸图
| 制造商零件编码 | 制造商 | 系列 | 描述 | 频率 |
| LFXTAL084882REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL051643REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL050789REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL084883REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL066198REEL | IQD晶振 | IQXC-90 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL009678REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL084884REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL084885REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL073264REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL059461REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL062558REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL065455REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL025159REEL | IQD晶振 | CFPX-56 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL002996BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 12.5PF TH | 时钟晶振 |
| LFXTAL025159BULK | IQD晶振 | CFPX-56 | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL014219BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 6PF TH | 32.768 kHz |
| LFXTAL002995BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL002997BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL016178REEL | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003000REEL | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL050632REEL | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL066431REEL | IQD晶振 | IQXC-90 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL054236REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL009709REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL009706REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL065253REEL | IQD晶振 | IQXC-90 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL066834REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL003000BULK | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL016178BULK | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL015822REEL | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003003REEL | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL003004REEL | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL010193REEL | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL010193BULK | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003003BULK | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL015822BULK | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003004BULK | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
