爱普生是日本有名的频率元件制造商,专业生产销售石英贴片晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品.

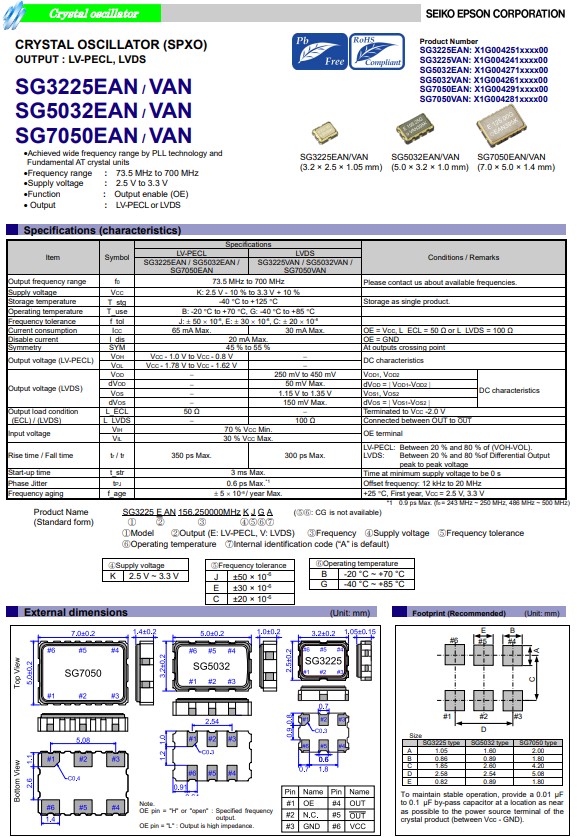

爱普生晶振SG5032EAN，是一款LV-PECL输出差分晶体振荡器，小体积晶振尺寸5.0x3.2mm晶体振荡器，六脚贴片晶振，有源晶振，电源电压2.5V至3.3V，宽频率范围73.5MHz至700MHz任意一频点具有低电源电压，满足产品低消耗电流的特点。该产品具有超小型，轻薄型，低抖动，低功耗晶振，低耗能，低损耗，低电源电压，低电平，低相位噪声等特点，能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰（EMI）是高度免疫的.广泛应用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA，SAS，光纤通信，10G以太网及各种频率控制设备上。
5G室内路由器专用晶振SG5032EAN编码X1G004271002000
                                     产品编码
|
      型号
|
      频率
|
      爱普生晶振
|
      输出波
|
      电源电压
|
   工作温度
|
|
X1G004271000100
|
SG5032EAN
|
125.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271000400
|
SG5032EAN
|
100.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271001200
|
SG5032EAN
|
150.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271001300
|
SG5032EAN
|
155.520000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271001400
|
SG5032EAN
|
156.250000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271002000
|
SG5032EAN
|
125.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271003300
|
SG5032EAN
|
156.250000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271010900
|
SG5032EAN
|
250.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271011600
|
SG5032EAN
|
133.330000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271011700
|
SG5032EAN
|
133.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271011800
|
SG5032EAN
|
133.333000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271011900
|
SG5032EAN
|
174.703125MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-20 to 70 °C
|
|
X1G004271012100
|
SG5032EAN
|
161.132813MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271012200
|
SG5032EAN
|
425.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
|
X1G004271012300
|
SG5032EAN
|
500.000000MHz
|
5.00x3.20x1.20mm
|
LV-PECL
|
2.250 to 3.630 V
|
-40 to 85 °C
|
5G室内路由器专用晶振SG5032EAN编码X1G004271002000
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,爱普生差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性。
