ECS的无源谐振器ECS-160-8-36CKM-TR可以胜任计时解决方案，ECS Inc. 过去 40 年在计时解决方案中积累的专业知识使技术进步成为可能，从而保持领先地位。生产包括振荡器和石英晶体在内的高质量组件是ECS Inc. 的知名和引以为豪的事情。
|
Manufacturer Part Number原厂编码
|
Manufacturer厂家
|
Series型号
|
Type 系列
|
Frequency
|
Operating Temperature 工作温度
|
|
ECS-160-8-36CKM-TR
|
ECS晶振
|
ECX-2236
|
MHz Crystal
|
16MHz
|
-20°C ~ 70°C
|
|
ECS-160-8-36CKM-TR
|
ECS晶振
|
ECX-2236
|
MHz Crystal
|
16MHz
|
-20°C ~ 70°C
|
|
ECS-160-8-36CKM-TR
|
ECS晶振
|
ECX-2236
|
MHz Crystal
|
16MHz
|
-20°C ~ 70°C
|
|
ECS-320-8-30B-CKM
|
ECS晶振
|
ECX-53B
|
MHz Crystal
|
32MHz
|
-20°C ~ 70°C
|
|
ECS-320-8-30B-CKM
|
ECS晶振
|
ECX-53B
|
MHz Crystal
|
32MHz
|
-20°C ~ 70°C
|
|
ECS-320-8-30B-CKM
|
ECS晶振
|
ECX-53B
|
MHz Crystal
|
32MHz
|
-20°C ~ 70°C
|
|
ECS-147-20-23A-EN-TR
|
ECS晶振
|
ECX-64A
|
MHz Crystal
|
14.7456MHz
|
-40°C ~ 85°C
|
|
ECS-147-20-23A-EN-TR
|
ECS晶振
|
ECX-64A
|
MHz Crystal
|
14.7456MHz
|
-40°C ~ 85°C
|
|
ECS-147-20-23A-EN-TR
|
ECS晶振
|
ECX-64A
|
MHz Crystal
|
14.7456MHz
|
-40°C ~ 85°C
|
|
ECS-240-18-23A-EN-TR
|
ECS晶振
|
ECX-64A
|
MHz Crystal
|
24MHz
|
-40°C ~ 85°C
|
|
ECS-240-18-23A-EN-TR
|
ECS晶振
|
ECX-64A
|
MHz Crystal
|
24MHz
|
-40°C ~ 85°C
|
|
ECS-240-18-23A-EN-TR
|
ECS晶振
|
ECX-64A
|
MHz Crystal
|
24MHz
|
-40°C ~ 85°C
|
|
ECS-320-8-36CKM-TR
|
ECS晶振
|
ECX-2236
|
MHz Crystal
|
32MHz
|
-20°C ~ 70°C
|
这些组件为任何系统提供无可挑剔的时序、可靠性和性能。由于无源
晶振和有源元件用于许多不同的应用，如汽车、非生命维持医疗、手表和其他技术，准确性和精度至关重要。

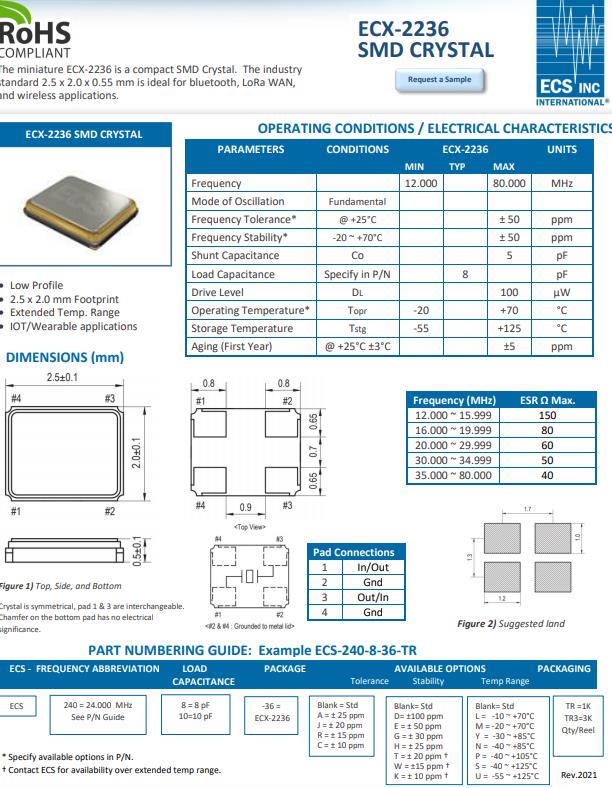

微型ECX-2236是一个紧凑的SMD晶振。编码ECS-160-8-36CKM-TR，这个行业标准2.5 x 2.0 x 0.55 mm，适用于蓝牙、LoRa WAN、和无线应用程序。
ECS的无源谐振器ECS-160-8-36CKM-TR可以胜任计时解决方案，The expertise built in timing solutions over the last 40 years at ECS Inc. has allowed for technological advancements in staying ahead of trends. Producing high quality components including oscillators and crystals is what ECS Inc. is known for and takes pride in.
These components provide impeccable timing, reliability and performance to any system. With passive and active components used in many different applications like automotive, non-life sustaining medical, watches and other tech, accuracy and precision are essential.
The miniature ECX-2236 is a compact SMD Crystal. The industry standard 2.5 x 2.0 x 0.55 mm is ideal for bluetooth, LoRa WAN, and wireless applications.
