Connor-Winfield康纳温菲尔德晶振OH300系列，高稳定性OCXO恒温晶振，是异常精确的频率标准，非常适用于蜂窝基站站，测试设备，同步 以太网、VSAT和3E层 应用程序。这些独特的OCXO/VCOXO振荡器在商业、扩展商业或工业温度范围内提供±5ppb至±50ppb范围内的频率稳定性。预热后，商业温度范围内的功率要求为1.1W，工业温度范围内为1.5W。此外，通过使用泛音SC切割晶体可以实现出色的老化。有源晶体OH300系列可提供CMOS逻辑或正弦波输出以及电压控制选项。这些振荡器提供了显著的相位噪声，其根据频率要求而变化。Allan Variance规范被评定为主要参考标准。预热时间大约为5分钟到最终频率的0.10ppm。OCXO晶振OH300-70503CF-024.576M提供±5ppb至±50ppb范围内的频率稳定性
|
原厂代码
|
康纳温菲尔德晶振
|
型号
|
频率
|
工作温度
|
包装/封装
|
|
OH300-71003SV-010.0M
|
ConnorWinfield晶振
|
OH300
|
10MHz
|
-20°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CV-020.0M
|
ConnorWinfield晶振
|
OH300
|
20MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CV-010.0M
|
ConnorWinfield晶振
|
OH300
|
10MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-50503CV-012.8M
|
ConnorWinfield晶振
|
OH300
|
12.8MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CV-010.0M
|
ConnorWinfield晶振
|
OH300
|
10MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61005CV-030.72M
|
ConnorWinfield晶振
|
OH300
|
30.72MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-71003SV-100.0M
|
ConnorWinfield晶振
|
OH300
|
100MHz
|
-20°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CF-010.0M
|
ConnorWinfield晶振
|
OH300
|
10MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-70503CF-020.0M
|
ConnorWinfield晶振
|
OH300
|
20MHz
|
-20°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CV-012.8M
|
ConnorWinfield晶振
|
OH300
|
12.8MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-61003CF-012.8M
|
ConnorWinfield晶振
|
OH300
|
12.8MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-50503CF-020.0M
|
ConnorWinfield晶振
|
OH300
|
20MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-70503CF-024.576M
|
ConnorWinfield晶振
|
OH300
|
24.576MHz
|
-20°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CF-012.8M
|
ConnorWinfield晶振
|
OH300
|
12.8MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-60503CF-024.576M
|
ConnorWinfield晶振
|
OH300
|
24.576MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-61003CF-020.0M
|
ConnorWinfield晶振
|
OH300
|
20MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-50503CF-010.0M
|
ConnorWinfield晶振
|
OH300
|
10MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CF-040.0M
|
ConnorWinfield晶振
|
OH300
|
40MHz
|
-20°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CV-020.0M
|
ConnorWinfield晶振
|
OH300
|
20MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-61003CV-040.0M
|
OCXO晶振
|
OH300
|
40MHz
|
-20°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CF-025.0M
|
ConnorWinfield晶振
|
OH300
|
25MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CF-040.0M
|
ConnorWinfield晶振
|
OH300
|
40MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CV-040.0M
|
ConnorWinfield晶振
|
OH300
|
40MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CF-025.0M
|
ConnorWinfield晶振
|
OH300
|
25MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-61003CV-025.0M
|
ConnorWinfield晶振
|
OH300
|
25MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-50503CV-050.0M
|
ConnorWinfield晶振
|
OH300
|
50MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CV-025.0M
|
ConnorWinfield晶振
|
OH300
|
25MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-50503CF-050.0M
|
ConnorWinfield晶振
|
OH300
|
50MHz
|
0°C ~ 70°C
|
7-SMD, No Lead
|
|
OH300-61003CF-050.0M
|
ConnorWinfield晶振
|
OH300
|
50MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
|
OH300-61003CV-050.0M
|
ConnorWinfield晶振
|
OH300
|
50MHz
|
-40°C ~ 85°C
|
7-SMD, No Lead
|
OCXO晶振OH300-70503CF-024.576M提供±5ppb至±50ppb范围内的频率稳定性

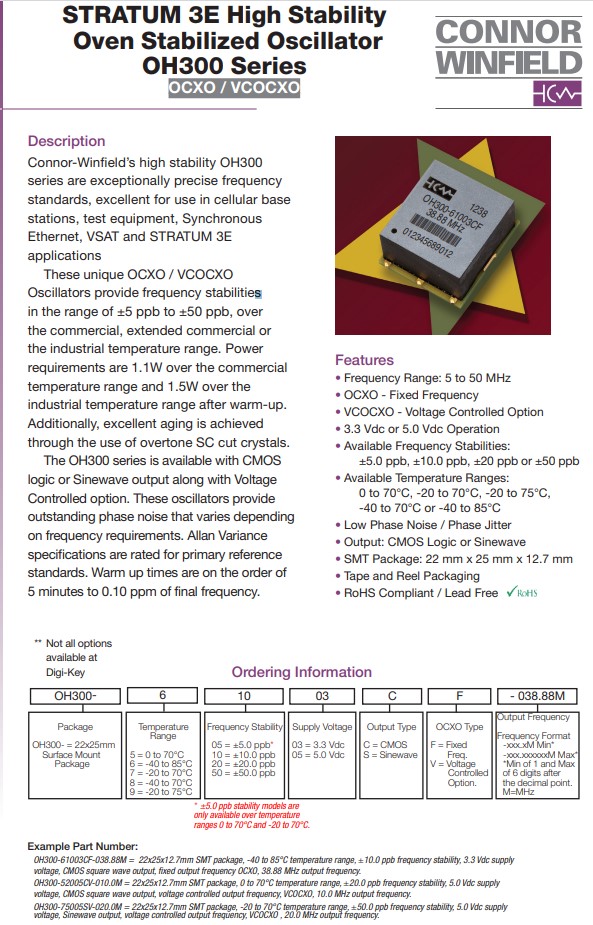

OH300晶振特征：
频率范围：5至50MHz
VCOCXO-电压控制选项
3.3 Vdc或5.0 Vdc操作
可用频率稳定性：
±5.0磅/平方英寸、±10.0磅/平方毫米、±20磅/平方英尺或±50磅/平方米
可用温度范围：
0至70°C、-20至70°C.、-20至75°C，
-40至70°C或-40至85°C
低相位噪声/相位抖动
输出：CMOS逻辑或正弦波
SMT封装：22毫米x25毫米x12.7毫米
磁带和卷轴包装
符合RoHS标准/无铅
