医疗设备应用晶振SG-8101CGA爱普生有源晶振X1G005171003900
另外的考虑因素是为器件供电所需的电流量XO或TCXO可能只需要几mA,因此在低电压系统中,其功耗可以小于0.01W.另一方面在上电时,爱普生有源晶振一些XO可以需要5W或6W.4.输出波形然后要选择输出波形以匹配振荡器将在系统中驱动的负载.最常见的输出之一是CMOS以驱动逻辑电平输入.CMOS输出将是在地电位和系统的Vdd轨之间摆动的方波.

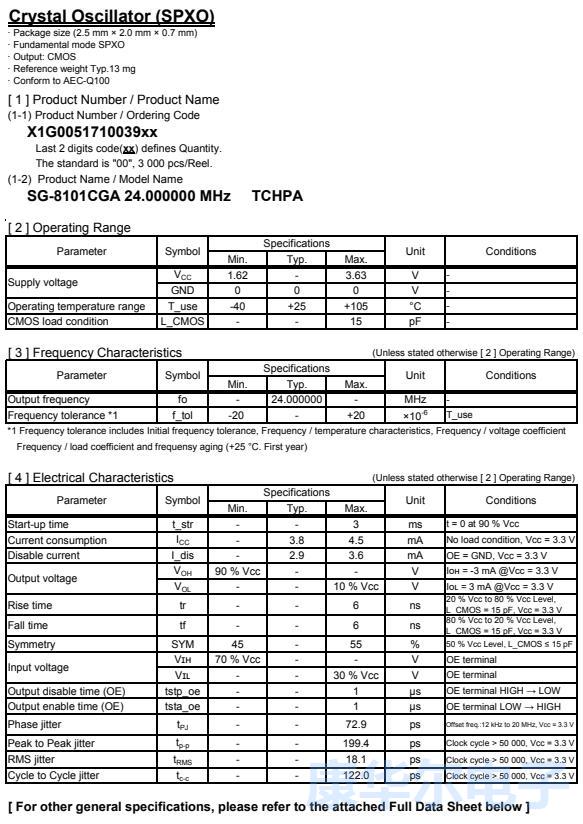

SG-8101CGA爱普生有源晶振X1G005171003900,医疗设备应用晶振
|
爱普生有源晶振编码
|
型号
|
频率
|
长X宽X高
|
输出波
|
电源电压
|
工作温度
|
|
X1G005171001100
|
SG-8101CGA
|
27.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171001500
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171001600
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171001800
|
SG-8101CGA
|
62.500000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171002300
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 85 °C
|
|
X1G005171002400
|
SG-8101CGA
|
79.200000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171002500
|
SG-8101CGA
|
109.800000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171003600
|
SG-8101CGA
|
36.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171003700
|
SG-8101CGA
|
20.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171003800
|
SG-8101CGA
|
33.330000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171003900
|
SG-8101CGA
|
24.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171004100
|
SG-8101CGA
|
16.666600 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171004200
|
SG-8101CGA
|
25.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171004300
|
SG-8101CGA
|
60.925000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171004400
|
SG-8101CGA
|
33.330000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171004500
|
SG-8101CGA
|
33.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171004600
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171004700
|
SG-8101CGA
|
40.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171004800
|
SG-8101CGA
|
100.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171004900
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171005000
|
SG-8101CGA
|
148.500000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
|
X1G005171005100
|
SG-8101CGA
|
25.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171005200
|
SG-8101CGA
|
148.500000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
|
X1G005171005300
|
SG-8101CGA
|
72.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
不同晶振的频率-温度稳定性.温度稳定性输入电压和功率任何类型的晶振通常都可以被设计为利用系统中已有的DC输入电源电压来操作.在数字系统中,爱普生可编程晶体振荡器通常希望使用与振荡器将驱动的系统中的逻辑器件所使用的电压相匹配的电压来驱动晶振,以便逻辑电平是直接兼容的.+3.3V或+5V是这些数字单元的典型输入.具有较高功率输出的其它器件可以使用较高电压,例如+12V或+15V.
SG-8101CGA爱普生有源晶振X1G005171003900,医疗设备应用晶振
