汽车智能电动电源模块晶振系列SG-8101CGA有源晶振X1G005171004800
消息人士指出Jih Lin 和 SDI 通过为其定制电源模块提供封装引线框架,切入了全球主要汽车 IC IDM 的供应链.
包括英飞凌、恩智浦半导体和意法半导体在内的 IDM 已将更多的汽车 MCU 生产外包给代工厂和后端公司.消息人士称对于汽车电源模块,爱普生有源晶振这些 IDM 仅将后端部分外包给 ASE Technology 等 OSAT.
汽车模块市场状况引线框厂商车用电源模块订单火爆,据业内消息人士称由于 IDM 对汽车电源模块的强劲需求,引线框架制造商 Jih Lin Technology 和 Shuen Der Industry (SDI) 在 2023 年底之前看到了清晰的订单可见性.SG-8101CGA有源晶振,X1G005171004800汽车模块晶振
|
爱普生有源晶振编码
|
型号
|
频率
|
长X宽X高
|
输出波
|
电源电压
|
工作温度
|
频差
|
|
X1G005171001100
|
SG-8101CGA
|
27.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171001500
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-50 ppm
|
|
X1G005171001600
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171001800
|
SG-8101CGA
|
62.500000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-100 ppm
|
|
X1G005171002300
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 85 °C
|
+/-15 ppm
|
|
X1G005171002400
|
SG-8101CGA
|
79.200000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-100 ppm
|
|
X1G005171002500
|
SG-8101CGA
|
109.800000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171003600
|
SG-8101CGA
|
36.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-50 ppm
|
|
X1G005171003700
|
SG-8101CGA
|
20.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171003800
|
SG-8101CGA
|
33.330000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171003900
|
SG-8101CGA
|
24.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171004100
|
SG-8101CGA
|
16.666600 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171004200
|
SG-8101CGA
|
25.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-50 ppm
|
|
X1G005171004300
|
SG-8101CGA
|
60.925000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-50 ppm
|
|
X1G005171004400
|
SG-8101CGA
|
33.330000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171004500
|
SG-8101CGA
|
33.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171004600
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171004700
|
SG-8101CGA
|
40.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|

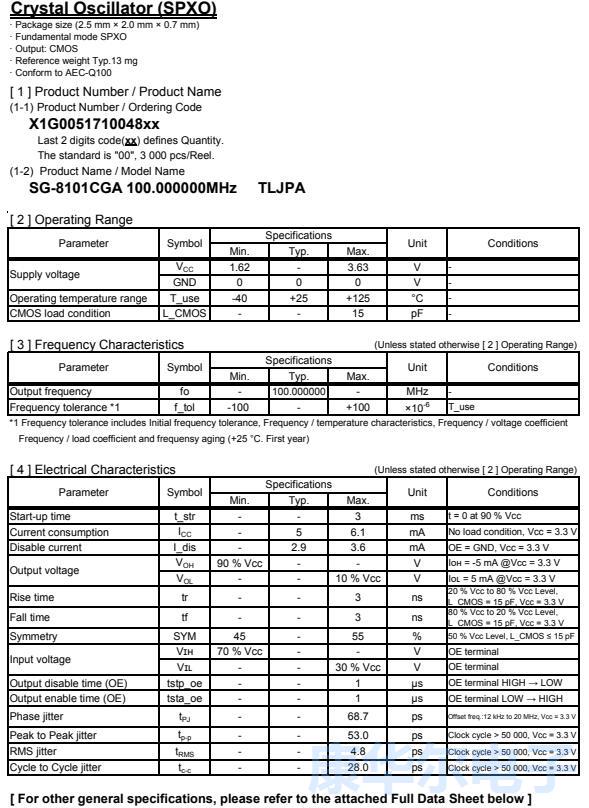

X1G005171004800
|
SG-8101CGA
|
100.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-100 ppm
|
|
X1G005171004900
|
SG-8101CGA
|
125.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-100 ppm
|
|
X1G005171005000
|
SG-8101CGA
|
148.500000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-50 ppm
|
|
X1G005171005100
|
SG-8101CGA
|
25.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171005200
|
SG-8101CGA
|
148.500000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 105 °C
|
+/-20 ppm
|
|
X1G005171005300
|
SG-8101CGA
|
72.000000 MHz
|
2.50 x 2.00 x 0.80 mm
|
CMOS
|
1.620 to 3.630 V
|
-40 to 125 °C
|
+/-50 ppm
|
很多电源模块公司获得智能电动汽车公司电动汽车充电桩订单6月,据业内人士透露已获得用于电动汽车EV充电桩的功率模块的封装订单,同时享受汽车微控制器单元MCU的订单增长.
据报道,Jih Lin 参与了特斯拉电动汽车采用的混合 SiC-IGBT 功率模块的供应链.
此外市场消息人士称Jih Lin 和 SDI 汽车级晶振预计将在 2022 年实现可观的利润增长.今年上半年,两家引线框架供应商都设法提高了报价.
公司董事长在 6 月 21 日的股东大会间隙表示,Jih Lin 对汽车功率器件的引线框架需求强劲,订单可见性延长至 2023 年底.Jih Lin 提供定制的引线框架,用于处理主要 IDM 的硅基 IGBT 模块或 SiC 功率模块.
SG-8101CGA有源晶振,X1G005171004800汽车模块晶振
