ECS-P83X-16.312-AN,可编程时钟振荡器,ECS有源晶振,6G通讯晶振

频率：16.312MHz

尺寸：13.20mm x 13.20mm

ECS-P83X-16.312-AN,可编程时钟振荡器,ECS有源晶振,6G通讯晶振，美国进口晶振，ECS伊西斯晶振，型号ECS-P83X，编码为ECS-P83X-16.312-AN，频率为：16.312MHz，尺寸为：13.20mm x 13.20mm，中方型钟振，有源晶振，石英晶振，石英晶体振荡器，可编程晶振，无铅环保晶振，可编程晶体振荡器ECS-P83X系列电源电压3.3V，8针DIP是一个可编程的晶体控制振荡器。标准的8针DIP足迹是理想的现有的PC板。应用于钟表、数码产品、车载数码、手机、对讲机、数码相机、MID平板电脑，光电技术等通讯设备及各种频率控制设备。

订购热线：0755-27838351

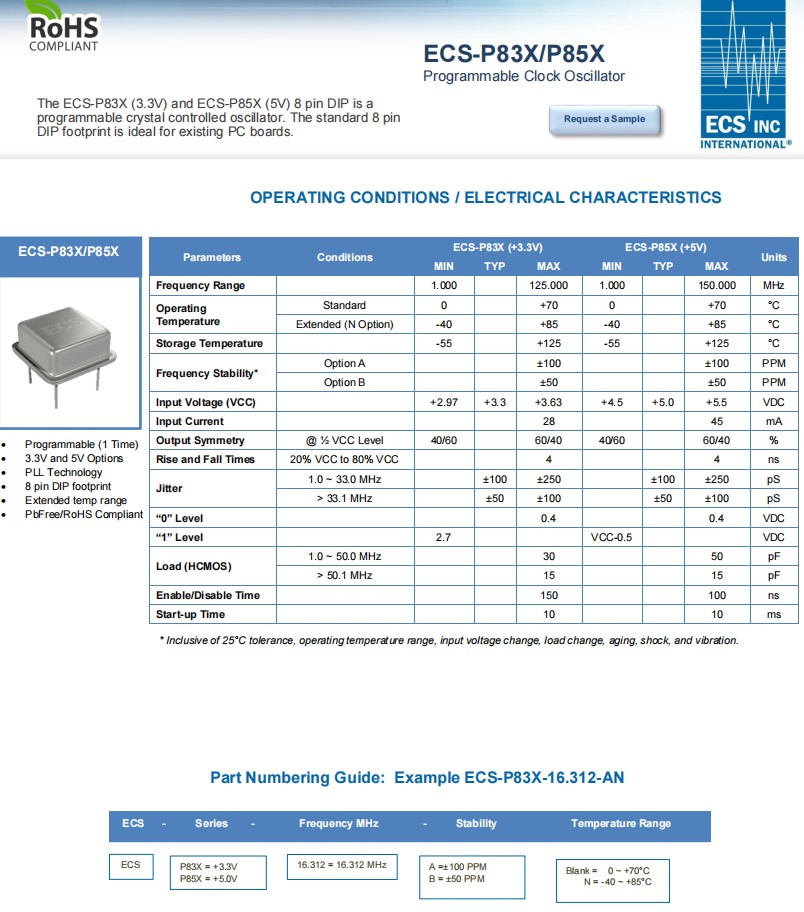

ECS-P83X-16.312-AN,可编程时钟振荡器,ECS有源晶振,6G通讯晶振，参数表

Parameters	Conditions	ECS-P83X (+3.3V)			ECS-P85X (+5V)			Units
Parameters	Conditions	MIN	TYP	MAX	MIN	TYP	MAX	Units
Frequency Range		1.000		125.000	1.000		150.000	MHz
Operating Temperature	Standard	0		+70	0		+70	°C
Operating Temperature	Extended (N Option)	--40		+85	--40		+85	°C
Storage Temperature		--55		+125	--55		+125	°C
Frequency Stability*	Option A			±100			±100	PPM
Frequency Stability*	Option B			±50			±50	PPM
Input Voltage (VCC)		+2.97	+3.3	+3.63	+4.5	+5.0	+5.5	VDC
Input Current				28			45	mA
Output Symmetry	@ ½ VCC Level	40/60		60/40	40/60		60/40	%
Rise and Fall Times	20% VCC to 80% VCC			4			4	ns
Jitter	1.0 ~ 33.0 MHz		±100	±250		±100	±250	pS
Jitter	> 33.1 MHz		±50	±100		±50	±100	pS
“0” Level				0.4			0.4	VDC
“1” Level		2.7			VCC-0.5			VDC
Load (HCMOS)	1.0 ~ 50.0 MHz			30			50	pF
Load (HCMOS)	> 50.1 MHz			15			15	pF
Enable/Disable Time				150			100	ns
Start-up Time				10			10	ms

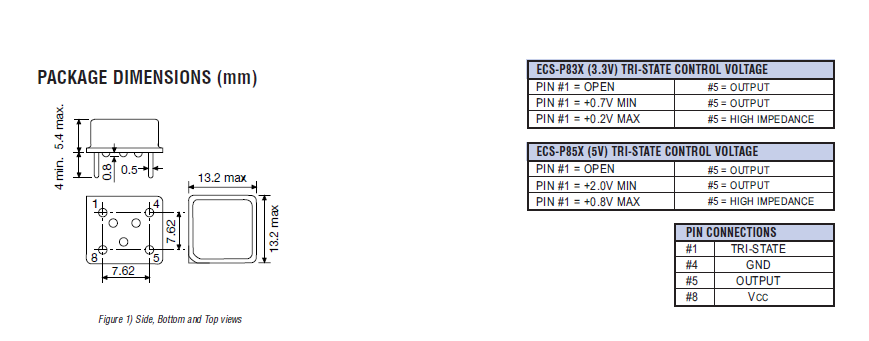

ECS-P83X-16.312-AN,可编程时钟振荡器,ECS有源晶振,6G通讯晶振，尺寸图

ECS-P83X-16.312-AN,可编程时钟振荡器,ECS有源晶振,6G通讯晶振

特征：

可编程（1次）
•3.3V和5V选项石英晶体振荡器
•PLL技术
•8引脚DIP封装
•扩展的温度范围
•无铅/符合RoHS
