爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振，日本进口晶振，EPSON爱普生株式会社，型号为：SG2520VGN，编码为：X1G0059010003，频率为：156.250000 MHz，小体积晶振尺寸为2.5x2.0x0.84mm，六脚贴片晶振，LVDS输出差分晶体振荡器。6G将以指数级的方式增加网络通信流量。6G通信网络需要高速和宽带宽，同时最小化噪声。这将通过一个高频、低抖动的参考时钟来实现的通信设备，其中将使用小形式因素的光学模块。SG2520VGN是非常流行的SG3225VEN系列的下一代，提供相同的功能组合，由于使用内部设计的IC和改进的频率容忍性能。应用于：网络设备（路由器、交换机、光模块等），蓝牙晶振，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC。

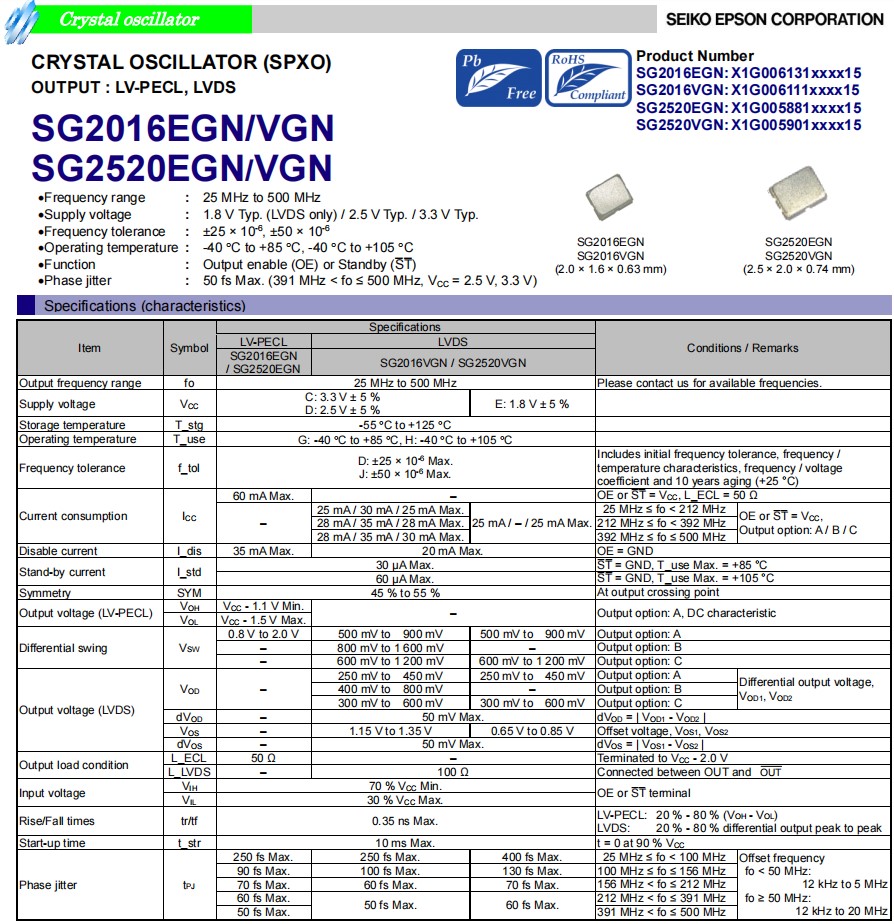

爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振，参数表
|
Item
|
Symbol
|
Specifications
|
|
|
LV-PECL
|
|
LVDS
|
Conditions / Remarks
|
|
SG2016EGN
|
SG2016VGN / SG2520VGN
|
|
|
/ SG2520EGN
|
|
|
Output frequency range
|
fo
|
25 MHz to 500 MHz
|
Please contact us for available frequencies.
|
|
Supply voltage
|
VCC
|
C: 3.3 V ± 5 % D: 2.5 V ± 5 %
|
E: 1.8 V ± 5 %
|
|
|
Storage temperature
|
T_stg
|
-55℃ to +125℃
|
|
|
Operating temperature
|
T_use
|
G: -40℃ to +85℃, H: -40℃ to +105℃
|
|
|
Frequency tolerance
|
f_tol
|
D: ±25 × 10-6 Max. J: ±50 × 10-6 Max.
|
Includes initial frequency tolerance, frequency /
|
|
temperature characteristics, frequency / voltage coefficient and 10 years aging (+25℃)
|
|
Current consumption
|
|
60 mA Max.
|
–
|
OE or S T = VCC, L_ECL = 50 Ω
|
|
ICC
|
|
25 mA / 30 mA / 25 mA Max.
|
25 mA / – / 25 mA Max.
|
25 MHz ≤ fo < 212 MHz
|
OE or ST = VCC, Output option: A / B / C
|
|
|
–
|
28 mA / 35 mA / 28 mA Max.
|
212 MHz ≤ fo < 392 MHz
|
|
|
|
28 mA / 35 mA / 30 mA Max.
|
392 MHz ≤ fo ≤ 500 MHz
|
|
Disable current
|
I_dis
|
35 mA Max.
|
20 mA Max.
|
OE = GND
|
|
Stand-by current
|
I_std
|
30 μA Max.
|
ST = GND, T_use Max. = +85℃
|
|
60 μA Max.
|
ST = GND, T_use Max. = +105℃
|
|
Symmetry
|
SYM
|
45 % to 55 %
|
At output crossing point
|
|
Output voltage (LV-PECL)
|
VOH
|
VCC - 1.1 V Min.
|
–
|
Output option: A, DC characteristic
|
|
VOL
|
VCC - 1.5 V Max.
|
|
Differential swing
|
VSW
|
0.8 V to 2.0 V
|
500 mV to 900 mV
|
500 mV to 900 mV
|
Output option: A
|
|
–
|
800 mV to 1 600 mV
|
–
|
Output option: B
|
|
–
|
600 mV to 1 200 mV
|
600 mV to 1 200 mV
|
Output option: C
|
|
|
VOD
|
|
250 mV to 450 mV
|
250 mV to 450 mV
|
Output option: A
|
Differential output voltage, VOD1, VOD2
|
|
Output voltage (LVDS)
|
–
|
400 mV to 800 mV
|
–
|
Output option: B
|
|
|
300 mV to 600 mV
|
300 mV to 600 mV
|
Output option: C
|
|
dVOD
|
–
|
50 mV Max.
|
dVOD = | VOD1 - VOD2 |
|
|
VOS
|
–
|
1.15 V to 1.35 V
|
0.65 V to 0.85 V
|
Offset voltage, VOS1, VOS2
|
|
dVOS
|
–
|
50 mV Max.
|
dVOS = | VOS1 - VOS2 |
|
|
Output load condition
|
L_ECL
|
50 Ω
|
–
|
Terminated to VCC - 2.0 V
|
|
L_LVDS
|
–
|
100 Ω
|
Connected between OUT and OUT
|
|
Input voltage
|
VIH
|
70 % VCC Min.
|
OE or ST terminal
|
|
VIL
|
30 % VCC Max.
|
|
Rise/Fall times
|
tr/tf
|
0.35 ns Max.
|
LV-PECL: 20 % - 80 % (VOH - VOL)
|
|
LVDS: 20 % - 80 % differential output peak to peak
|
|
Start-up time
|
t_str
|
10 ms Max.
|
t = 0 at 90 % VCC
|
|
Phase jitter
|
tPJ
|
250 fs Max.
|
250 fs Max.
|
400 fs Max.
|
25 MHz ≤ fo < 100 MHz
|
Offset frequency
|
|
90 fs Max.
|
100 fs Max.
|
130 fs Max.
|
100 MHz ≤ fo ≤ 156 MHz
|
fo < 50 MHz:
|
|
70 fs Max.
|
60 fs Max.
|
70 fs Max.
|
156 MHz < fo ≤ 212 MHz
|
12 kHz to 5 MHz
|
|
60 fs Max.
|
50 fs Max.
|
60 fs Max.
|
212 MHz < fo ≤ 391 MHz
|
fo ≥ 50 MHz:
|
|
50 fs Max.
|
391 MHz < fo ≤ 500 MHz
|
12 kHz to 20 MHz
|

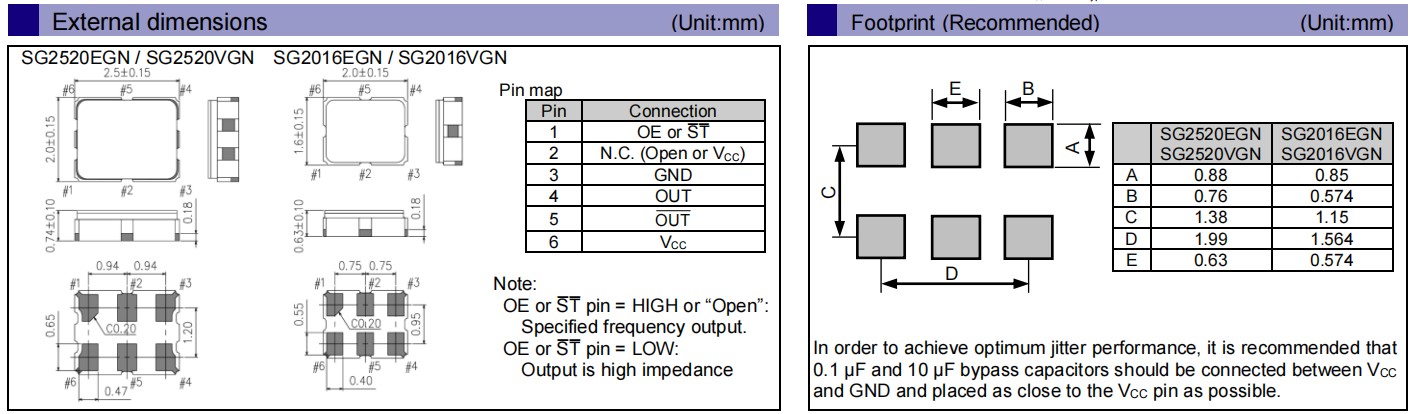

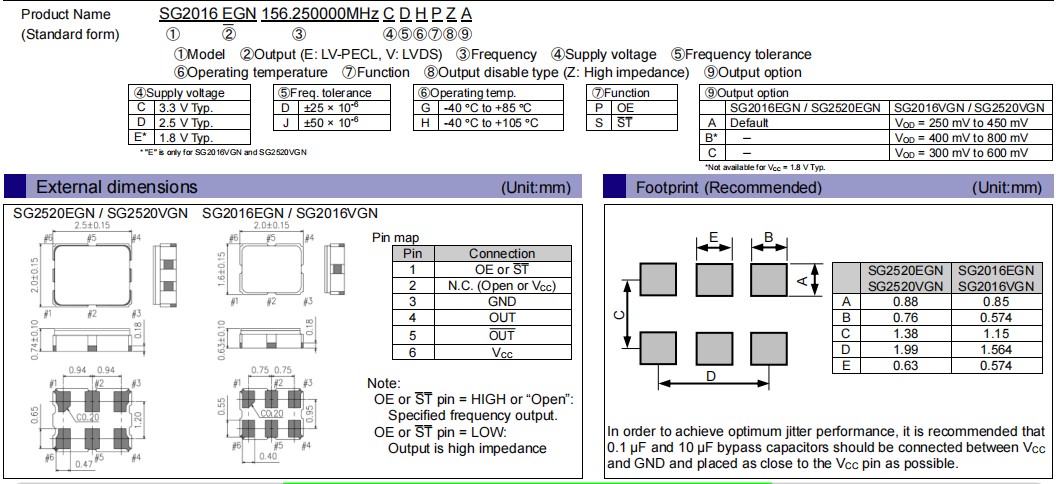

爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振，尺寸图
爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振
差分晶振有不同的输出信号,LV-PECL,LVDS,HCSL,是差分晶振通用的输出信号.一般为六脚石英贴片晶振,能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰（EMI）是高度免疫的.实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性,具有高性能,低功耗,低噪声,低抖动,低损耗等特点.被广泛用于通讯设备,机顶盒,光端机,安防设备及各种频率控制设备上.
|
石英晶体振荡器
|
型号
|
频率
|
尺寸
|
输出方式
|
电源电压
|
工作温度
|
|
X1G0059010001
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
3.135 to 3.465 V
|
-40 to 85 °C
|
|
X1G0059010002
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 85 °C
|
|
X1G0059010003
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.375 to 2.625 V
|
-40 to 85 °C
|
|
X1G0059010004
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
3.135 to 3.465 V
|
-40 to 105 °C
|
|
X1G0059010006
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.375 to 2.625 V
|
-40 to 85 °C
|
|
X1G0059010007
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 105 °C
|
|
X1G0059010008
|
SG2520VGN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.375 to 2.625 V
|
-40 to 105 °C
|
|
X1G0059410001
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
3.135 to 3.465 V
|
-40 to 85 °C
|
|
X1G0059410002
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.375 to 2.625 V
|
-40 to 85 °C
|
|
X1G0059410003
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 105 °C
|
|
X1G0059410004
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 85 °C
|
|
X1G0059410005
|
SG2520VHN
|
156.250000 MHz
|
爱普生晶振
|
LVDS
|
3.135 to 3.465 V
|
-40 to 105 °C
|
|
X1G0059410006
|
SG2520VHN
|
155.520000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
3.135 to 3.465 V
|
-40 to 85 °C
|
|
X1G0059410007
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 85 °C
|
|
X1G0059410008
|
SG2520VHN
|
174.703000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.375 to 2.625 V
|
-40 to 85 °C
|
|
X1G0059410009
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.375 to 2.625 V
|
-40 to 105 °C
|
|
X1G0059410010
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
3.135 to 3.465 V
|
-40 to 85 °C
|
|
X1G0059410011
|
SG2520VHN
|
156.250000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 85 °C
|
|
X1G0059410603
|
SG2520VHN
|
400.000000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.970 to 3.465 V
|
-40 to 85 °C
|
|
X1G0059410604
|
SG2520VHN
|
400.000000 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
2.970 to 3.465 V
|
-40 to 85 °C
|
|
X1G0059410605
|
SG2520VHN
|
467.529297 MHz
|
2.50 x 2.00 x 0.84 mm
|
LVDS
|
1.710 to 1.890 V
|
-40 to 85 °C
|
