KX-13,Geyer格耶石英晶体谐振器,KX-13T晶体,7050mm晶振

频率：6.0MHz~160.0MHz

尺寸：7.0x5.0x1.0mm

KX-13,Geyer格耶石英晶体谐振器,KX-13T晶体,7050mm晶振，丹麦进口晶振，Geyer格耶电子晶振，型号：KX-13系列晶振，频率为：6.0MHz~160.0MHz，小体积晶振尺寸：7.0x5.0x1.0mm封装，四脚贴片晶振，无源晶振，石英贴片晶振，SMD晶振，石英晶体谐振器，7050晶振，无铅环保晶振，工作温度范围：-40℃~+85℃ (KX-13T)，-40℃~+105℃ (KX-13E)，-40℃~+125℃ (KX-13F)。具有超小型，轻薄型，高精度，高可靠性，高性能，高品质，耐热及耐环境等特点。被广泛应用于：移动通讯设备，无线网络，蓝牙晶振，物联网，平板电脑，安防设备，医疗设备，汽车电子，游戏机设备，数码电子，智能家居，数码电子等应用。

订购热线：0755-27838351

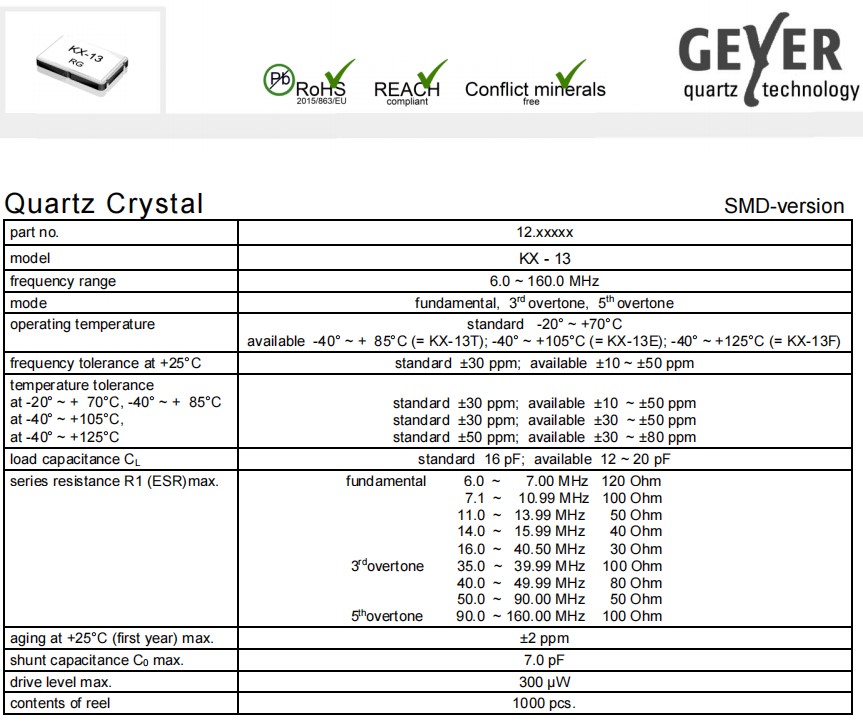

KX-13,Geyer格耶石英晶体谐振器,KX-13T晶体,7050mm晶振,参数表

part no.	12.xxxxx
model	KX - 13
frequency range	6.0 ~ 160.0 MHz
mode	fundamental, 3rd overtone, 5th overtone
operating temperature	standard -20° ~ +70°C available -40° ~ + 85°C (= KX- 13T) -40° ~ +105°C (= KX- 13E) -40° ~ +125°C (= KX- 13F)
frequency tolerance at +25°C	standard ±30 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ + 70°C, -40° ~ + 85°C at -40° ~ +105°C, at -40° ~ +125°C	standard ±30 ppm; available ±10 ~ ±50 ppm standard ±30 ppm; available ±30 ~ ±50 ppm standard ±50 ppm; available ±30 ~ ±80 ppm
load capacitance CL	standard 16 pF; available 12 ~ 20 pF
series resistance R1 (ESR)max.	fundamental 3rdovertone 5thovertone	6.0 ~ 7.00 MHz 7.1 ~ 10.99 MHz 11.0 ~ 13.99 MHz 14.0 ~ 15.99 MHz 16.0 ~ 40.50 MHz 35.0 ~ 39.99 MHz 40.0 ~ 49.99 MHz 50.0 ~ 90.00 MHz 90.0 ~ 160.00 MHz	120 100 50 40 30 100 80 50 100	Ohm Ohm Ohm Ohm Ohm Ohm Ohm Ohm Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	7.0 pF
drive level max.	300 µW
contents of reel	1000 pcs.

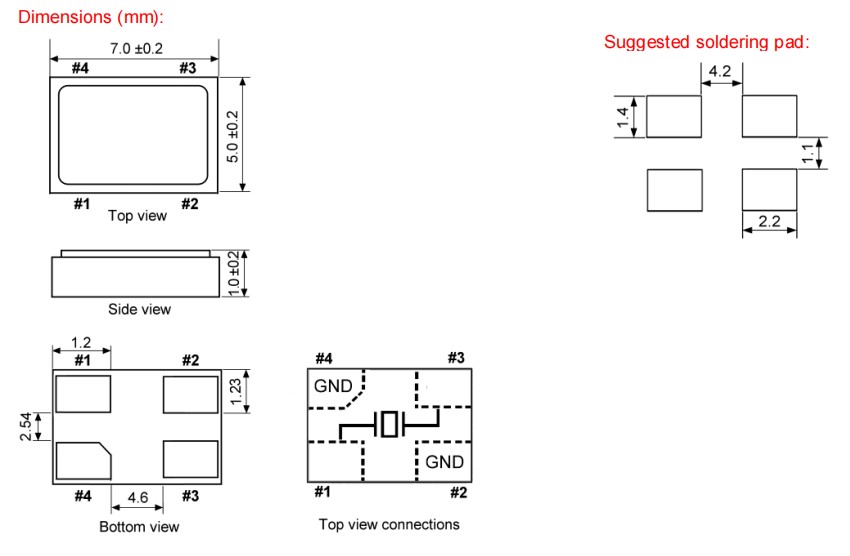

KX-13,Geyer格耶石英晶体谐振器,KX-13T晶体,7050mm晶振,尺寸图

编码	品牌	石英晶体谐振器	型号	频率	频率温度性
12.85536	Geyer格耶	CYSTAL 40.0MHZ 8PF SMD	KX-5T	40 MHz	±20ppm
12.84816	Geyer格耶	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm
12.88722	Geyer格耶	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm
12.84805	Geyer格耶	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±30ppm
12.86509	Geyer格耶	Cystal 48.0Mhz 10pF SMD	KX-6	48 MHz	±50ppm
12.8902	Geyer格耶	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm
12.84813	Geyer格耶	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±15ppm
12.60233	Geyer格耶	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm
12.85515	Geyer格耶	CYSTAL 27.0MHZ 8PF SMD	KX-5	27 MHz	±50ppm
12.86544	Geyer格耶	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm
12.85547	Geyer格耶	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm
12.8919	Geyer格耶	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm
12.85562	Geyer格耶	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm
12.60208	Geyer格耶	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm
12.86531	Geyer格耶	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm
12.88664	Geyer格耶	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm
12.89495	Geyer格耶	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm
12.89103	Geyer格耶	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm
12.887	Geyer格耶	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm
12.89131	Geyer格耶	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm
12.86512	Geyer格耶	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm
12.89126	Geyer格耶	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm
12.8655	Geyer格耶	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm
12.86526	Geyer格耶	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm
12.6009	Geyer格耶	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm
12.88701	Geyer格耶	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm
12.88493	Geyer格耶	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm
12.85521	Geyer格耶	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm
12.89078	Geyer格耶	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm
12.86517	Geyer格耶	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm
12.84812	Geyer格耶	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm
12.88508	Geyer格耶	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm
12.88711	Geyer格耶	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm
12.85519	Geyer格耶	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm
12.89027	Geyer格耶	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm
12.85539	Geyer格耶	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm
12.88721	Geyer格耶	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm
12.88667	Geyer格耶	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm
12.85517	Geyer格耶	CYSTAL 54.0MHZ 8PF SMD进口晶振	KX-5T	54 MHz	±100ppm
12.89017	Geyer格耶	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm
12.89082	Geyer格耶	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm
12.60075	Geyer格耶	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm
12.89155	Geyer格耶	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm
12.88522	Geyer格耶	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm
12.88752	Geyer格耶	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm
12.85569	Geyer格耶	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm
12.88565	Geyer格耶	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm
12.85538	Geyer格耶	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm
12.86533	Geyer格耶	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm
12.89209	Geyer格耶	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm
12.8652	Geyer格耶	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm
12.86574	Geyer格耶	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm
12.85541	Geyer格耶	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm
12.84818	Geyer格耶	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm
12.86527	Geyer格耶	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm
12.85534	Geyer格耶	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm
12.86505	Geyer格耶	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm
12.60024	Geyer格耶	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm
12.84803	Geyer格耶	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm
12.85518	Geyer格耶	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm
12.8873	Geyer格耶	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm
12.86556	Geyer格耶	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm
12.88643	Geyer格耶	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm
12.86511	Geyer格耶	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm
12.88523	Geyer格耶	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm
12.89288	Geyer格耶	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm
12.86536	Geyer格耶	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm
12.89029	Geyer格耶	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm
12.88799	Geyer格耶	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm
12.8481	Geyer格耶	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm
12.84814	Geyer格耶	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm
12.88756	Geyer格耶	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm
12.8556	Geyer格耶	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm
12.86561	Geyer格耶	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm
12.8877	Geyer格耶	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm
12.86564	Geyer格耶	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm
12.86592	Geyer格耶	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm
12.87159	Geyer格耶	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87163	Geyer格耶	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm
12.87151	Geyer格耶	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.8717	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-
12.87148	Geyer格耶	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87106	Geyer格耶	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm
12.8716	Geyer格耶	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm
12.87143	Geyer格耶	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.84801	Geyer格耶	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm
12.8718	Geyer格耶	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm
12.87147	Geyer格耶	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-
12.87081	Geyer格耶	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87149	Geyer格耶	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87156	Geyer格耶	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87154	Geyer格耶	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87174	Geyer格耶	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	32.768 kHz	-0.036ppm
12.87114	Geyer格耶	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	32.768 kHz	-0.034ppm, ±0.006ppm
12.8715	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87181	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	32.768 kHz	-0.03ppm
12.60023	Geyer格耶	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm
12.85559	Geyer格耶	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm
