91SMX,LFXTAL003003REEL,32.768KHz,IQD品牌,陶瓷晶振

频率：32.768KHz

尺寸：10.41x4.06x3.56mm

91SMX,LFXTAL003003REEL,32.768KHz,IQD品牌,陶瓷晶振，英国进口晶振，伊克德晶振，IQD晶振，型号：91SMX，编码为：LFXTAL003003REEL，频率为：32.768KHz，频率公差：±20ppm，负载电容：12.5pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：10.41x4.06x3.56mm，两脚贴片晶振，陶瓷晶振，无源晶振，SMD晶振，石英晶体谐振器，贴片石英晶振，石英水晶振动子，无铅晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，耐热及耐环境特点。适用于：实时时钟应用程序，无线网络晶振，物联网晶振，智能仪表晶振，汽车电子晶振，智能家居等应用。

订购热线：0755-27838351

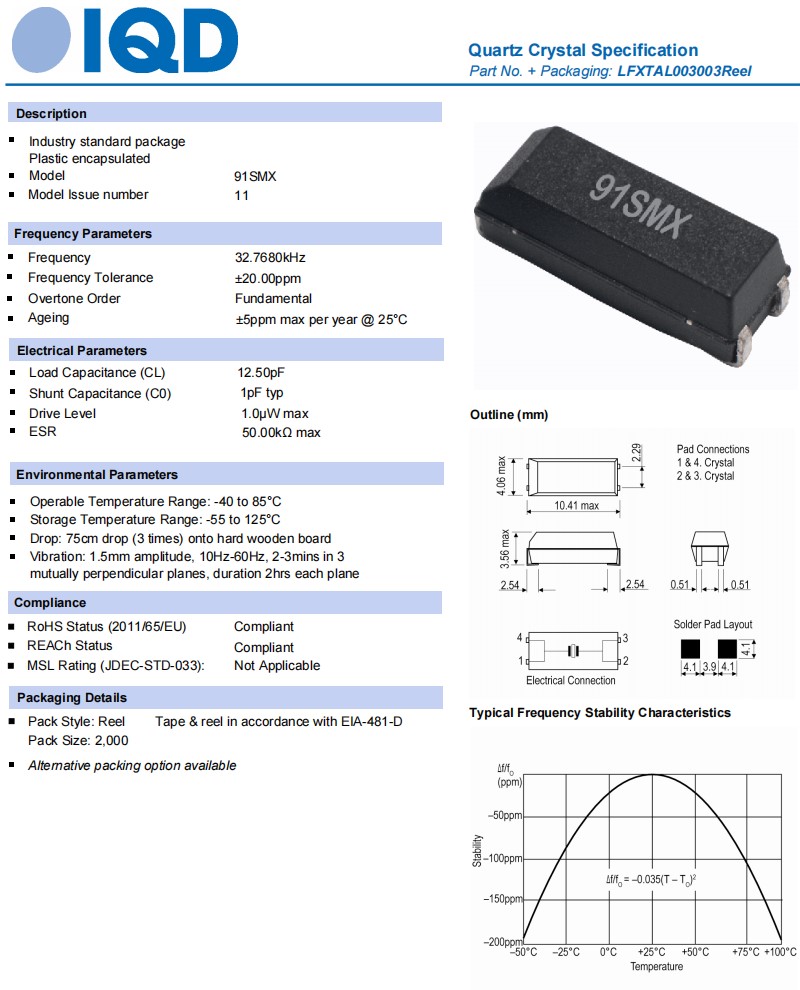

91SMX,LFXTAL003003REEL,32.768KHz,IQD品牌,陶瓷晶振,参数表

Frequency	32.7680kHz
Frequency Tolerance	±20.00ppm
Overtone Order	Fundamental
Ageing	±5ppm max per year @ 25°C
Load Capacitance (CL)	12.50pF
Shunt Capacitance (C0)	1pF typ
Drive Level	1.0 μW max
ESR	50.00kΩ max
Operable Temperature Range:	-40℃ to 85℃
Storage Temperature Range:	-55℃ to 125℃

91SMX,LFXTAL003003REEL,32.768KHz,IQD品牌,陶瓷晶振,尺寸图

进口晶振	制造商	系列	描述	频率	频率容差	负载电容
LFXTAL059597REEL	IQD晶振	IQXC-42	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±15ppm	10pF
LFXTAL081613REEL	IQD晶振	IQXC-26	CRYSTAL 32.0000MHZ 8PF SMD	32 MHz	±10ppm	8pF
LFXTAL084882REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz	±20ppm	12.5pF
LFXTAL073170REEL	IQD晶振	IQXC-42	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±10ppm	10pF
LFXTAL082076REEL	IQD晶振	CFPX-180	CRYSTAL 32.0000MHZ 8PF SMD	32 MHz	±10ppm	8pF
LFXTAL069526REEL	IQD晶振	IQXC-26	CRYSTAL 32.0000MHZ 8PF SMD	32 MHz	±15ppm	8pF
LFXTAL082129REEL	IQD晶振	IQXC-42	CRYSTAL 32.0000MHZ 8PF SMD	32 MHz	±10ppm	8pF
LFXTAL051643REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz	±20ppm	9pF
LFXTAL078382REEL	IQD晶振	CFPX-180	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±10ppm	10pF
LFXTAL071262REEL	IQD晶振	IQXC-42 AUTO	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±10ppm	10pF
LFXTAL050789REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL060258REEL	IQD晶振	CFPX-180	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±30ppm	10pF
LFXTAL061677REEL	IQD晶振	CFPX-180	CRYSTAL 32.0000MHZ 12PF SMD	32 MHz	±50ppm	12pF
LFXTAL078207REEL	IQD晶振	CFPX-218	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±10ppm	10pF
LFXTAL084883REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz	±20ppm	9pF
LFXTAL069390REEL	IQD晶振	CFPX-218	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±20ppm	10pF
LFXTAL066198REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz	±20ppm	9pF
LFXTAL009678REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL084884REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz	±20ppm	7pF
LFXTAL084885REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz	±20ppm	6pF
LFXTAL073264REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	4pF
LFXTAL059535REEL	IQD晶振	CFPX-104	CRYSTAL 32.0000MHZ 18PF SMD	32 MHz	±20ppm	18pF
LFXTAL059461REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz	±20ppm	7pF
LFXTAL062558REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz	±10ppm	9pF
LFXTAL069377REEL	IQD晶振	CFPX-180	CRYSTAL 32.0000MHZ 18PF SMD	32 MHz	±20ppm	18pF
LFXTAL065455REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL059535BULK	IQD晶振	CFPX-104	CRYSTAL 32.0000MHZ 18PF SMD	32 MHz	±20ppm	18pF
LFXTAL025159REEL	谐振器	CFPX-56	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL002996BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz	±15ppm	12.5pF
LFXTAL025159BULK	IQD晶振	CFPX-56	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz	±20ppm	12.5pF
LFXTAL014219BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 6PF TH	32.768 kHz	±20ppm	6pF
LFXTAL002995BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz	±20ppm	12.5pF
LFXTAL002997BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz	±20ppm	12.5pF
LFXTAL035522REEL	IQD晶振	CFPX-180	CRYSTAL 32.0000MHZ 9PF SMD	32 MHz	±10ppm	9pF
LFXTAL016178REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL003000REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL050632REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±10ppm	6pF
LFXTAL066431REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz	±20ppm	7pF
LFXTAL054236REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL009709REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz	±20ppm	7pF
LFXTAL009706REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz	±20ppm	9pF
LFXTAL065253REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL066834REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±10ppm	12.5pF
LFXTAL003000BULK	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL016178BULK	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL015822REEL	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL003003REEL	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL003004REEL	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL010193REEL	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL010193BULK	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL003003BULK	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
LFXTAL059701REEL	IQD晶振	CFPX-104	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±10ppm	10pF
LFXTAL078207RL3K	IQD晶振	CFPX-218	CRYSTAL 32.0000MHZ 10PF SMD	32 MHz	±10ppm	10pF
LFXTAL015822BULK	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz	±20ppm	6pF
LFXTAL003004BULK	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	±20ppm	12.5pF
