LFXTAL009678REEL,CFPX-217,32.768KHz,3215mm,IQD晶振

频率：32.768KHz

尺寸：3.2x1.5x0.9mm

LFXTAL009678REEL,CFPX-217,32.768KHz,3215mm,IQD晶振，IQD晶振，伊克德晶振，英国进口晶振，型号：CFPX-217，编码为：LFXTAL009678REEL，负载电容：12.5pF，频率公差：±20ppm，频率为：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.9mm，音叉晶体，两脚贴片晶振，无源晶振，3215晶振，石英晶振，SMD晶振，石英晶体谐振器，石英水晶振动子，无铅晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，耐热及耐环境特点。应用于：实时时钟应用程序，无线蓝牙晶振，智能仪表晶振，数字显示晶振，智能家居等应用。

订购热线：0755-27838351

LFXTAL009678REEL,CFPX-217,32.768KHz,3215mm,IQD晶振,参数表

Frequency	32.768kHz
Frequency Tolerance	±20.00ppm
Tolerance Condition	@ 25℃ ±5℃
Ageing	±3ppm max in 1st year @ 25℃
Typical Frequency Stability Coefficient:	-0.03ppm/°C² ±0.01ppm/°C²
Load Capacitance (CL)	6.0pF to 12.5pF
Shunt Capacitance (C0)	1.0pF typical
Drive Level	0.1µW typ, 1µW max
Motional Capacitance (C1):	1.9fF typ
Storage Temperature Range:	-55℃ to 125℃

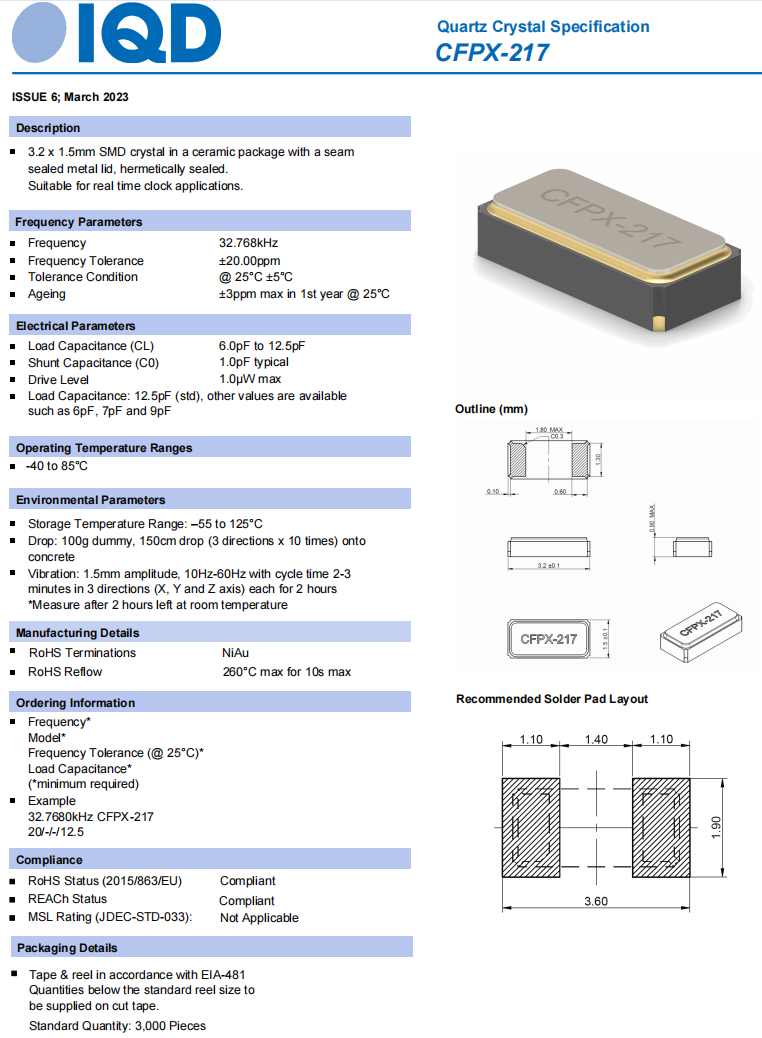

LFXTAL009678REEL,CFPX-217,32.768KHz,3215mm,IQD晶振,尺寸图

制造商零件编码	制造商	系列	描述	频率
LFXTAL084882REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL051643REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL050789REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL084883REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL066198REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL009678REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL084884REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL084885REEL	IQD晶振	IQXC-217	32.7680KHZ CRYSTAL IQXC-217	32.768 kHz
LFXTAL073264REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL059461REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz
LFXTAL062558REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL065455REEL	IQD晶振	IQXC-25	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL025159REEL	IQD晶振	CFPX-56	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL002996BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768k晶振
LFXTAL025159BULK	IQD晶振	CFPX-56	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL014219BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 6PF TH	32.768 kHz
LFXTAL002995BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL002997BULK	IQD晶振	WATCH	CRYSTAL 32.7680KHZ 12.5PF TH	32.768 kHz
LFXTAL016178REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003000REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL050632REEL	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL066431REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz
LFXTAL054236REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL009709REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 7PF SMD	32.768 kHz
LFXTAL009706REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 9PF SMD	32.768 kHz
LFXTAL065253REEL	IQD晶振	IQXC-90	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL066834REEL	IQD晶振	CFPX-217	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL003000BULK	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL016178BULK	IQD晶振	85SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL015822REEL	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003003REEL	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL003004REEL	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL010193REEL	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL010193BULK	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003003BULK	IQD晶振	91SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
LFXTAL015822BULK	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 6PF SMD	32.768 kHz
LFXTAL003004BULK	IQD晶振	90SMX	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz
