A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振

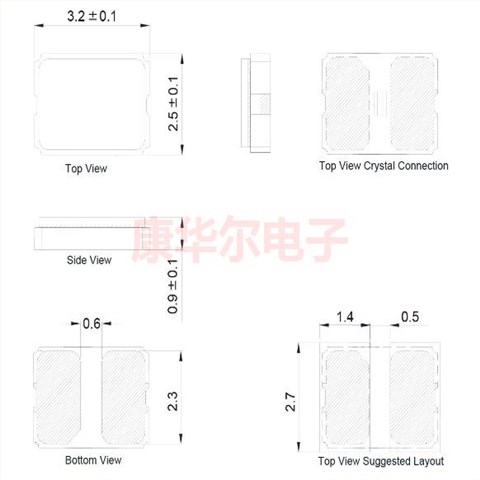

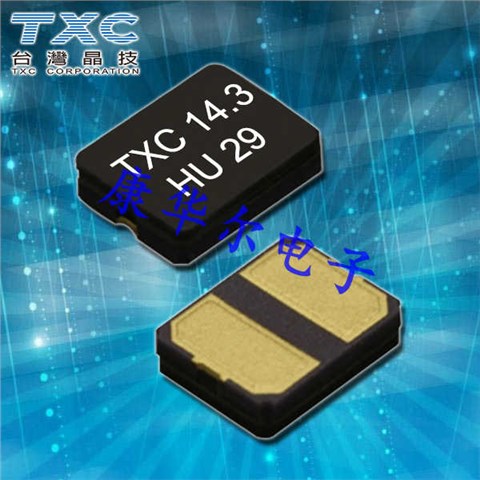

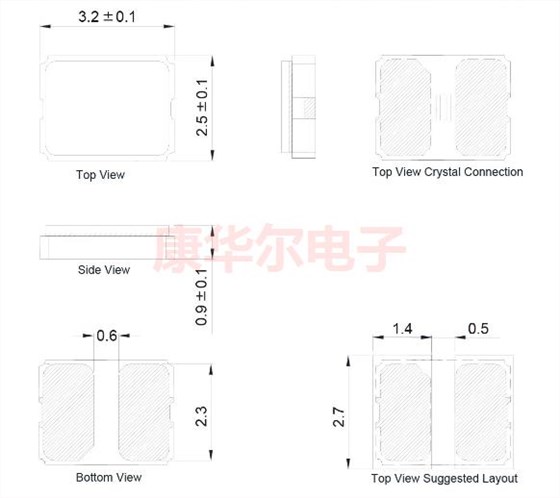

A316000006是台湾TXC晶技原厂A3系列耐高温陶瓷贴片晶振,标准3.2*2.5mm晶体两引脚无源封装,搭载高强度黑色陶瓷密闭壳体,热稳定性能远超普通塑封晶振.产品采用原厂AT切割石英晶片,工作温域覆盖-40℃至125℃极限区间,完美适配高温回流焊工艺,无惧车间高温焊接冲击.频率稳定度可选±15~±50ppm,等效串联电阻低,振荡损耗小,抗温漂,抗湿热老化.台企标准化产线生产,符合RoHS无铅环保规范,广泛用于工业控制器,高温传感设备,户外物联网网关,原厂货源稳定,批量供货适配各类严苛高温工况电路时钟方案.
A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振
| 品牌 | TXC |
| 编码 | A316000006 |
| 型号 | A3 |
| 频率 | 16M |
| 精度 | ±20ppm |
| 负载 | 8PF |
| 尺寸 | 3225mm |
| 工作温度 | −40℃ ～ +125℃ |
A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振
