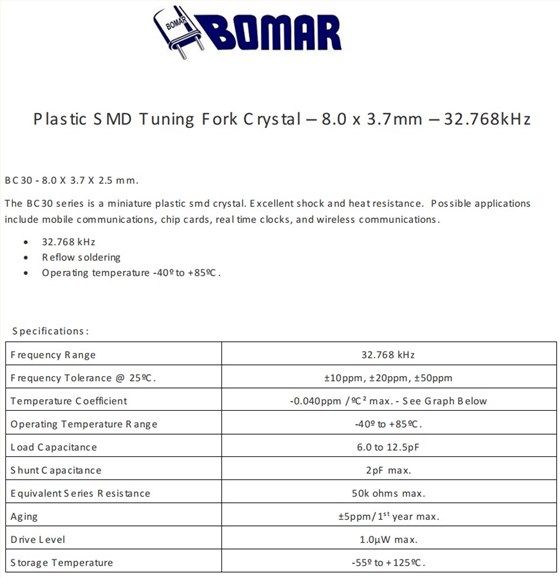

BC30,BC30CCI112.5-32.768K,8038mm,Bomar仪器仪表晶振，美国进口晶振，Bomar博马尔晶振，型号：BC30，编码为：BC30CCI112.5-32.768K，精度：±20ppm，频率稳定性：±20ppm，负载：12.5pF，工作温度范围：-40℃至+85℃，频率为：32.768K晶振，小体积晶振尺寸：8.0x3.7x2.5mm陶瓷封装，四脚贴片晶振，无源晶振，8038晶振，石英晶体谐振器，无铅环保晶振，SMD石英晶体。具有超小型，轻薄型，良好的抗冲击性和耐热性。石英晶振，应用程序包括：实时时钟晶振，移动通信晶振、芯片卡晶振、无线通信晶振，钟表电子晶振，电脑主板晶振等应用。
BC30,BC30CCI112.5-32.768K,8038mm,Bomar仪器仪表晶振,参数表
Frequency Range
32.768 kHz
Frequency Tolerance @ 25ºC.
±10ppm, ±20ppm, ±50ppm
Temperature Coefficient
-0.040ppm / ºC² max. - See Graph Below
Operating Temperature Range
-40º to +85ºC.
Load Capacitance
6.0 to 12.5pF
Shunt Capacitance
2pF max.
Equivalent Series Resistance
50k ohms max.
Aging
±5ppm/ 1styear max.
Drive Level
1.0µW max.
Storage Temperature
-55º to +125ºC.

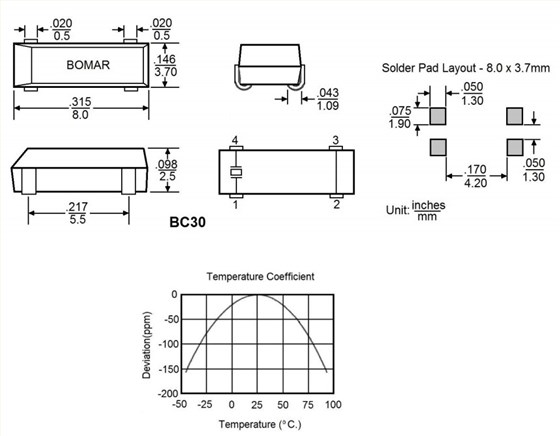

BC30,BC30CCI112.5-32.768K,8038mm,Bomar仪器仪表晶振,尺寸图
