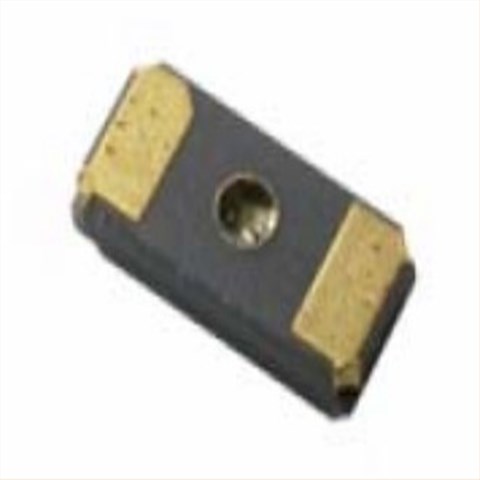

1610mm,F1610‐20‐12.5,32.768KHz,FCD-Tech无线应用晶振,荷兰进口晶振,FCD-Tech晶振,型号:F1610系列,编码为:F1610‐20‐12.5,精度±20ppm,负载电容12.5pF,频率为:32.768KHz,工作温度范围:-40℃至+85℃,小体积晶振尺寸:1.6x1.0x0.5mm陶瓷SMD封装,32.768K音叉晶体,无源晶振,两脚贴片晶振,手表水晶,SMD石英晶体,石英晶体谐振器,无铅晶振。具有超小型,轻薄型,高性能,高品质,耐热及耐环境,优良的老化特性。被广泛应用于:通讯设备晶振,无线应用晶振,时钟晶振,可穿戴设备晶振,钟表电子晶振,仪器仪表设备,商业和工业设备等应用。
1610mm,F1610‐20‐12.5,32.768KHz,FCD-Tech无线应用晶振,产品特点:
微型陶瓷SMD封装,2个焊盘(可回流)
温度范围-40/+85°C(工业应用)
业界最小的32.768KHz封装,优异的老化特性

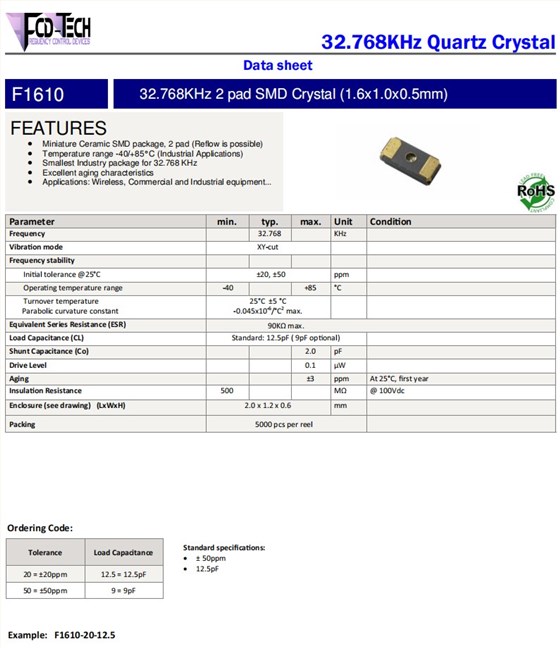

1610mm,F1610‐20‐12.5,32.768KHz,FCD-Tech无线应用晶振,参数表
Parameter
min.
typ.
max.
Unit
Condition
Frequency
32.768
KHz
Vibration mode
XY‐cut
Frequency stability
Initial tolerance @25°C
±20, ±50
ppm
Operating temperature range
‐40
+85
°C
Turnover temperature
Parabolic curvature constant
25°C±5 °C
‐0.045x10‐6/°C2max.
Equivalent Series Resistance (ESR)
90KΩmax.
Load Capacitance (CL)
Standard: 12.5pF ( 9pF optional)
Shunt Capacitance (Co)
2.0
pF
Drive Level
0.1
µW
Aging
±3
ppm
At 25°C,first year
Insulation Resistance
500
MΩ
@ 100Vdc
Enclosure (see drawing)(LxWxH)
2.0 x 1.2 x 0.6
mm
Packing
5000 pcs per reel

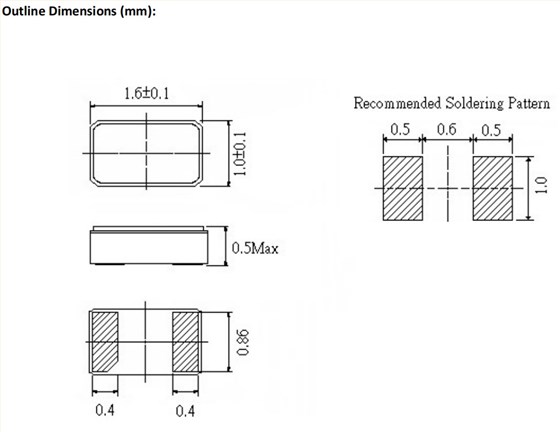

1610mm,F1610‐20‐12.5,32.768KHz,FCD-Tech无线应用晶振,尺寸图
