32.768KHz,石英谐振器,12.5pF,KX-327NHT晶振,12.87145,GEYER进口晶振,3215晶体
KX-327NHT晶振中编码为12.87145的晶振，是GEYER进口晶振，尺寸为3.2×1.5×0.8mm，也叫3215晶振。该晶振的频率为32.768KHz，也叫32.768K晶振，负载电容是12.5pF，频率公差为±20ppm，工作温度是-40~85度。该3215贴片晶振产品体积小型，厚度薄，外观是采用金属面两脚编封装，一般也称呼为石英谐振器，具备充分的封密性能，小型的贴片晶振是市场上的首选，符合欧盟环保 ROHS 标准，满足无铅高温回流焊接曲线要求。
32.768KHz,石英谐振器,12.5pF,KX-327NHT晶振,12.87145,GEYER进口晶振,3215晶体
| 品牌 | GEYER |
| 编码 | 12.87145 |
| 型号 | KX-327NHT |
| 频率 | 32.768KHz |
| 精度 | ±20ppm |
| 负载 | 12.5pF |

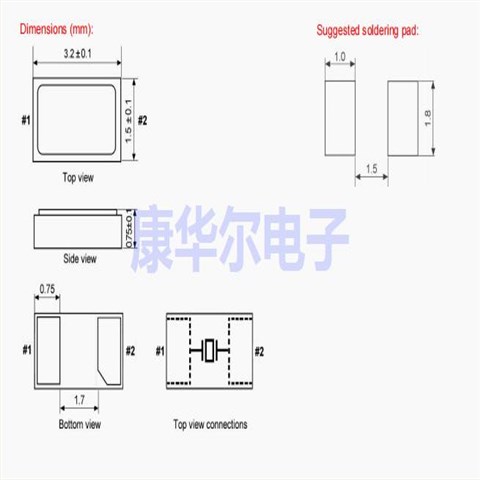

| 尺寸 | 3.2×1.5×0.8mm |
| 工作温度 | -40℃~85℃ |
332.768KHz,石英谐振器,12.5pF,KX-327NHT晶振,12.87145,GEYER进口晶振,3215晶体
更多相关晶振参考
| 编码 | 品牌 | 型号 | 尺寸 | 频率 | 负载 |
| 12.87000 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 12.5pF |
| 12.87001 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 9pF |
| 12.87002 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 7pF |
| 12.87034 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 4pF |
| 12.87080 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87081 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87083 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87086 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87090 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87095 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87105 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87107 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87109 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12pF |
| 12.87110 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87111 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87112 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87113 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87114 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87115 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87116 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87118 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87119 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87120 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87121 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87123 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87126 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87127 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87128 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87129 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87130 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87131 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87132 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87133 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87134 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87135 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87136 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87137 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 9pF |
| 12.87138 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87139 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87143 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87144 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87145 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768KHz | 12.5pF |
| 12.87146 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87147 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87148 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87149 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87150 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87151 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87152 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87153 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87155 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87157 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87158 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87159 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87160 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87161 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87163 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 7pF |
| 12.87164 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87165 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87166 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87167 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87168 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87169 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87170 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87171 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87172 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 9pF |
| 12.87173 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 9pF |
| 12.87174 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87175 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87176 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87177 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87178 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 4pF |
| 12.87180 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87181 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87182 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87183 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87186 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87187 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 6pF |
| 12.87188 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
