FC3VREEDM48.0-T1,FOX超小型晶振,3225mm,石英水晶振动子，美国进口晶振，FOX晶振，福克斯晶振，型号：FC3VR，编码为：FC3VREEDM48.0-T1，频率为：48MHz，频率稳定性：±20ppm，频率容差：±20ppm，负载电容：8pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x2.5x0.8mm封装，抗振动晶体，四脚贴片晶振，石英晶振，无源晶振，石英水晶振动子，3225晶振。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。被广泛应用于：通讯设备晶振，汽车电子晶振，无线蓝牙晶振，数码电子晶振，安防设备等应用。

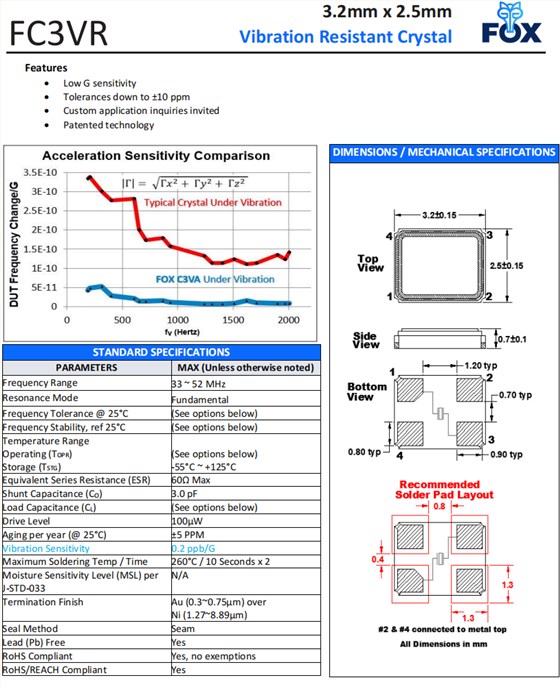

FC3VREEDM48.0-T1,FOX超小型晶振,3225mm,石英水晶振动子,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
48MHz
Resonance Mode
Fundamental
Frequency Tolerance @ 25°C
(See options below)
Frequency Stability, ref 25°C
(See options below)
Temperature Range
Operating (TOPR)
Storage (TSTG)
(See options below)
-55°C ~ +125°C
Equivalent Series Resistance (ESR)
60Ω Max
Shunt Capacitance (CO)
3.0 pF
Load Capacitance (CL)
(See options below)
Drive Level
100µW
Aging per year (@ 25°C)
±5 PPM
Vibration Sensitivity
0.2 ppb/G
Maximum Soldering Temp / Time
260°C / 10 Seconds x 2
Moisture Sensitivity Level (MSL) per
J-STD-033
N/A
Termination Finish
Au (0.3~0.75µm) over
Ni (1.27~8.89µm)
Seal Method
Seam
Lead (Pb) Free
Yes
RoHS Compliant
Yes, no exemptions
RoHS/REACH Compliant
Yes

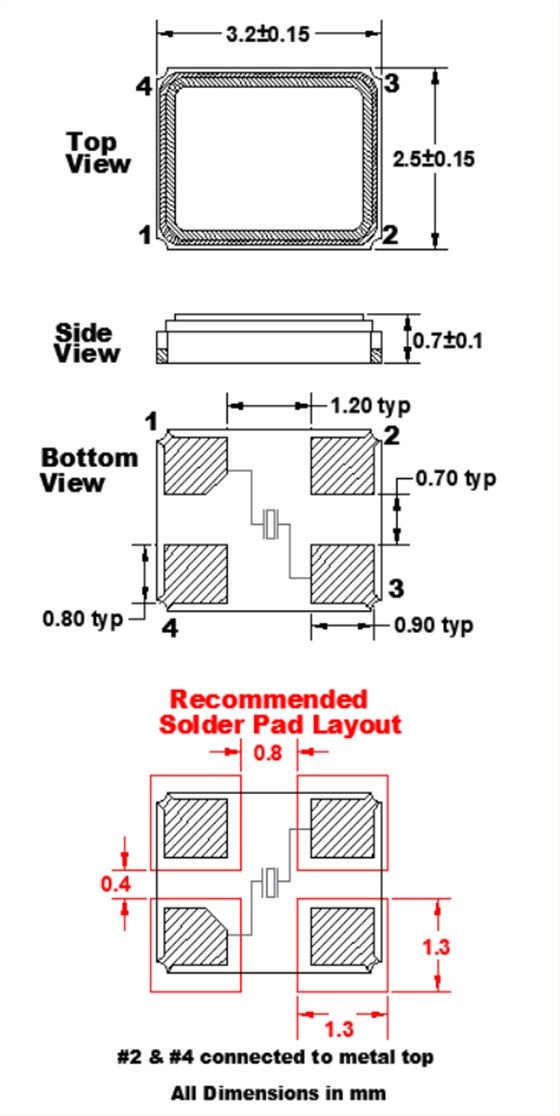

FC3VREEDM48.0-T1,FOX超小型晶振,3225mm,石英水晶振动子,尺寸图
| 产品编码 | 晶振厂家 | 型号 | 频率 | 频率稳定性 | 频率容差 | 负载电容 |
| FC3BSBBEM26.0-T3 | Fox晶振 | FC3BS | 26 MHz | ±50ppm | ±50ppm | 10 pF |
| FC3BSBBLM25.0-T3 | Fox晶振 | FC3BS | 25 MHz | ±50ppm | ±50ppm | 18 pF |
| FC3BSBBMM25.0-T3 | Fox晶振 | FC3BS | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BSHFEM12.0-T3 | Fox晶振 | FC3BS | 12 MHz | ±15ppm | ±10ppm | 10 pF |
| FC3BSHHEF26.0-T3 | Fox晶振 | FC3BS | 26 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHHEF32.0-T3 | Fox晶振 | FC3BS | 32 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHLGA27.0-1-T3 | Fox晶振 | FC3BS | 27 MHz | ±5ppm | ±10ppm | 12 pF |
| FC3VAEEGM50.0-T3 | Fox晶振 | FC3VA | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEDM38.4-T1 | Fox晶振 | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM38.88-T1 | Fox晶振 | FC3VR | 38.88 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM40.0-T1 | Fox晶振 | FC3VR | 40 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM48.0-T1 | Fox晶振 | FC3VR | 48 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEEM38.4-T1 | Fox晶振 | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 10 pF |
| FC3VREEGM36.0-T1 | Fox晶振 | FC3VR | 36 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.4-T1 | Fox晶振 | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.88-T1 | Fox晶振 | FC3VR | 38.88 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM40.0-T1 | Fox晶振 | FC3VR | 40 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM50.0-T1 | Fox晶振 | FC3VR | 50 MHz | ±20ppm | ±20ppm | 12 pF |
