HE-MCC-21-32.768K-12.5,2012mm,32.768KHz,HEC音叉晶体,美国进口晶振,HEC晶振,编码为:HE-MCC-21-32.768K-12.5,频率:32.768KHz,负载电容:12.5pF,紧密公差:±20ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:2.0x1.2mm封装,两脚贴片晶振,音叉晶体,石英晶振,无源晶振,SMD晶振,石英晶体谐振器,2012晶振。具有超小型,轻薄型,高性能,高品质,耐热及耐环境等特点。应用于:智能穿戴设备晶振,通讯设备晶振,时钟晶振,平板电脑晶振,数字显示晶振,数码电子等应用。
HE-MCC-21-32.768K-12.5,2012mm,32.768KHz,HEC音叉晶体,产品特点:
•绝缘电阻:最小500MΩ@直流100V
•温度系数:-0.034±0.006ppm/℃²
•符合ROHS

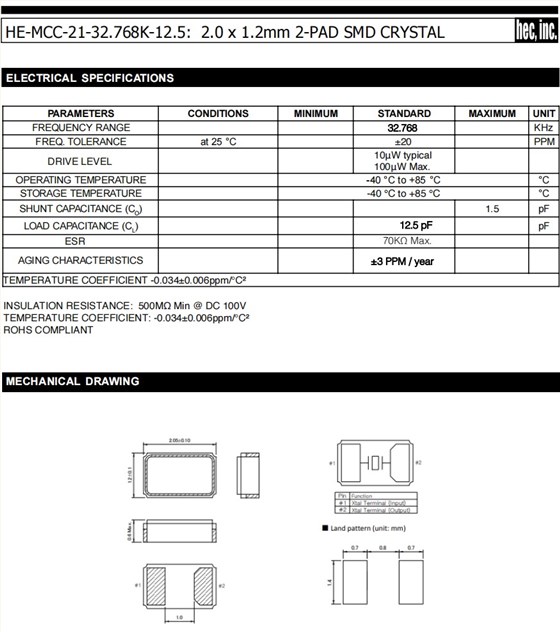

HE-MCC-21-32.768K-12.5,2012mm,32.768KHz,HEC音叉晶体,参数表
PARAMETERS | CONDITIONS | MINIMUM | STANDARD | MAXIMUM | UNIT | |
FREQUENCY RANGE | |
|
32.768 | |
KHz | |
FREQ. TOLERANCE | at 25 °C | |
±20 | |
PPM | |
DRIVE LEVEL | |
|
10μW typical 100μW Max. |
|
|
|
OPERATING TEMPERATURE | |
-40 °C to +85 °C | °C | |||
STORAGE TEMPERATURE | |
-40 °C to +85 °C | °C | |||
SHUNT CAPACITANCE (CO) | |
|
|
1.5 | pF | |
LOAD CAPACITANCE (CL) | |
|
12.5 pF | |
pF | |
ESR | |
|
70KΩMax. | |
|
|
AGING CHARACTERISTICS | |
|
±3 PPM / year | |
|
|
TEMPERATURE COEFFICIENT -0.034±0.006ppm/℃² |

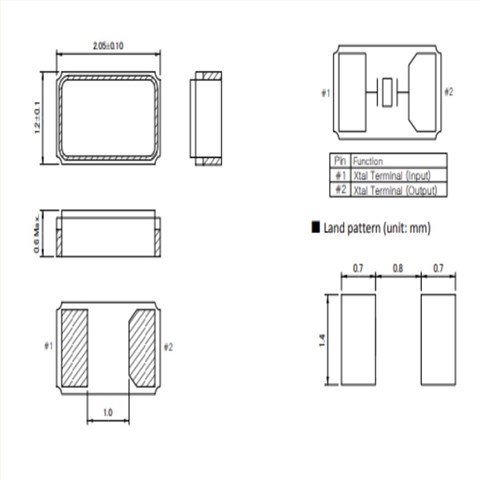

HE-MCC-21-32.768K-12.5,2012mm,32.768KHz,HEC音叉晶体,尺寸图
