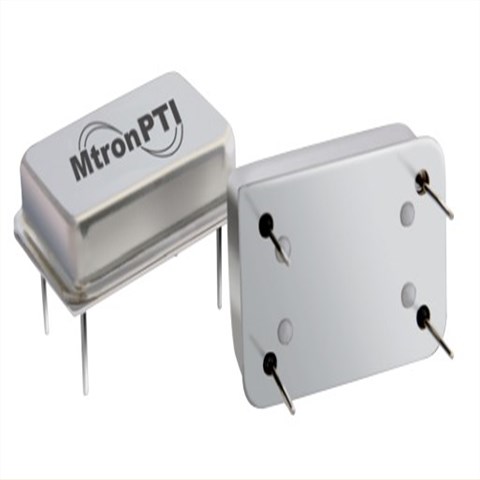

麦特伦皮振荡器,MHO+34TD-R11.0592MHz,北斗定位6G晶振

产品简介

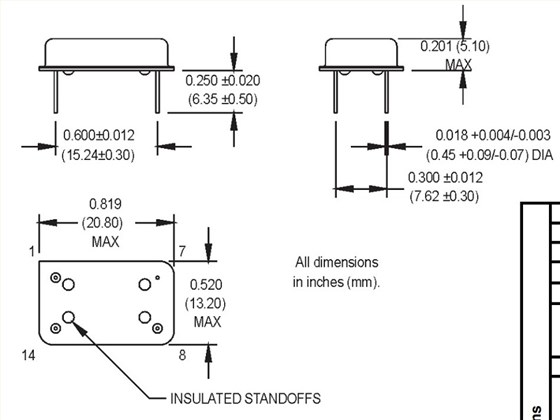

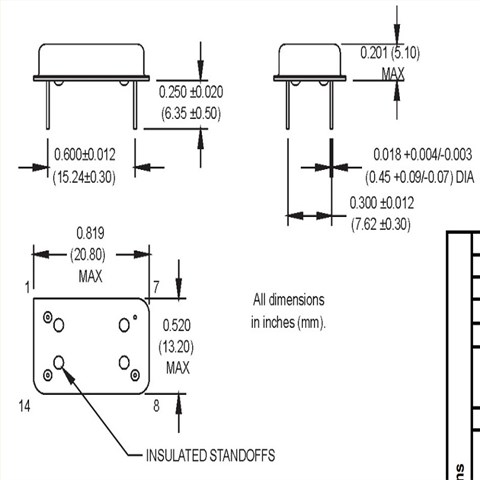

麦特伦皮振荡器,MHO+34TD-R11.0592MHz,北斗定位6G晶振，美国进口晶振，MTRONPTI麦特伦皮晶振，MHO+系列，编码为：MHO+34TD-R11.0592MHz，频率为：11.0592MHz，尺寸为：20.8x13.2mm，14 pin DIP，电压电压5V，HCMOS/TTL输出，石英晶振，时钟晶体振荡器，有源晶振，无铅环保晶振，宽工作温度范围：-55℃至105℃，可提供符合RoHS要求的版本（-R），三种状态选项，工作温度范围宽，储存温度范围：-55℃至+125℃，适用于：通讯设备晶振，无线网络，蓝牙模块，物联网，GPS模块晶振，车载导航，汽车电子设备，医疗设备，工业控制，消费电子，智能安防，数码电子等应用.

产品详情

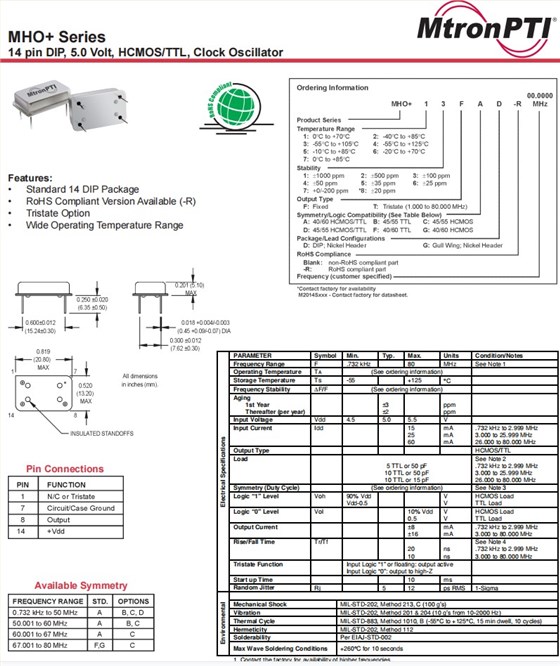

麦特伦皮振荡器,MHO+34TD-R11.0592MHz,北斗定位6G晶振，参数表

PARAMETER	Symbol		Min.	Typ.	Max.	Units	Condition/Notes
Frequency Range	F			11.0592		MHz	See Note 1
Operating Temperature	TA		(See ordering information)
Storage Temperature	TS		-55		125	°C
Frequency Stability	△F/F		(See ordering information)
Aging				±3		ppm
1st Year				±2		ppm
Thereafter (per year)
Input Voltage	Vdd		4.5	5	5.5	V
Input Current	Idd				15	mA	.732 kHz to 2.999 MHz
					25	mA	3.000 to 25.999 MHz
					60	mA	26.000 to 80.000 MHz
Output Type							HCMOS/TTL
Load			5 TTL or 50 pF				See Note 2
			10 TTL or 50 pF				.732 kHz to 2.999 MHz
			10 TTL or 15 pF				3.000 to 25.999 MHz
							26.000 to 80.000 MHz
Symmetry (Duty Cycle)			(See ordering information)				See Note 3
Logic “1” Level	Voh		90% Vdd Vdd-0.5			V	HCMOS Load
						V	TTL Load
Logic “0” Level	Vol				10% Vdd 0.5	V	HCMOS Load
						V	TTL Load
Output Current					±8	mA	.732 kHz to 2.999 MHz
					±16	mA	3.000 to 80.000 MHz
Rise/Fall Time	Tr/Tf				20	ns	See Note 4
					10	ns	.732 kHz to 2.999 MHz
							3.000 to 80.000 MHz
Tristate Function			Input Logic “1” or floating: output active Input Logic “0”: output to high-Z
Start up Time					10	ms
Random Jitter	Rj			5	12	ps RMS	1-Sigma

Mechanical Shock		MIL-STD-202, Method 213, C (100 g’s)
Vibration		MIL-STD-202, Method 201 & 204 (10 g’s from 10-2000 Hz)
Thermal Cycle		MIL-STD-883, Method 1010, B (-55°C to +125°C, 15 min dwell, 10 cycles)
Hermeticity		MIL-STD-202, Method 112
Solderability		Per EIAJ-STD-002
Max Wave Soldering Conditions		+260°C for 10 seconds
