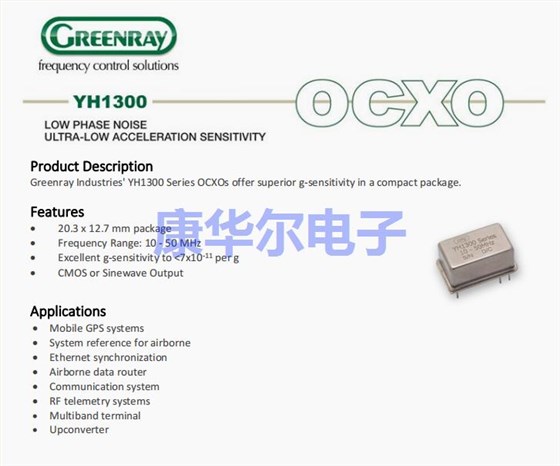

Greenray有源晶振中的YH1300系列晶振频率范围是10MHz~50MHz，尺寸为20.3 x 12.7 mm，为OCXO晶振，进口石英晶振，通信系统晶振，格林雷恒温晶振提供多种封装，从小型DIP和SMT到更大的工业标准尺寸。我们提供从1MHz到200 MHz的各种频率，以满足您的特定要求。 利用独特的设计技术，Greenray OCXO专注于低相位噪声和温度范围内的严格频率稳定性，并为国防和通信应用提供出色的长期特性。
特征：
-
1、灵敏度低至7 x 10-11/g
-
2、电源电压:3.3、5或12伏直流电
-
3、微型20.3 x 12.7mm毫米封装
-
4、频率范围:10 - 50兆赫
- 5、CMOS方波或正弦波输出
-
YH1300,格林雷晶振,OCXO晶振,进口石英晶振,通信系统晶振,Greenray有源晶振
|
Parameter |
Conditions |
Min |
Typical |
Max |
Units |
Ordering Code |
|
Nominal Frequency |
Sinewave CMOS |
10 |
|
50 |
MHz |
|
|
Frequency Stability (other stability available) |
0°C to +50°C |
|
|
0.10 |
ppm |
B17 |
|
-20°C to +70°C |
|
|
0.30 |
ppm |
N37 |
|
|
-40°C to +85°C |
|
|
0.50 |
ppm |
T57 |
|
|
Aging |
1st year |
|
0.5 |
± 1.0 |
ppm |
|
|
For 10 years |
|
|
± 3.0 |
ppm |
|
|
|
Warm-up Time |
Within ± 100 ppb |
|
5 |
|
min |
|
|
Frequency vs Voltage |
For a 5% change |
|
|
± 50 |
ppb |
|
|
Frequency vs Load |
For a 10% change |
|
|
± 50 |
ppb |
|
|
Acceleration Sensitivity |
Worst Axis: Tested at 90Hz, 10g |
|
|
0.20 0.07 |
ppb/g |
LG ULG |
|
Electronic Frequency Control |
EFC = 0 to VDD Positive slope |
|
± 5 |
|
ppm |
|
|
Phase Noise Performance |
||||||
|
Parameter |
Frequency Offset (Hz) |
Min |
Typical |
Max |
Units |
|
|
Phase Noise (static) @ 10 MHz nominal Frequency |
10 |
|
-100 |
|
dBc/Hz |
|
|
100 |
|
-125 |
|
dBc/Hz |
|
|
|
1k |
|
-148 |
|
dBc/Hz |
|
|
|
10 k |
|
-152 |
|
dBc/Hz |
|
|
|
100 k |
|
-153 |
|
dBc/Hz |
|
|
|
1 M |
|
-160 |
|
dBc/Hz |
|
|
|
DC Supply |
||||||
|
Parameter |
Conditions |
Min |
Typical |
Max |
Units |
|
|
Supply Voltage (VDD) |
|
4.75 |
5.0 |
5.25 |
VDC |
|
|
|
|
|
|
|
|
|
|
Supply Current |
|
|
150 |
|
mA |
|
|
Input Power |
Warm-up, 5 min |
|
|
3 |
W |
|
|
Idle, at +25°C |
|
|
0.75 |
W |
|
|
|
RF Outputs available: Sinewave and CMOS |
||||||
|
Parameter |
Conditions |
Min |
Typical |
Max |
Units |
Ordering Code |
|
CMOS Output |
|
C |
||||
|
Load |
|
|
15 |
|
pF |
|
|
Level |
CMOS |
VDD-0.2 “1” level |
|
+0.2 “0” level |
VDC |
|
|
Sine wave Output |
|
S |
||||
|
Harmonics |
|
|
|
- 20 |
dBc |
|
|
Load |
|
|
50 |
|
? |
|
|
Power |
50? load |
+ 1 |
+ 3 |
|
dBm |
|
