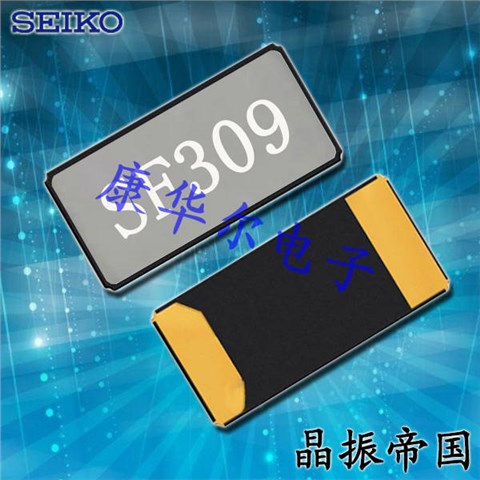

QSC20S03220C5AAAF,Seiko精工晶振,SC?20S蓝牙模块晶振

QSC20S03220C5AAAF,Seiko精工晶振,SC?20S蓝牙模块晶振

QSC20S03220C5AAAF是精工Seiko旗下SC-20S系列贴片晶振,专为蓝牙模块量身打造,是无线蓝牙设备常用的核心时钟元件.产品采用经典SC-20S小型化封装,体积精巧,结构轻薄,完美适配蓝牙模块紧凑的PCB布局,同时兼容SMT自动化贴装工艺,助力厂商高效量产.该款晶振电气参数匹配蓝牙电路标准,起振稳定迅速,频率精度高,温漂小,在日常温度波动环境下依旧能保持时序输出稳定.它具备低功耗,低等效电阻的特性,契合蓝牙模块低功耗运行需求,有效延长设备续航时长.此外产品抗干扰能力出色,可规避无线信号间的相互串扰,保障蓝牙配对,数据传输流畅不间断.遵循环保生产标准,品质一致性佳,除各类蓝牙模块外,也可应用于无线耳机,智能穿戴,物联网蓝牙终端等产品,是无线蓝牙领域高性价比的优选时钟器件.

QSC20S03220C5AAAF,Seiko精工晶振,SC?20S蓝牙模块晶振

品牌	精工
编码	QSC20S03220C5AAAF
型号	SC?20S日产进口晶振
频率	32.768KHZ
精度	±20ppm
负载	12.5PF

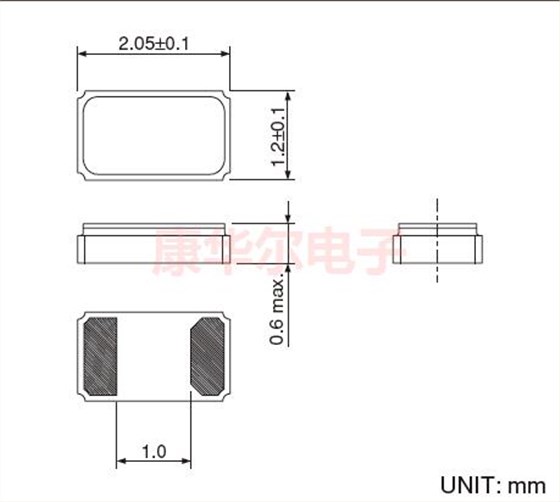

尺寸	2012
工作温度	−40℃ ～ +85℃

QSC20S03220C5AAAF,Seiko精工晶振,SC?20S蓝牙模块晶振

更多相关晶振参考

编码	品牌	型号	尺寸	频率	负载
12.87000	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	12.5pF
12.87001	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	9pF
12.87002	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	7pF
12.87034	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	4pF
12.87080	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87081	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87083	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87086	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87090	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87095	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87105	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87107	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87109	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12pF
12.87110	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87111	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87112	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87113	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87114	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87115	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87116	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87118	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87119	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87120	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87121	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87123	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87126	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87127	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87128	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87129	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87130	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87131	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87132	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87133	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87134	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87135	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87136	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87137	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	9pF
12.87138	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87139	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87143	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87144	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87145	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768KHz	12.5pF
12.87146	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87147	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87148	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87149	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87150	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87151	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87152	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87153	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87155	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87157	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87158	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87159	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87160	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87161	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87163	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	7pF
12.87164	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87165	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87166	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87167	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87168	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87169	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87170	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87171	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87172	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	9pF
12.87173	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	9pF
12.87174	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87175	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87176	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87177	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87178	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	4pF
12.87180	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87181	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87182	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87183	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87186	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87187	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	6pF
12.87188	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
