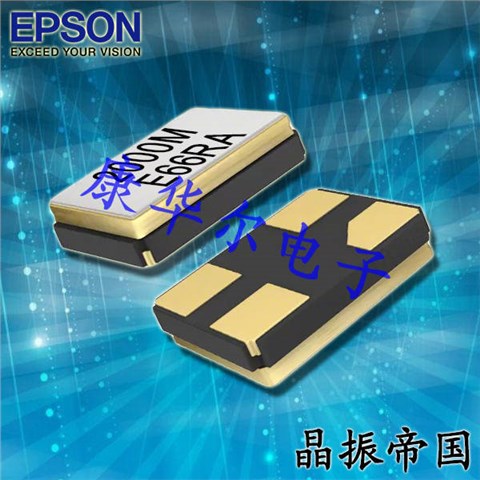

X1E0000210170 3225 TSX-3225 32M 16PF 10PPM -40~85℃ 日本爱普生晶振,频率范围 ： 12 MHz ~ 60 MHz (FA-238,238V) ，外部尺寸规格 ： 3.2 × 2.5 × 0.6 mm ，TSX-3225 ： 3.2 × 2.5 × 0.7 mm ，FA-238V / FA-238 ，谐波次数 ： 基频，应用 ： 移动电话，蓝牙，无线-局域网 ISM 频段电台广播，MPU 时钟等
X1E0000210170 3225 TSX-3225 32M 16PF 10PPM -40~85℃
 项目
|
符号 | 用于时钟 | 用于 RF 参考 | 条件 | ||||||||||||||
| FA-238V | FA-238 | TSX-3225 | ||||||||||||||||
| 额定频率范围 | f_nom |
12.000 MHz ~ 15.999 MHz |
16.000 MHz ~ 60.000 MHz |
16.000 MHz ~ 48.000 MHz |
基频*1 对于超出标准的规格说明， 请联系我们以便获取相关信息 |
|||||||||||||
| 储存温度 | T_stg | -40 oC ~ +125 oC | 裸存 | |||||||||||||||
| 工作温度 | T_use | -40 oC ~ +85 oC | ||||||||||||||||
| 激励功率 | DL |
 200W Max.
|
  推荐: 1W ~100W
|
|||||||||||||||
| 频率公差 | f_tol |
      5010-6 (标准),( 1510-6 ~5010-6可用) |
  1010-6
|
+25 oC 对于超出标准的规格说明， 请联系我们以便获取相关的信息*1 |
||||||||||||||
| 频率温度特征 | f_tem |
  3010-6/-20 oC ~ +70 oC
|
  1010-6/-20 oC ~ +75 oC
|
对于超出标准的规格说明， 请联系我们以便获取相关的信息*1 |
||||||||||||||
| 负载电容 | CL |
 7 pF ~
|
对于超出标准的规格说明， 请联系我们以便获取相关的信息 |
|||||||||||||||
| 串联电阻(ESR) | R1 | 如下表所示 | 如下表所示 |
 -40 oC ~ +85 oC, DL = 100W
|
||||||||||||||
| 频率老化 | f_age |
  510-6 / year Max.
|
  110-6 / year Max. *2
|
+25 oC, 第一年 | ||||||||||||||
X1E0000210170 3225 TSX-3225 32M 16PF 10PPM -40~85℃
| 爱普生原厂编码 | 尺寸 | 型号 | 频率 | 负载 | 频率 @+25°C | 工作温度 |
| X1E0000210019 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210047 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 9 pF | +/-10 ppm | -40 to +105 °C |
| X1E0000210048 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +105 °C |
| X1E0000210052 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210111 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210112 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210113 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210114 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210115 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210117 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210118 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210119 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210120 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210121 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210122 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210123 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210124 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210125 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210126 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210127 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210128 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210129 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210130 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210131 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210132 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210133 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210134 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210135 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210136 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210137 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210138 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210139 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210140 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210141 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210142 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210143 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210144 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210145 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210146 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210147 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210148 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210149 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
