XMP-5135-1A-16pF-27.000MHz,7050mm,27M,KVG石英晶振

XMP-5135-1A-16pF-27.000MHz,7050mm,27M,KVG石英晶振

产品简介

XMP-5135-1A-16pF-27.000MHz,7050mm,27M,KVG石英晶振,德国进口晶振,KVG晶振,XMP-5100系列,编码为:XMP-5135-1A-16pF-27.000MHz,频率为:27.000MHz,小体积晶振尺寸为:7.0x5.0mm SMD陶瓷封装,四脚贴片晶振,石英晶振,无源晶振,石英晶体谐振器,7050晶振,SMD晶振,石英贴片晶振,工作温度范围:-40至+85°C。具有超小型,轻薄型,高精度,高性能,高品质,耐热及耐环境特点。进口晶振,被广泛用于:通讯设备晶振,电脑用晶振,蓝牙模块晶振,汽车电子晶振,车载导航晶振,安防设备,物联网晶振,数码电子等应用。

产品详情

XMP-5135-1A-16pF-27.000MHz,7050mm,27M,KVG石英晶振,德国进口晶振,KVG晶振,XMP-5100系列,编码为:XMP-5135-1A-16pF-27.000MHz,频率为:27.000MHz,小体积晶振尺寸为:7.0x5.0mm SMD陶瓷封装,四脚贴片晶振,石英晶振,无源晶振,石英晶体谐振器,7050晶振,SMD晶振,石英贴片晶振,工作温度范围:-40至+85°C。具有超小型,轻薄型,高精度,高性能,高品质,耐热及耐环境特点。进口晶振,被广泛用于:通讯设备晶振,电脑用晶振,蓝牙模块晶振,汽车电子晶振,车载导航晶振,安防设备,物联网晶振,数码电子等应用。

XMP-5135-1A-16pF-27.000MHz,7050mm,27M,KVG石英晶振,参数表

Parameter: Values (Range):
Frequency range, Mode of vibration :

27.000 MHz

Operating temperature range options : 1:-10 to +60 °C
2:-20 to +70 °C
3:-40 to +85 °C
Frequency stability vs. temperature options :
± 5 ppm (available for temp.range 1 ):
1
2
3
4
5
6
± 10
± 15
± 20
± 30
± 50
ppm
ppm
ppm
ppm
ppm
Adjustment tolerance at +25 °C : A:± 10
D:± 25
ppm
ppm
B:± 15
E:± 30
ppm
ppm
C:± 20
F:± 50
ppm
ppm
Load capacity CL : 12 pF to 32 pF and series resonance available
Resonance Resistance R1max: See table below
Static Capacitance Co : 5 pF max
Drive level PD: 0.01 mW nom.; 0.1 mW max.
Aging : <±1 ppm/year
Storage temperature range : -55 °C to +125 °C
Frequency [MHz]
6.0 …8.9
9.0 …10.9
11.0 …17.9
18.0 … 40.0
30.0 … 80.0
Mode
fund.
fund.
fund.
fund.
3rdOT
R1max
150Ω
120Ω
50Ω
30Ω
80Ω

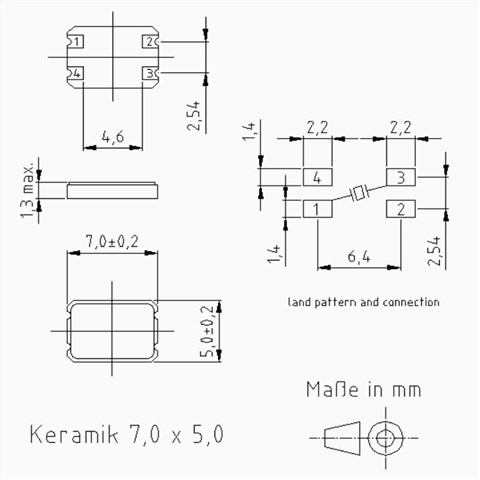

XMP-5135-1A-16pF-27.000MHz,7050mm,27M,KVG石英晶振,尺寸图

XMP-5100尺寸

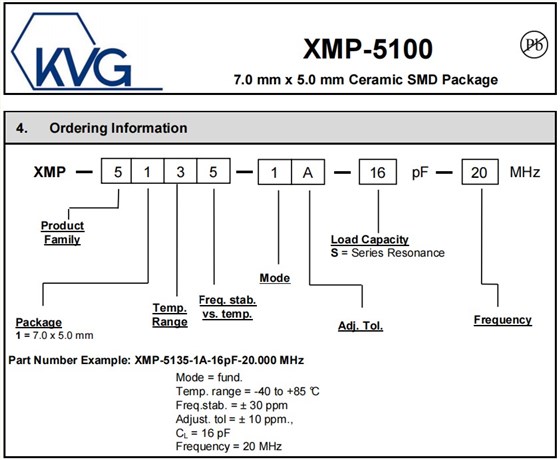

XMP-5100


XMP-5100-1


XMP-5100-2
