艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振

艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振

产品简介

艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振，美国进口晶振，IDT艾迪悌晶振XUH系列，编码为：XUH538125.000000X，频率为：125.000MHz，小体积尺寸5.0x3.2mm，六脚贴片晶振，有源晶振，石英晶体振荡器。XUH是一个HCMOS晶体振荡器，具有超过12 kHz到20 MHz带宽的300fs典型相位抖动。IDT XUH系列的频率从0.016MHz到167MHz的宽范围，采用了一系列专有的asic，重点关注降噪技术。四阶西格玛调制器将噪声降低到可与传统的大块石英和锯纹波振荡器相媲美的水平。XUH石英晶振具有较短的前置时间、低成本、低噪声、较宽的频率范围、优异的环境性能，是一种超越传统技术的优良选择。XUH的稳定性高达±20ppm，具有非常快的标准和自定义频率传输。应用于：移动通讯设备，无线网络，蓝牙模块，物联网，导航仪，汽车电子设备，医疗设备，安防设备，数码电子等应用。

产品详情

艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振，美国进口晶振，IDT艾迪悌晶振XUH系列，编码为：XUH538125.000000X，频率为：125.000MHz，小体积尺寸5.0x3.2mm，六脚贴片晶振，有源晶振，石英晶体振荡器。XUH是一个HCMOS晶体振荡器，具有超过12 kHz到20 MHz带宽的300fs典型相位抖动。IDT XUH系列的频率从0.016MHz到167MHz的宽范围，采用了一系列专有的asic，重点关注降噪技术。四阶西格玛调制器将噪声降低到可与传统的大块石英和锯纹波振荡器相媲美的水平。XUH石英晶振具有较短的前置时间、低成本、低噪声、较宽的频率范围、优异的环境性能，是一种超越传统技术的优良选择。XUH的稳定性高达±20ppm，具有非常快的标准和自定义频率传输。应用于：移动通讯设备，无线网络，蓝牙模块，物联网，导航仪，汽车电子设备，医疗设备，安防设备，数码电子等应用。

艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振，参数表

Parameter Symbol Condition Min Typ Max Units
Output Frequency Range FOUTR

125.000
MHz
Frequency Stability
Temperature = -20°C to +70°C ±20
±100 ppm

Temperature = -40°C to +85°C ±25
±100 ppm
Output Load



10 pF
Start-up Time TST Output valid time after VDD meets
minimum specified level

10 ms
Output Rise Time
10% to 90% VDD,Standard Frequencies
5
ns
Output Fall Time
90% to 10% VDD,Standard Frequencies
5
ns
Output Clock Duty Cycle TDTCY @ 50% VDD 40
60 %
Output Enable/ Disable Time TOE


100 ns
Period Jitter, RMS J PER Frequency = 62.5MHz
7
psec
Random Jitter RJ Frequency = 62.5MHz
Per MJSQ spec (Methodologies for Jitter
and Signal Quality specifications)
0.9
psec
Deterministic Jitter DJ
10
psec
Total Jitter TJ
20
psec
Phase Jitter (12kHz – 20MHz) φJITTER Frequency = 62.5MHz
800 1200 fsec
Phase Noise Performance
Frequency = 62.5MHz 		φNOISE 100Hz of Carrier
-94
dBc/Hz
1kHz of Carrier
-113
dBc/Hz
10kHz of Carrier
-123
dBc/Hz
100kHz of Carrier
-128
dBc/Hz
1MHz of Carrier
-152
dBc/Hz
10MHz of Carrier
-155
dBc/Hz
Output Frequency (Standards) FOUT 10MHz, 12MHz, 12.288MHz, 16MHz, 20MHz, 24MHz, 24.576MHz, 25MHz, 33.333MHz,40MHz, 48MHZ, 50MHz, 62.5MHz
(Contact IDT for additional frequencies)

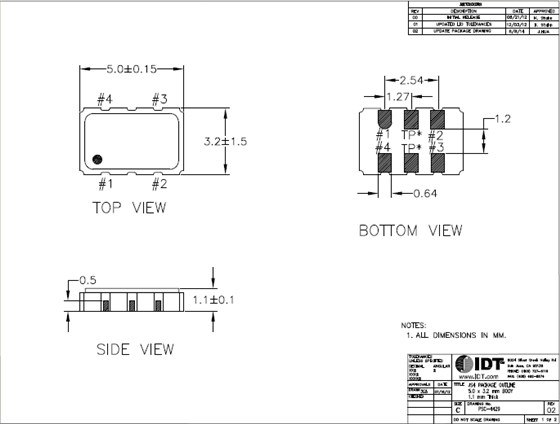

艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振，尺寸图

XUH 5032 HCMOS


艾迪悌HCMOS振荡器,XUH538125.000000X,无线设备6G晶振

产品特点：
频率范围：0.016至167MHz
输出类型：HCMOS
频率稳定性：±20ppm、±25ppm、±50ppm或±100ppm
电源电压：1.8V、2.5V或3.3V
相位抖动（1.875MHz至20MHz）：典型100fs
相位抖动（12kHz至20MHz）：典型300fs
小体积晶振包装选项：5.0mm x 3.2mm x 1.2mm（JS4）,7.0毫米x 5.0毫米x 1.3毫米（JU4）
工作温度：-20°C至+70°C或-40°C至+85°C

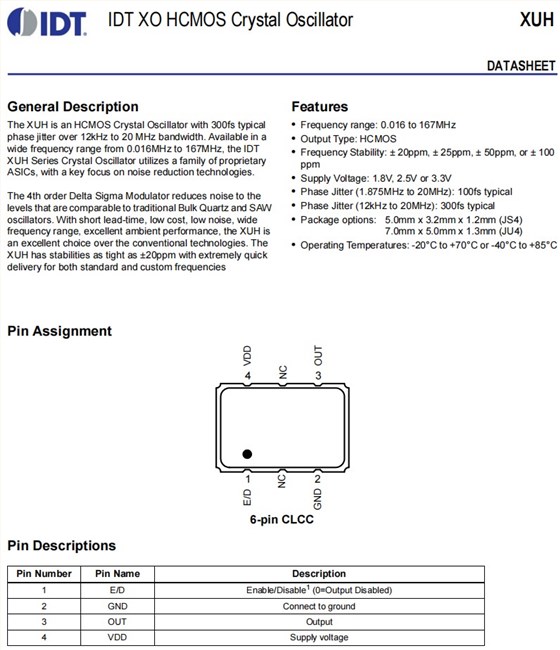

XUH

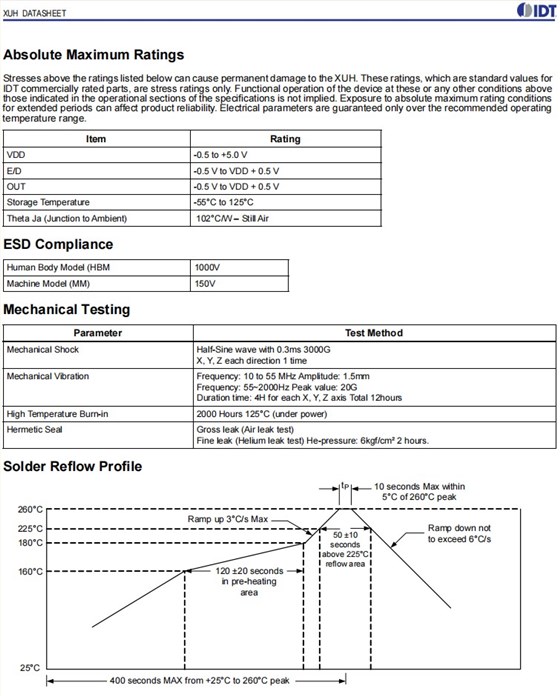

XUH-1

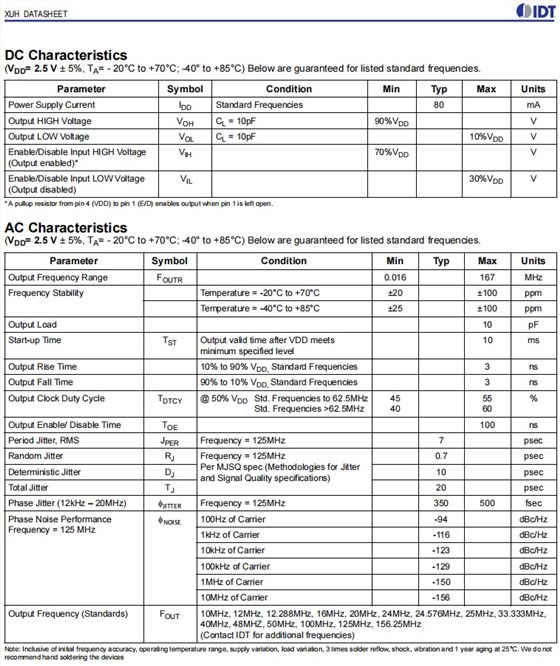

XUH-2

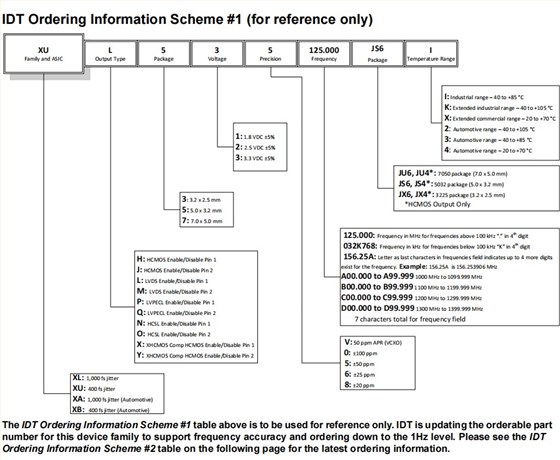

XUH-3

有源晶体 品牌 描述 系列 频率 输出
XUH536156.250JS4I Renesas晶振 XTAL OSC XO 156.2500MHZ HCMOS XUH 156.25 MHz HCMOS
XUH518027.120000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 27.12 MHz HCMOS
XUH538024.576000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24.576 MHz HCMOS
XUH518033.333333X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 33.333333 MHz HCMOS
XUH538027.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 27 MHz HCMOS
XUH538022.579200X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 22.5792 MHz HCMOS
XUH538013.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 13 MHz HCMOS
XUH538067.108864X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 67.108864 MHz HCMOS
XUH538125.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 125 MHz HCMOS
XUH538010.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 10 MHz HCMOS
XUH538020.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 20 MHz HCMOS
XUH538040.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 40 MHz HCMOS
XUH510100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH535000.127700K Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 127.7 kHz HCMOS
XUH535000.050000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 50 kHz HCMOS
XUH515020.000000K Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 20 MHz HCMOS
XUH535025.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 25 MHz HCMOS
XUH535100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH535000.192000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 192 kHz HCMOS
XUH535017.177600X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 17.1776 MHz HCMOS
XUH535048.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 48 MHz HCMOS
XUH510133.333000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 133.333 MHz HCMOS
XUH535000.042000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 42 kHz HCMOS
XUH535024.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24 MHz HCMOS
XUH535012.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 12 MHz HCMOS
XUH525010.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 10 MHz HCMOS
XUH535000.044000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 44 kHz HCMOS
XUH535000.096000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 96 kHz HCMOS
XUH525024.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24 MHz HCMOS
XUH530000.460800X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 460.8 kHz HCMOS
XUH516125.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 125 MHz HCMOS
XUH526024.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24 MHz HCMOS
XUH526016.384000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 16.384 MHz HCMOS
XUH536100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH516033.333333I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 33.333333 MHz HCMOS
XUH536025.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 25 MHz HCMOS
XUH536033.333330I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 33.33333 MHz HCMOS
XUH536030.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 30 MHz HCMOS
XUH536025.001250I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 25.00125 MHz HCMOS
XUH516100.000000I 进口晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH536025.600000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 25.6 MHz HCMOS
XUH526000.828000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 828 kHz HCMOS
XUH536033.333300I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 33.3333 MHz HCMOS
XUH516030.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 30 MHz HCMOS
XUH536125.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 125 MHz HCMOS
XUH536050.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 50 MHz HCMOS
XUH536000.032768I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 32.768 kHz HCMOS
XUH536000.050000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 50 kHz HCMOS
XUH536010.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 10 MHz HCMOS
XUH515160.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 160 MHz HCMOS
XUH535156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 156.25 MHz HCMOS
XUH516026.214400I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 26.2144 MHz HCMOS
XUH536020.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 20 MHz HCMOS
XUH516120.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 120 MHz HCMOS
XUH535000.034133I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 34.133 kHz HCMOS
XUH516025.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 25 MHz HCMOS
XUH530000.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 500 kHz HCMOS
XUH515100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH535000.100000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 kHz HCMOS
XUH525050.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 50 MHz HCMOS
