XUP536100.000000I/IDT艾迪悌低功耗晶振/LVPECL光模块6G晶振

XUP536100.000000I/IDT艾迪悌低功耗晶振/LVPECL光模块6G晶振，美国进口晶振，IDT晶振，XUP系列晶振，编码为：XUP536100.000000I，频率为：100.000MHz，小体积晶振尺寸：5.0x3.2mm，六脚贴片晶振，石英晶振，有源晶振。XUP是一种超精密LVPECL差分晶振，具有300fs到20 MHz带宽超过12 kHz的典型相位抖动。IDT XUP系列晶体振荡器的频率范围从16 kHz到670 MHz，采用了一系列专有的asic芯片，重点关注降噪技术。四阶西格玛调制器将噪声降低到可与传统的大块石英和锯纹波振荡器相媲美的水平。具有较短的前置时间、低成本、低噪声、较宽的频率范围、优异的环境性能，是一种超越传统技术的优良选择。XUP的稳定性高达±20ppm，具有非常快的标准和自定义频率传输，高性能，低功耗，低噪声，低抖动，低损耗等特点。被广泛用于通讯设备，无线网络，蓝牙晶振，以太网，光模块，光纤通信，机顶盒，光端机，安防设备及各种频率控制设备上。

XUP536100.000000I/IDT艾迪悌低功耗晶振/LVPECL光模块6G晶振，美国进口晶振，IDT晶振，XUP系列晶振，编码为：XUP536100.000000I，频率为：100.000MHz，小体积晶振尺寸：5.0x3.2mm，六脚贴片晶振，石英晶振，有源晶振。XUP是一种超精密LVPECL差分晶振，具有300fs到20 MHz带宽超过12 kHz的典型相位抖动。IDT XUP系列晶体振荡器的频率范围从16 kHz到670 MHz，采用了一系列专有的asic芯片，重点关注降噪技术。，四阶西格玛调制器将噪声降低到可与传统的大块石英和锯纹波振荡器相媲美的水平。具有较短的前置时间、低成本、低噪声、较宽的频率范围、优异的环境性能，是一种超越传统技术的优良选择。XUP的稳定性高达±20ppm，具有非常快的标准和自定义频率传输，高性能，低功耗，低噪声，低抖动，低损耗等特点。被广泛用于通讯设备，无线网络，蓝牙晶振，以太网，光模块，光纤通信，机顶盒，光端机，安防设备及各种频率控制设备上。

XUP536100.000000I/IDT艾迪悌低功耗晶振/LVPECL光模块6G晶振，参数表

Parameter

Symbol

Condition

Min

Typ

Max

Units

Output Frequency Range

FOUTR

100.000

MHz

Frequency Stability

Temperature = -20°C to +70°C

±20

±100

ppm

Temperature = -40°C to +85°C

±25

±100

ppm

Aging(1styear)

Ta = 25°C

3

Aging (10 years)

Ta = 25°C

10

Output Load

To VDD-2.0V

50

Ohms

Start-up Time

TST

Output valid time after VDD meets minimum specified level

10

ms

Output Rise Time

20% to 80% VPP,Std frequencies

400

ps

Output Fall Time

80% to 20% VPP,Std frequencies

400

ps

Output Clock Duty Cycle

TDTCY

50% VPP <312.5MHz >312.5MHz

45 40

55 60

%

Output Enable/ Disable Time

TOE

100

ns

Period Jitter, RMS

JPER

Frequency = 156.25MHz

1.8

7

psec

Random Jitter

RJ

Frequency = 156.25MHz Per MJSQ spec (Methodologies for Jitter and Signal Quality specifications)

0.7

1.8

psec

Deterministic Jitter

DJ

8

24

psec

Total Jitter

TJ

18

42

psec

Phase Jitter (12kHz – 20MHz)

φJITTER

Standard frequencies @ 25°C, 3.3V

300

400

fsec

Phase Noise Performance Frequency = 156.25MHz

φNOISE

100Hz of Carrier

-95

dBc/Hz

1kHz of Carrier

-115

dBc/Hz

10kHz of Carrier

-120

dBc/Hz

100kHz of Carrier

-129

dBc/Hz

1MHz of Carrier

-149

dBc/Hz

10MHz of Carrier

-156

dBc/Hz

Output Frequency (Standards)

FOUT

100MHz, 106.25MHz, 125MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz, 212,5MHz,250MHz, 300MHz, 312.5MHZ, 400MHz (Contact IDT for additional frequencies)

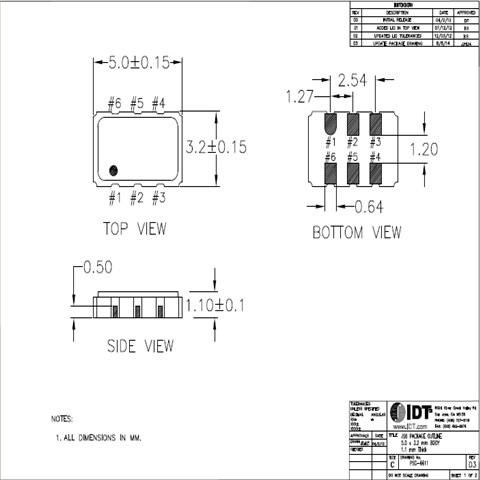

XUP536100.000000I/IDT艾迪悌低功耗晶振/LVPECL光模块6G晶振，尺寸图

XUP536100.000000I/IDT艾迪悌低功耗晶振/LVPECL光模块6G晶振

产品特点：
频率范围：0.016至670 MHz
输出类型：LVPECL差分晶体振荡器
频率稳定性：±20ppm、±25ppm、±50ppm或±100ppm
电源电压：1.8V、2.5V或3.3V
相位抖动（1.875MHz至20MHz）：典型100fs
相位抖动（12kHz至20MHz）：典型300fs
包装选项：5.0毫米x 3.2毫米x 1.2毫米（JS6），7.0毫米x 5.0毫米x 1.3毫米（JU6）
工作温度：-20°C至+70°C或-40°C至+85°C

编码	品牌	IDT差分晶振	系列	频率	输出	电压
XUP536212.500JS6I	IDT晶振	XTAL OSC XO 212.5000MHZ LVPECL	XUP	212.5 MHz	LVPECL	3.3V
XUP536156.250JS6I	IDT晶振	XTAL OSC XO 156.2500MHZ LVPECL	XUP	156.25 MHz	LVPECL	3.3V
XUP535024.576000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	24.576 MHz	LVPECL	3.3V
XUP535100.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	3.3V
XUP535075.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	75 MHz	LVPECL	3.3V
XUP536048.000000I	IDT晶振	XTAL OSC XO 48.0000MHZ LVPECL	XU	48 MHz	LVPECL	3.3V
XUP535100.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	3.3V
XUP530156.250000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP535050.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	50 MHz	LVPECL	3.3V
XUP535150.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	150 MHz	LVPECL	3.3V
XUP530156.250000I	IDT晶振	XTAL OSC XO 156.2500MHZ LVPECL	XU	156.25 MHz	LVPECL	3.3V
XUP535025.000000K	IDT晶振	XTAL OSC XO 25.0000MHZ LVPECL	XU	25 MHz	LVPECL	3.3V
XUP535022.579200X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	22.5792 MHz	LVPECL	3.3V
XUP535212.500000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	212.5 MHz	LVPECL	3.3V
XUP536250.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	250 MHz	LVPECL	3.3V
XUP536100.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	3.3V
XUP536125.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	125 MHz	LVPECL	3.3V
XUP536025.000625I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	25.000625 MHz	LVPECL	3.3V
XUP536050.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	50 MHz	LVPECL	3.3V
XUP535312.500000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	312.5 MHz	LVPECL	3.3V
XUP535160.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	160 MHz	LVPECL	3.3V
XUP535155.520000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	155.52 MHz	LVPECL	3.3V
XUP535150.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	150 MHz	LVPECL	3.3V
XUP535300.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	300 MHz	LVPECL	3.3V
XUP535250.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	250 MHz	LVPECL	3.3V
XUP536025.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	25 MHz	LVPECL	3.3V
XUP538100.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	3.3V
XUP538125.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	125 MHz	LVPECL	3.3V
XUP536020.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	20 MHz	LVPECL	3.3V
XUP536125.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	125 MHz	LVPECL	3.3V
XUP536100.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	3.3V
XUP525161.132813X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	161.132813 MHz	LVPECL	2.5V
XUP535156.250000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP535125.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	125 MHz	LVPECL	3.3V
XUP535148.500000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	148.5 MHz	LVPECL	3.3V
XUP525100.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	2.5V
XUP515019.200000I	IDT晶振	5.00X3.20X1.10 MM,石英贴片晶振	XU	19.2 MHz	LVPECL	1.8V
XUP525156.250000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	2.5V
XUP535025.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	25 MHz	LVPECL	3.3V
XUP536625.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	625 MHz	LVPECL	3.3V
XUP536320.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	320 MHz	LVPECL	3.3V
XUP536400.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	400 MHz	LVPECL	3.3V
XUP538622.080000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	622.08 MHz	LVPECL	3.3V
XUP535622.080000K	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	622.08 MHz	LVPECL	3.3V
XUP535402.832032I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	402.832032 MHz	LVPECL	3.3V
XUP536184.320000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	184.32 MHz	LVPECL	3.3V
XUP536156.250000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP535438.282150I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	438.28215 MHz	LVPECL	3.3V
XUP536300.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	300 MHz	LVPECL	3.3V
XUP535322.265625I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	322.265625 MHz	LVPECL	3.3V
XUP538150.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	150 MHz	LVPECL	3.3V
XUP536250.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	250 MHz	LVPECL	3.3V
XUP526300.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	300 MHz	LVPECL	2.5V
XUP516300.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	300 MHz	LVPECL	1.8V
XUP536616.666666X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	616.666666 MHz	LVPECL	3.3V
XUP538233.472000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	233.472 MHz	LVPECL	3.3V
XUP538156.250000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP535156.250000K	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP530100.000000K	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	3.3V
XUP536150.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	150 MHz	LVPECL	3.3V
XUP536212.500000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	212.5 MHz	LVPECL	3.3V
XUP536156.253906I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.253906 MHz	LVPECL	3.3V
XUP516156.250000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	1.8V
XUP535400.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	400 MHz	LVPECL	3.3V
XUP526644.531250X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	644.53125 MHz	LVPECL	2.5V
XUP526156.250000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	2.5V
XUP515160.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	160 MHz	LVPECL	1.8V
XUP536025.006250I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	25.00625 MHz	LVPECL	3.3V
XUP510160.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	160 MHz	LVPECL	1.8V
XUP526100.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	2.5V
XUP538075.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	75 MHz	LVPECL	3.3V
XUP536156.250000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP535156.250000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	156.25 MHz	LVPECL	3.3V
XUP528025.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	25 MHz	LVPECL	2.5V
XUP536125.006250I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	125.00625 MHz	LVPECL	3.3V
XUP526025.000000I	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	25 MHz	LVPECL	2.5V
XUP528100.000000X	IDT晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XU	100 MHz	LVPECL	2.5V
XUP536100.000JS6I	IDT晶振	XTAL OSC XO 100.0000MHZ LVPECL	XUP	100 MHz	LVPECL	3.3V
XUP536125.000JS6I	IDT晶振	XTAL OSC XO 125.0000MHZ LVPECL	XUP	125 MHz	LVPECL	3.3V
XUP535100.000JS6I	IDT晶振	XTAL OSC XO 100.0000MHZ LVPECL	XUP	100 MHz	LVPECL	3.3V
XUP535125.000JS6I	IDT晶振	XTAL OSC XO 125.0000MHZ LVPECL	XUP	125 MHz	LVPECL	3.3V
XUP535150.000JS6I	IDT晶振	XTAL OSC XO 150.0000MHZ LVPECL	XUP	150 MHz	LVPECL	3.3V
XUP535156.250JS6I	IDT晶振	XTAL OSC XO 156.2500MHZ LVPECL	XUP	156.25 MHz	LVPECL	3.3V
XUP535212.500JS6I	IDT晶振	XTAL OSC XO 212.5000MHZ LVPECL	XUP	212.5 MHz	LVPECL	3.3V
XUP535100.000JS6I8	IDT晶振	XTAL OSC XO 100.0000MHZ LVPECL	XUP	100 MHz	LVPECL	3.3V
XUP535125.000JS6I8	IDT晶振	XTAL OSC XO 125.0000MHZ LVPECL	XUP	125 MHz	LVPECL	3.3V
XUP535150.000JS6I8	IDT晶振	XTAL OSC XO 150.0000MHZ LVPECL	XUP	150 MHz	LVPECL	3.3V
XUP535156.250JS6I8	IDT晶振	XTAL OSC XO 156.2500MHZ LVPECL	XUP	156.25 MHz	LVPECL	3.3V
XUP535212.500JS6I8	IDT晶振	XTAL OSC XO 212.5000MHZ LVPECL	XUP	212.5 MHz	LVPECL	3.3V
XUP536150.000JS6I	IDT晶振	XTAL OSC XO 150.0000MHZ LVPECL	XUP	150 MHz	LVPECL	3.3V
