TCXO,AXLE5032S-FM-10-2C-20.000MHz,5032mm,AXTAL低相位噪声晶振，德国进口晶振，AXTAL晶振，型号：AXLE5032S，编码为：AXLE5032S-FM-10-2C-20.000MHz，频率稳定性：±1.0ppm，工作温度范围：-20℃至+70℃，频率为：20.000MHz，小体积晶振尺寸：5.0x3.2x1.7mm，TCXO温补晶振，石英晶振，8垫脚贴片晶振，有源晶振，SMD晶振，温补晶体振荡器。具有超小型，轻薄型，低抖动晶振，低功耗晶振，低相位噪声晶振，低电压等特点。被广泛应用于：移动通讯设备晶振，无线蓝牙晶振，物联网晶振，航空电子晶振，GPS定位晶振等应用。
TCXO,AXLE5032S-FM-10-2C-20.000MHz,5032mm,AXTAL低相位噪声晶振，产品特点：
低成本商用现货（COTS）
专门用于LEO应用，贴片石英晶振
根据MIL-PRF-55310“S”级制造
辐射硬化–40 krad（Si）总剂量（TID）
辐射硬化–SEL免疫>90 MeV
ITAR免费-欧洲制造
低相位噪声，高频稳定性
密封5x3.2 mm陶瓷封装，交付周期短
TCXO,AXLE5032S-FM-10-2C-20.000MHz,5032mm,AXTAL低相位噪声晶振,参数表
|
Parameter
|
min.
|
typ.
|
max.
|
Unit
|
Condition
|
|
Frequency range
|
10
|
|
50
|
MHz
|
|
|
Standard frequencies (Note 3)
|
20.000
|
MHz
|
|
|
Frequency stability
|
|
|
Initial tolerance @ +25°C
|
|
|
±1
|
ppm
|
VC = 1.5 V
|
|
vs. operating temperature range
|
Options 2 & 3
See tables 1A & 1B
|
ppm
|
|
|
vs. supply voltage variation (pushing)
|
|
|
±0.2
|
ppm
|
VS ±5%
|
|
vs. load change (pulling)
|
|
|
±0.2
|
ppm
|
RL ±5%
|
|
Long term (aging) 1st year
|
|
|
±1
|
ppm
|
@ +40°C
|
|
Long term (aging) 5 years
|
|
|
±3
|
ppm
|
@ +40°C
|
|
vs. radiation
|
|
|
±1.5
|
ppm
|
(Note 4)
|
|
Frequency adjustment range
|
|
|
Electronic Frequency Control (EFC)
|
±5
|
±10
|
|
ppm
|
Option 1 = “V”
|
|
EFC voltage VC
|
0.5
|
1.5
|
2.5
|
V
|
|
|
EFC slope (Δf / ΔVC)
|
Positive
|
|
|
|
EFC input impedance
|
100
|
|
|
kΩ
|
|
|
RF output
|
|
|
Signal waveform
|
Clipped sine wave
|
|
|
|
Load RL
|
10 kΩ // 10 pF
|
|
±5%
|
|
Output voltage
|
0.8
|
1.2
|
|
Vpp
|
|
|
Phase noise
|
Please consult factory
See table 1C
|
|
|
|
Supply voltage VS
|
3.15
|
3.3
|
3.45
|
V
|
|
|
Current consumption
|
|
2
|
6
|
mA
|
|

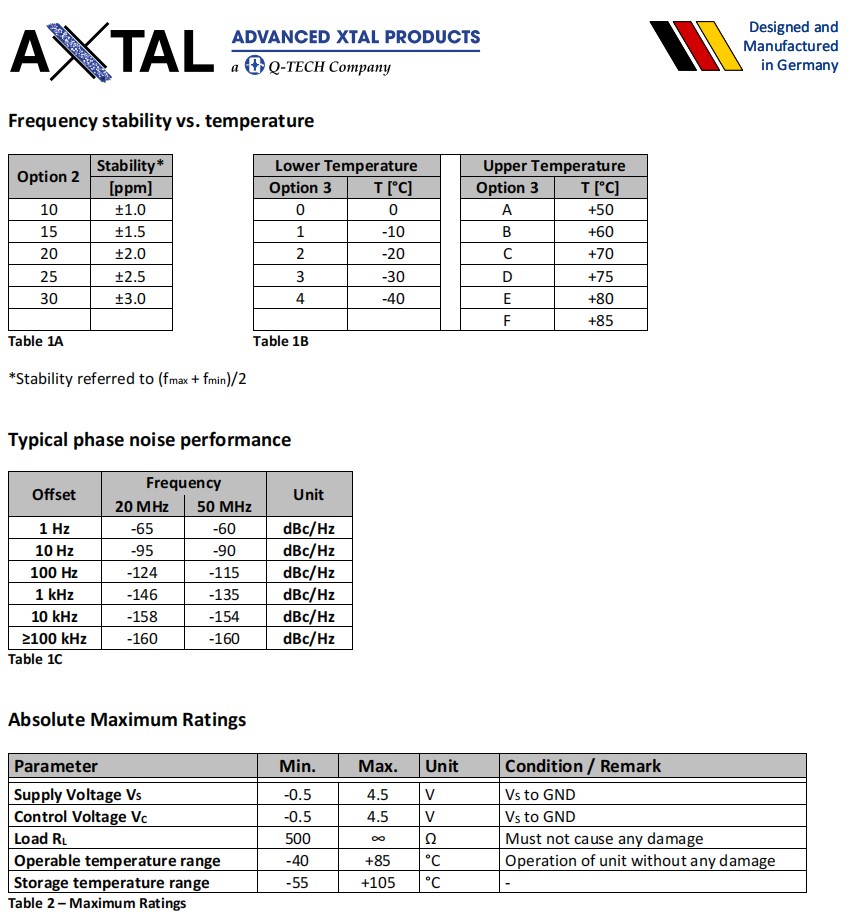

TCXO,AXLE5032S-FM-10-2C-20.000MHz,5032mm,AXTAL低相位噪声晶振,尺寸图
