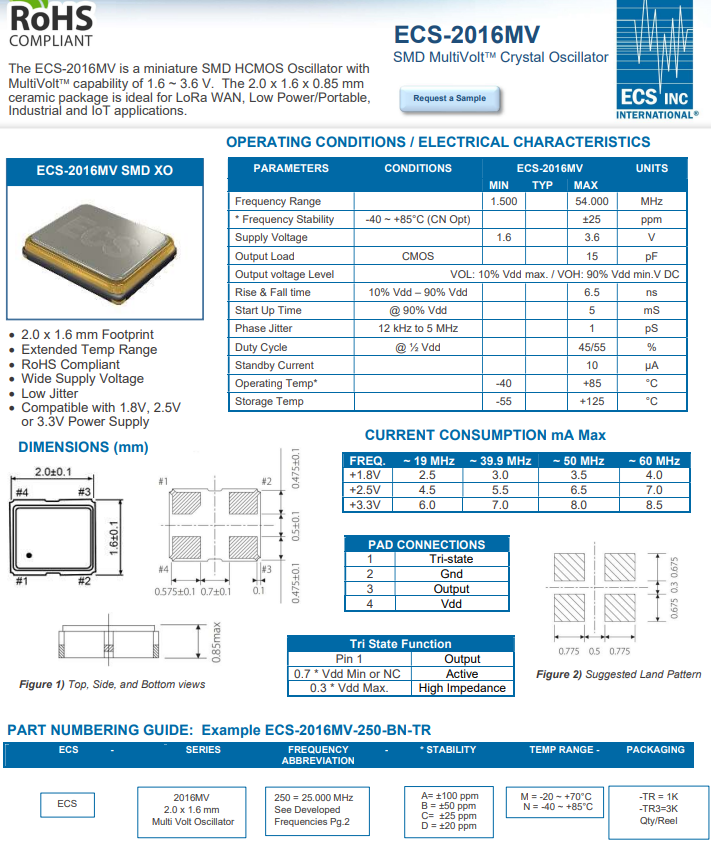

ECS晶振ECS-2016MV是一款微型SMD HCMOS振荡器，具有1.6V至3.6V的MultiVolt能力，低功耗、固定频率、低抖动、MultiVolt SMD石英晶体振荡器。小体积尺寸2.0x1.6x0.85mm(LWH)小型陶瓷封装四脚贴片晶振，扩展的温度范围，宽电源电压，兼容1.8V和2.5V或3.3V电源，符合RoHS标准。多重电压™ 特性允许将同一器件用于多种设计，降低了认证要求和库存。非常适合低功耗/便携式，通信模块，工业和物联网应用。SMD晶体振荡器ECS-2016MV-250-BN-TR通信模块晶振应用
SMD晶体振荡器ECS-2016MV-250-BN-TR通信模块晶振应用
特点:
小体积尺寸：2.0x1.6mm石英贴片晶振
MultiVolt 1.6V至3.6V
兼容1.8V、2.5V或3.3V电源
低抖动1 pS
BN选项：50ppm，-40℃至+85℃
CN选项：25ppm，-40℃至+85℃
铅饰面金
符合RoHS 2和REACH标准
MSL 1号
应用：物联网，存储设备，集装箱卸货与传输系统，航行，医疗(非维持生命)，移动设备，产业的，无线设备，测试设备，通用微处理器，IP摄像机
|
编码
|
频率
|
频率稳定性
|
工作温度
|
|
ECS-2016MV-120-BN-TR
|
12 MHz
|
±50ppm
|
-40°C ~ +85°C
|
|
ECS-2016MV-120-BN-TR
|
25 MHz
|
±25ppm
|
-40°C ~ +85°C
|
|
ECS-2016MV-250-CN-TR
|
25 MHz
|
±50ppm
|
-40°C ~ +85°C
|
|
ECS-2016MV-260-BN-TR
|
26 MHz
|
±50ppm
|
-40°C ~ +85°C
|
|
ECS-2016MV-333.3-BN-TR
|
33.3333 MHz
|
±50ppm
|
-40°C ~ +85°C
|
|
ECS-2016MV-480-BN-TR
|
48 MHz
|
±50ppm
|
-40°C ~ +85°C
|
|
ECS-2016MV-500-BN-TR
|
50 MHz
|
±50ppm
|
-40°C ~ +85°C
|
|
原厂代码
|
品牌
|
有源晶振
|
频率
|
工作温度
|
|
ECS-1618-300-BN-TR
|
ECS Crystal
|
ECS-1618
|
30MHz
|
-40°C ~ 85°C
|
|
ECS-1618-300-BN-TR
|
ECS Crystal
|
ECS-1618
|
30MHz
|
-40°C ~ 85°C
|
|
ECS-1618-300-BN-TR
|
ECS Crystal
|
ECS-1618
|
30MHz
|
-40°C ~ 85°C
|
|
ECS-1633-480-BN-TR
|
ECS Crystal
|
ECS-1633
|
48MHz
|
-40°C ~ 85°C
|
|
ECS-1633-480-BN-TR
|
ECS Crystal
|
ECS-1633
|
48MHz
|
-40°C ~ 85°C
|
|
ECS-1633-480-BN-TR
|
ECS Crystal
|
ECS-1633
|
48MHz
|
-40°C ~ 85°C
|
|
ECS-1633-270-BN-TR
|
ECS Crystal
|
ECS-1633
|
27MHz
|
-40°C ~ 85°C
|
|
ECS-1633-270-BN-TR
|
ECS Crystal
|
ECS-1633
|
27MHz
|
-40°C ~ 85°C
|
|
ECS-1633-270-BN-TR
|
ECS Crystal
|
ECS-1633
|
27MHz
|
-40°C ~ 85°C
|
|
ECS-1618-060-BN-TR
|
ECS Crystal
|
ECS-1618
|
6MHz
|
-40°C ~ 85°C
|
|
ECS-1618-060-BN-TR
|
ECS Crystal
|
ECS-1618
|
6MHz
|
-40°C ~ 85°C
|
|
ECS-1618-060-BN-TR
|
ECS Crystal
|
ECS-1618
|
6MHz
|
-40°C ~ 85°C
|
|
ECS-1618-120-BN-TR
|
ECS Crystal
|
ECS-1618
|
12MHz
|
-40°C ~ 85°C
|
|
ECS-1618-120-BN-TR
|
ECS Crystal
|
ECS-1618
|
12MHz
|
-40°C ~ 85°C
|
|
ECS-1618-120-BN-TR
|
ECS Crystal
|
ECS-1618
|
12MHz
|
-40°C ~ 85°C
|
|
ECS-1618-192-BN-TR
|
ECS Crystal
|
ECS-1618
|
19.2MHz
|
-40°C ~ 85°C
|
|
ECS-1618-192-BN-TR
|
ECS Crystal
|
ECS-1618
|
19.2MHz
|
-40°C ~ 85°C
|
|
ECS-1618-192-BN-TR
|
ECS晶振
|
ECS-1618
|
19.2MHz
|
-40°C ~ 85°C
|
|
ECS-1618-260-BN-TR
|
ECS Crystal
|
ECS-1618
|
26MHz
|
-40°C ~ 85°C
|
|
ECS-1618-260-BN-TR
|
ECS Crystal
|
ECS-1618
|
26MHz
|
-40°C ~ 85°C
|
|
ECS-1618-260-BN-TR
|
ECS Crystal
|
ECS-1618
|
26MHz
|
-40°C ~ 85°C
|
|
ECS-1633-192-BN-TR
|
ECS Crystal
|
ECS-1633
|
19.2MHz
|
-40°C ~ 85°C
|
|
ECS-1633-192-BN-TR
|
ECS Crystal
|
ECS-1633
|
19.2MHz
|
-40°C ~ 85°C
|
|
ECS-1633-192-BN-TR
|
ECS Crystal
|
ECS-1633
|
19.2MHz
|
-40°C ~ 85°C
|
|
ECS-1633-240-BN-TR
|
ECS Crystal
|
ECS-1633
|
24MHz
|
-40°C ~ 85°C
|
