ECS-2520MVLC紧凑型低电流 MultiVolt™ 表面贴装振荡器具有扩展的输出频率范围，适用于各种时钟应用。
ECS-2520MVLC低电流振荡器在-40℃至+85℃范围内具有±50ppm的稳定性等级。有源晶体ECS-2520MVLC采用2.5mmx2.0mmx0.8mm陶瓷封装，四脚贴片晶振，具有MultiVoltTM功能，兼容1.8V、2.5V、3.0V或3.3V电源，并提供多种输出频率从:1MHz至75MHz。该器件是一款紧凑、高性能、低电流且具有成本竞争力的石英晶体振荡器，非常适合消费、工业和通信领域的便携式和空间受限应用。

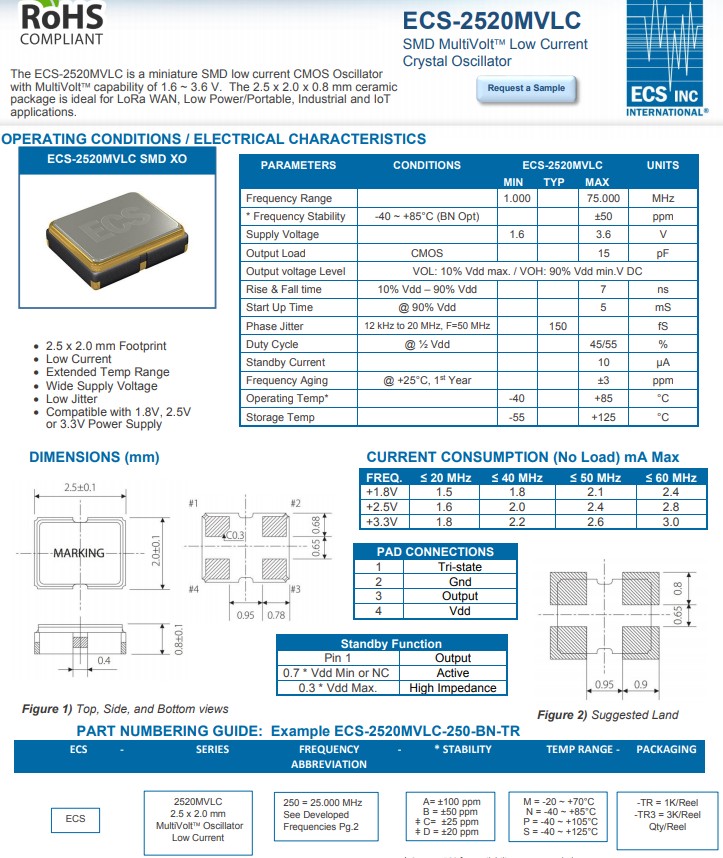

ECS-2520MVLC，编码ECS-2520MVLC-250-BN-TR，是一款小型SMD低电流CMOS振荡器，MultiVolt能力为1.6至3.6V，采用2.5x2.0x0.8mm陶瓷封装，非常适合LoRaWAN、低功耗/便携式、工业和物联网应用。
低电流振荡器ECS-2520MVLC-250-BN-TR非常适合LoRaWAN模块应用
|
原厂代码
|
品牌
|
Series型号
|
频率
|
工作温度
|
|
ECS-2520S33-100-EN-TR
|
ECScrystal
|
ECS-2520S
|
10MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-120-EN-TR
|
ECScrystal
|
ECS-2520S
|
12MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-160-EN-TR
|
ECScrystal
|
ECS-2520S
|
16MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-200-EN-TR
|
ECScrystal
|
ECS-2520S
|
20MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-240-EN-TR
|
ECScrystal
|
ECS-2520S
|
24MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-250-EN-TR
|
ECScrystal
|
ECS-2520S
|
25MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-260-EN-TR
|
ECScrystal
|
ECS-2520S
|
26MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-320-EN-TR
|
ECScrystal
|
ECS-2520S
|
32MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-400-EN-TR
|
ECScrystal
|
ECS-2520S
|
40MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-440-EN-TR
|
ECScrystal
|
ECS-2520S
|
44MHz
|
-40°C ~ 85°C
|
|
ECS-2520S33-500-EN-TR
|
ECScrystal
|
ECS-2520S
|
50MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-050-EN-TR
|
ECScrystal
|
ECS-2520S
|
5MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-100-EN-TR
|
ECS晶振
|
ECS-2520S
|
10MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-120-EN-TR
|
ECScrystal
|
ECS-2520S
|
12MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-160-EN-TR
|
ECScrystal
|
ECS-2520S
|
16MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-200-EN-TR
|
ECScrystal
|
ECS-2520S
|
20MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-240-EN-TR
|
ECScrystal
|
ECS-2520S
|
24MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-250-EN-TR
|
ECScrystal
|
ECS-2520S
|
25MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-260-EN-TR
|
ECScrystal
|
ECS-2520S
|
26MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-320-EN-TR
|
ECScrystal
|
ECS-2520S
|
32MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-400-EN-TR
|
ECScrystal
|
ECS-2520S
|
40MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-440-EN-TR
|
ECScrystal
|
ECS-2520S
|
44MHz
|
-40°C ~ 85°C
|
|
ECS-2520S30-500-EN-TR
|
ECScrystal
|
ECS-2520S
|
50MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-050-EN-TR
|
ECScrystal
|
ECS-2520S
|
5MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-100-EN-TR
|
ECScrystal
|
ECS-2520S
|
10MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-120-EN-TR
|
ECScrystal
|
ECS-2520S
|
12MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-160-EN-TR
|
ECScrystal
|
ECS-2520S
|
16MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-200-EN-TR
|
ECScrystal
|
ECS-2520S
|
20MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-240-EN-TR
|
ECScrystal
|
ECS-2520S
|
24MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-250-EN-TR
|
ECScrystal
|
ECS-2520S
|
25MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-260-EN-TR
|
ECScrystal
|
ECS-2520S
|
26MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-320-EN-TR
|
ECScrystal
|
ECS-2520S
|
32MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-400-EN-TR
|
ECScrystal
|
ECS-2520S
|
40MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-440-EN-TR
|
ECScrystal
|
ECS-2520S
|
44MHz
|
-40°C ~ 85°C
|
|
ECS-2520S25-500-EN-TR
|
ECScrystal
|
ECS-2520S
|
50MHz
|
-40°C ~ 85°C
|
|
ECS-2520S18-050-EN-TR
|
ECScrystal
|
ECS-2520S
|
5MHz
|
-40°C ~ 85°C
|
|
ECS-2520S18-100-EN-TR
|
ECScrystal
|
ECS-2520S
|
10MHz
|
-40°C ~ 85°C
|
低电流振荡器ECS-2520MVLC-250-BN-TR非常适合LoRaWAN模块应用
特征：
小体积晶振尺寸：2.5x2.0x0.8mm占用空间
扩展温度范围
MultiVolt TM与 1.8V、2.5V、3.0V或3.3V电源兼容
低抖动：150 fS（典型值）
低电流消耗：1.8V、20MHz 时最大1.5 mA（无负载）
待机电流：10µA
稳定性±50ppm at -40℃至+85℃
符合RoHS 3和REACH标准
应用：物联网，存储设备，导航，医疗（非生命维持），移动设备，工业的，无线设备，网络摄像机
