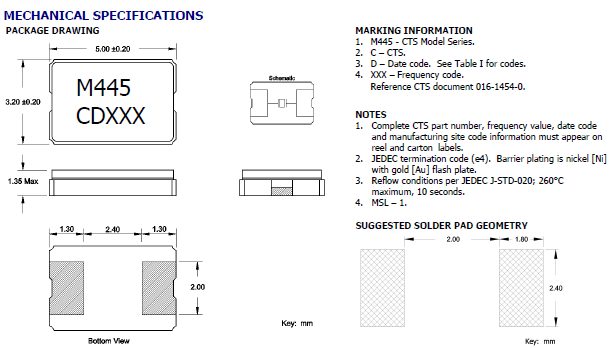

CTS晶振445,445C25D27M00000陶瓷晶振，美国CTS晶振公司,特点是:标准5.0mmx3.2mm玻璃密封包，基本晶体设计，频率范围8-50MHz，频率公差，±20ppm标准[其他公差可用]，频率稳定性，±30ppm标准[其他稳定性可用]，工作温度-40°C至+85°C，磁带和卷轴包装标准，EIA-481，RoHS符合欧盟指令2011/65/欧盟-无铅终端完成-豁免7(c)-I，含铅的电子元件445型是一种低成本设备，用于广泛的商业应用，包括笔记本电脑、计算机外设、视听、蓝牙和USB接口，pda，和汽车电子产品。
CTS晶振445,445C25D25M00000陶瓷晶振
|
CTS晶振规格
|
单位
|
晶振频率范围
|
石英晶振基本条件
|
|
标准频率
|
f_nom
|
30MHZ
|
标准频率
|
|
储存温度
|
T_stg
|
-40°C ～ +85°C
|
裸存
|
|
工作温度
|
T_use
|
-20°C ～ +70°C
|
标准温度
|
|
激励功率
|
DL
|
200μW Max.
|
推荐:1μW ～ 100μW
|
|
频率公差
|
f_— l
|
±20× 10-6 (标准),
(±15 × 10-6 ～ ±50 × 10-6 可用)
|
+25°C 对于超出标准的规格说明,
请联系我们以便获取相关的信息,http://www.epsoncrystal.com/
|
|
频率温度特征
|
f_tem
|
±50 × 10-6/-20°C ～ +70°C
|
超出标准的规格请联系我们.
|
|
负载电容
|
CL
|
18PF
|
不同负载电容要求,请联系我们.
|
|
串联电阻(ESR)
|
R1
|
如下表所示
|
-40°C — +85°C, DL = 100μW
|
|
频率老化
|
f_age
|
±5 × 10-6 / year Max.
|
+25°C,第一年
|
CTS晶振445,445C25D27M00000陶瓷晶振
|
CTS原厂编码
|
生产厂家
|
型号
|
频率
|
频率稳定度
|
频率偏差
|
负载电容
|
ESR电阻
|
|
445C35A12M00000
|
CTS晶振
|
445
|
12MHz
|
±50ppm
|
±30ppm
|
10pF
|
50 Ohm
|
|
445C35A12M00000
|
CTS晶振
|
445
|
12MHz
|
±50ppm
|
±30ppm
|
10pF
|
50 Ohm
|
|
445C35A12M00000
|
CTS晶振
|
445
|
12MHz
|
±50ppm
|
±30ppm
|
10pF
|
50 Ohm
|
|
445C25D25M00000
|
CTS晶振
|
445
|
25MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D25M00000
|
CTS晶振
|
445
|
25MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D25M00000
|
CTS晶振
|
445
|
25MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D24M00000
|
CTS晶振
|
445
|
24MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D24M00000
|
CTS晶振
|
445
|
24MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D24M00000
|
CTS晶振
|
445
|
24MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D12M00000
|
CTS晶振
|
445
|
12MHz
|
±50ppm
|
±20ppm
|
18pF
|
50 Ohm
|
|
445C25D12M00000
|
CTS晶振
|
445
|
12MHz
|
±50ppm
|
±20ppm
|
18pF
|
50 Ohm
|
|
445C25D12M00000
|
CTS晶振
|
445
|
12MHz
|
±50ppm
|
±20ppm
|
18pF
|
50 Ohm
|
|
445C25D20M00000
|
CTS晶振
|
445
|
20MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D20M00000
|
CTS晶振
|
445
|
20MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D20M00000
|
CTS晶振
|
445
|
20MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D27M00000
|
CTS晶振
|
445
|
27MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D27M00000
|
CTS晶振
|
445
|
27MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445C25D27M00000
|
CTS晶振
|
445
|
27MHz
|
±50ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D12M00000
|
CTS晶振
|
445
|
12MHz
|
±30ppm
|
±20ppm
|
18pF
|
50 Ohm
|
|
445I23D12M00000
|
CTS晶振
|
445
|
12MHz
|
±30ppm
|
±20ppm
|
18pF
|
50 Ohm
|
|
445I23D12M00000
|
CTS晶振
|
445
|
12MHz
|
±30ppm
|
±20ppm
|
18pF
|
50 Ohm
|
|
445I23D25M00000
|
CTS晶振
|
445
|
25MHz
|
±30ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D25M00000
|
CTS晶振
|
445
|
25MHz
|
±30ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D25M00000
|
CTS晶振
|
445
|
25MHz
|
±30ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D24M00000
|
CTS晶振
|
445
|
24MHz
|
±30ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D24M00000
|
CTS晶振
|
445
|
24MHz
|
±30ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D24M00000
|
CTS晶振
|
445
|
24MHz
|
±30ppm
|
±20ppm
|
18pF
|
40 Ohm
|
|
445I23D30M00000
|
CTS晶振
|
445
|
30MHz
|
±30ppm
|
±20ppm
|
18pF
|
30 Ohm
|
|
445I23D30M00000
|
CTS晶振
|
445
|
30MHz
|
±30ppm
|
±20ppm
|
18pF
|
30 Ohm
|
