E3WS,E3WSDC12-32.768K-TR,2012mm,32.768KHz,Ecliptek晶振，美国进口晶振，ECLIPTEK晶振，日蚀晶振，型号：E3WS系列，编码为：E3WSDC12-32.768K-TR，精度：±20ppm，工作温度范围：-40℃至+85℃，负载：12.5pF，频率：32.768KHz，小体积晶振尺寸：2.0x1.2x0.6mm，音叉晶体，两脚贴片晶振，2012晶振，石英晶振，手表晶体，无源晶振，SMD晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点。谐振器，应用于：可穿戴设备晶振，移动通讯晶振，无线蓝牙晶振，钟表电子晶振，仪器仪表晶振，数字电子等应用。

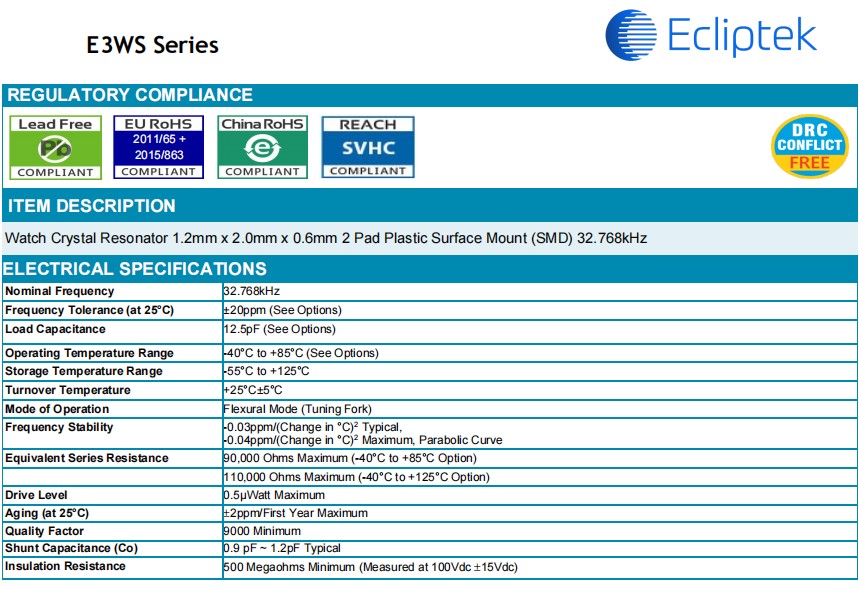

E3WS,E3WSDC12-32.768K-TR,2012mm,32.768KHz,Ecliptek晶振,参数表
|
Nominal Frequency
|
32.768kHz
|
|
Frequency Tolerance (at 25°C)
|
±20ppm (See Options)
|
|
Load Capacitance
|
12.5pF (See Options)
|
|
Operating Temperature Range
|
-40°C to +85°C (See Options)
|
|
Storage Temperature Range
|
-55°C to +125°C
|
|
Turnover Temperature
|
+25°C±5°C
|
|
Mode of Operation
|
Flexural Mode (Tuning Fork)
|
|
Frequency Stability
|
-0.03ppm/(Change in °C)2 Typical,
-0.04ppm/(Change in °C)2 Maximum, Parabolic Curve
|
|
Equivalent Series Resistance
|
90,000 Ohms Maximum (-40°C to +85°C Option)
|
|
|
110,000 Ohms Maximum (-40°C to +125°C Option)
|
|
Drive Level
|
0.5µWatt Maximum
|
|
Aging (at 25°C)
|
±2ppm/First Year Maximum
|
|
Quality Factor
|
9000 Minimum
|
|
Shunt Capacitance (Co)
|
0.9 pF ~ 1.2pF Typical
|
|
Insulation Resistance
|
500 Megaohms Minimum (Measured at 100Vdc ±15Vdc)
|

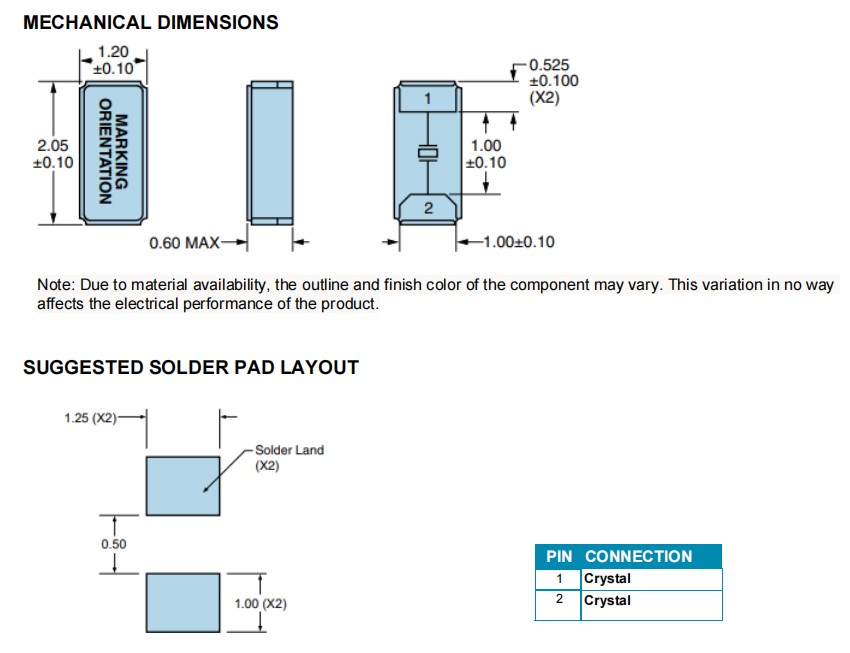

E3WS,E3WSDC12-32.768K-TR,2012mm,32.768KHz,Ecliptek晶振,尺寸图
|
制造商零件编号
|
进口晶振
|
系列
|
频率
|
频率稳定性
|
频率容差
|
负载电容
|
|
E8WSDC12-32.768K TR
|
Ecliptek晶振
|
E8WS
|
32.768 kHz
|
-
|
±20ppm
|
12.5pF
|
|
EA2532LA18-24.000M TR
|
Ecliptek晶振
|
EA2532
|
24 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SFA18-25.000M TR
|
Ecliptek晶振
|
E1S
|
25 MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
E1SJA18-25.000M TR
|
Ecliptek晶振
|
E1S
|
25 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SDA12-25.000M TR
|
Ecliptek晶振
|
E1S
|
25 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EA2532LA18-20.000M TR
|
Ecliptek晶振
|
EA2532
|
20 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2532QA18-24.000M TR
|
Ecliptek晶振
|
EA2532
|
24 MHz
|
±20ppm
|
±15ppm
|
18pF
|
|
EA2532QA18-25.000M TR
|
Ecliptek晶振
|
EA2532
|
25 MHz
|
±20ppm
|
±15ppm
|
18pF
|
|
EB1620JA10-27.120M TR
|
Ecliptek晶振
|
EB1620
|
27.12 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620JA10-20.000M TR
|
Ecliptek晶振
|
EB1620
|
20 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620JA10-19.200M TR
|
Ecliptek晶振
|
EB1620
|
19.2 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620JA10-26.000M TR
|
Ecliptek晶振
|
EB1620
|
26 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620JA10-27.000M TR
|
Ecliptek晶振
|
EB1620
|
27 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB2532JA12-24.000M TR
|
Ecliptek晶振
|
EB2532
|
24 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532JA12-27.000M TR
|
Ecliptek晶振
|
EB2532
|
27 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB1620YA10-24.000M TR
|
Ecliptek晶振
|
EB1620
|
24 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1620YA10-26.000M TR
|
Ecliptek晶振
|
EB1620
|
26 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1620YA10-24.576M TR
|
Ecliptek晶振
|
EB1620
|
24.576 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1620YA10-25.000M TR
|
Ecliptek晶振
|
EB1620
|
25 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB2532YA12-25.000M TR
|
Ecliptek晶振
|
EB2532
|
25 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB2532YA12-12.288M TR
|
Ecliptek晶振
|
EB2532
|
12.288 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB2532YA12-27.000M TR
|
Ecliptek晶振
|
EB2532
|
27 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB2532YA12-20.000M TR
|
Ecliptek晶振
|
EB2532
|
20 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB2532YA12-26.000M TR
|
Ecliptek晶振
|
EB2532
|
26 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB1216JA10-27.120M TR
|
Ecliptek晶振
|
EB1216
|
27.12 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1216JA10-27.000M TR
|
Ecliptek晶振
|
EB1216
|
27 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620YA10-32.000M TR
|
Ecliptek晶振
|
EB1620
|
32 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1620YA10-27.120M TR
|
Ecliptek晶振
|
EB1620
|
27.12 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1216YA10-27.000M TR
|
Ecliptek晶振
|
EB1216
|
27 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1216YA10-26.000M TR
|
Ecliptek晶振
|
EB1216
|
26 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1216YA10-25.000M TR
|
小体积晶振
|
EB1216
|
25 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EA2025JA18-25.000M TR
|
Ecliptek晶振
|
EA2025
|
25 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EB3250JA12-12.000M TR
|
Ecliptek晶振
|
EB3250
|
12 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB3250JA12-24.000M TR
|
Ecliptek晶振
|
EB3250
|
24 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EA3250FA18-25.000M TR
|
Ecliptek晶振
|
EA3250
|
25 MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
EA2532LA18-32.000M TR
|
Ecliptek晶振
|
EA2532
|
32 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2532LA18-12.000M TR
|
Ecliptek晶振
|
EA2532
|
12 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2532QA18-12.000M TR
|
Ecliptek晶振
|
EA2532
|
12 MHz
|
±20ppm
|
±15ppm
|
18pF
|
|
EB2532JA12-25.000M TR
|
Ecliptek晶振
|
EB2532
|
25 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532JA12-32.000M TR
|
Ecliptek晶振
|
EB2532
|
32 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532JA12-20.000M TR
|
Ecliptek晶振
|
EB2532
|
20 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB1620YA10-27.000M TR
|
Ecliptek晶振
|
EB1620
|
27 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB2532JA12-24.576M TR
|
Ecliptek晶振
|
EB2532
|
24.576 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532JA12-26.000M TR
|
Ecliptek晶振
|
EB2532
|
26 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532JA12-12.000M TR
|
Ecliptek晶振
|
EB2532
|
12 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532JA12-12.288M TR
|
Ecliptek晶振
|
EB2532
|
12.288 MHz
|
±30ppm
|
±15ppm
|
12pF
|
|
EB2532YA12-12.000M TR
|
Ecliptek晶振
|
EB2532
|
12 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB2532YA12-32.000M TR
|
Ecliptek晶振
|
EB2532
|
32 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB2532YA12-24.576M TR
|
Ecliptek晶振
|
EB2532
|
24.576 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB1216JA10-24.000M TR
|
Ecliptek晶振
|
EB1216
|
24 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1216JA10-24.576M TR
|
Ecliptek晶振
|
EB1216
|
24.576 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1216YA10-24.000M TR
|
Ecliptek晶振
|
EB1216
|
24 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1216YA10-24.576M TR
|
Ecliptek晶振
|
EB1216
|
24.576 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1620JA10-24.576M TR
|
Ecliptek晶振
|
EB1620
|
24.576 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620JA10-25.000M TR
|
Ecliptek晶振
|
EB1620
|
25 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1216YA10-32.000M TR
|
Ecliptek晶振
|
EB1216
|
32 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EB1620JA10-32.000M TR
|
Ecliptek晶振
|
EB1620
|
32 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1216YA10-27.120M TR
|
Ecliptek晶振
|
EB1216
|
27.12 MHz
|
±50ppm
|
±30ppm
|
10pF
|
|
EA2025SA10-32.000M TR
|
Ecliptek晶振
|
EA2025
|
32 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
E1SJA18-13.000M TR
|
Ecliptek晶振
|
E1S
|
13 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2025MA10-32.000M TR
|
Ecliptek晶振
|
EA2025
|
32 MHz
|
±20ppm
|
±15ppm
|
10pF
|
|
E1WCDA12-32.768K
|
Ecliptek晶振
|
E1WC
|
32.768 kHz
|
-
|
±20ppm
|
12.5pF
|
|
E1SJA18-20.000M TR
|
Ecliptek晶振
|
E1S
|
20 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SEA18-12.000M TR
|
Ecliptek晶振
|
E1S
|
12 MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
E1SJA18-12.000M TR
|
Ecliptek晶振
|
E1S
|
12 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SJA18-12.288M TR
|
Ecliptek晶振
|
E1S
|
12.288 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SJA18-15.000M TR
|
Ecliptek晶振
|
E1S
|
15 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SDA18-25.000M TR
|
Ecliptek晶振
|
E1S
|
25 MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
E1SGA18-25.000M TR
|
Ecliptek晶振
|
E1S
|
25 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2532QA18-26.000M TR
|
Ecliptek晶振
|
EA2532
|
26 MHz
|
±20ppm
|
±15ppm
|
18pF
|
|
EA2532QA18-20.000M TR
|
Ecliptek晶振
|
EA2532
|
20 MHz
|
±20ppm
|
±15ppm
|
18pF
|
|
EB2532YA12-24.000M TR
|
Ecliptek晶振
|
EB2532
|
24 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
EB1216JA10-26.000M TR
|
Ecliptek晶振
|
EB1216
|
26 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1620JA10-24.000M TR
|
Ecliptek晶振
|
EB1620
|
24 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
E1WSDA12-32.768K TR
|
Ecliptek晶振
|
E1WS
|
32.768 kHz
|
-
|
±20ppm
|
12.5pF
|
|
EA2025JA18-32.000M TR
|
Ecliptek晶振
|
EA2025
|
32 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2025JA10-24.000M TR
|
Ecliptek晶振
|
EA2025
|
24 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB3250YA12-12.000M TR
|
Ecliptek晶振
|
EB3250
|
12 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
E1SJA18-24.000M TR
|
Ecliptek晶振
|
E1S
|
24 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2532LA18-25.000M TR
|
Ecliptek晶振
|
EA2532
|
25 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
EA2532UA12-24.000M TR
|
Ecliptek晶振
|
EA2532
|
24 MHz
|
±15ppm
|
±10ppm
|
12pF
|
|
EB1216JA10-25.000M TR
|
Ecliptek晶振
|
EB1216
|
25 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB1216JA10-32.000M TR
|
Ecliptek晶振
|
EB1216
|
32 MHz
|
±30ppm
|
±15ppm
|
10pF
|
|
EB3250YA12-24.000M TR
|
Ecliptek晶振
|
EB3250
|
24 MHz
|
±50ppm
|
±30ppm
|
12pF
|
|
E3WSDC12-32.768K TR
|
Ecliptek晶振
|
E3WS
|
32.768 kHz
|
-
|
±20ppm
|
12pF
|
|
E1SJA18-24.576M TR
|
Ecliptek晶振
|
E1S
|
24.576 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SJA18-27.000M TR
|
Ecliptek晶振
|
E1S
|
27 MHz
|
±30ppm
|
±15ppm
|
18pF
|
|
E1SEA18-24.000M TR
|
Ecliptek晶振
|
E1S
|
24 MHz
|
±50ppm
|
±30ppm
|
18pF
|
