Geyer格耶石英贴片晶振KX-6E,12.8655,车载导航仪6G晶振

频率：16.000MHz

尺寸：2.5x2.0mm

Geyer格耶石英贴片晶振KX-6E,12.8655,车载导航仪6G晶振，丹麦进口晶振，Geyer格耶晶振，型号：KX-6E，编码为：12.8655，频率为：16.000MHz，负载：10pF，SMD石英晶体，小体积晶振尺寸：2.5x2.0mm，SMD石英晶体，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振。工作温度范围：-40℃至+105℃。具有超小型，轻薄型，耐热及耐环境特点。应用于：可穿戴设备，小型便捷式设备，智能手机，平板电脑，无线，蓝牙，汽车电子设备，车载导航仪，安防设备，数码电子等应用。

订购热线：0755-27838351

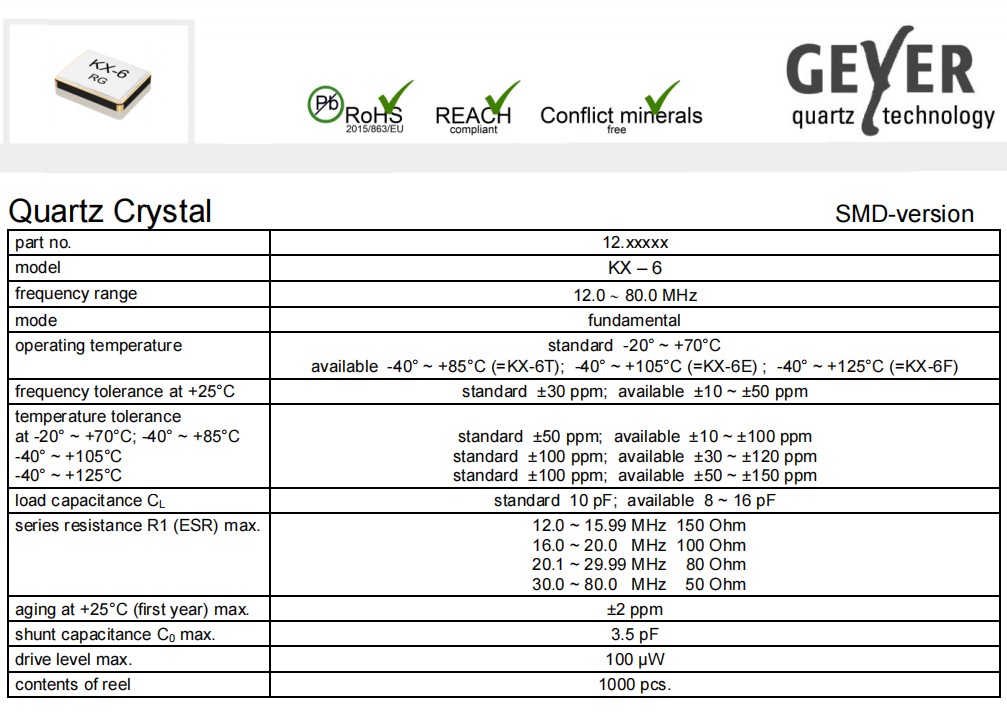

Geyer格耶石英贴片晶振KX-6E,12.8655,车载导航仪6G晶振，参数表

part no.	12.8655
model	KX - 6E
frequency range	16.000 MHz
mode	fundamental
operating temperature	standard -20° ~ +70°C available -40° ~ +85°C (=KX-6T); -40° ~ +105°C (=KX-6E) ; -40° ~ +125°C (=KX-6F)
frequency tolerance at +25°C	standard ±30 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C	standard ±50 ppm; available ±10 ~ ±100 ppm standard ±100 ppm; available ±30 ~ ±120 ppm standard ±100 ppm; available ±50 ~ ±150 ppm
load capacitance CL	standard 10 pF; available 8 ~ 16 pF
series resistance R1 (ESR) max.	12.0 ~ 15.99 MHz 150 Ohm 16.0 ~ 20.0 MHz 100 Ohm 20.1 ~ 29.99 MHz 80 Ohm 30.0 ~ 80.0 MHz 50 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	3.5 pF
drive level max.	100 µW
contents of reel	1000 pcs.

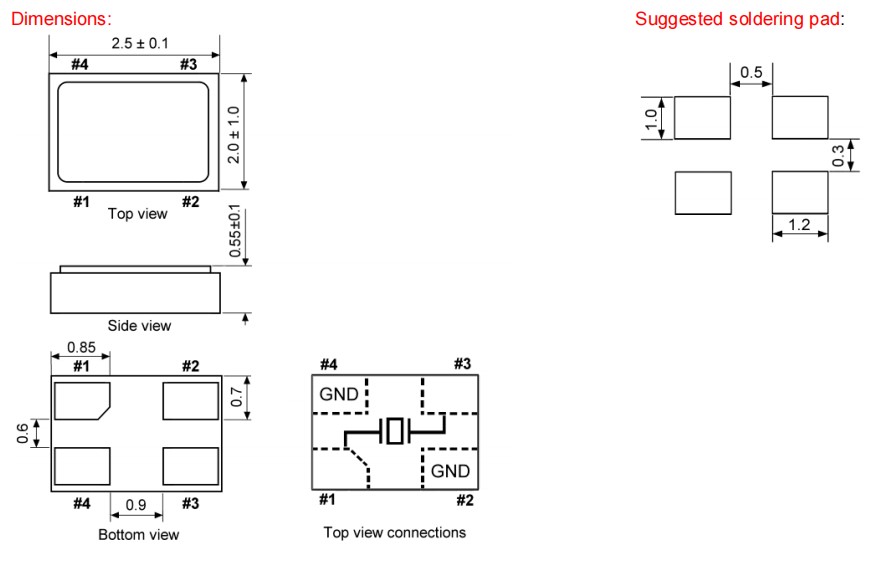

Geyer格耶石英贴片晶振KX-6E,12.8655,车载导航仪6G晶振，尺寸图

Geyer格耶石英贴片晶振KX-6E,12.8655,车载导航仪6G晶振

2520mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.

编码	晶振厂家	描述	型号	频率	频率稳定性
12.85536	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	40 MHz	±20ppm
12.86509	Geyer晶振	Cystal 48.0Mhz 10pF SMD	KX-6	48 MHz	±50ppm
12.85515	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5	27 MHz	±50ppm
12.86544	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm
12.85547	Geyer晶振	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm
12.85562	Geyer晶振	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm
12.86531	Geyer晶振	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm
12.86512	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm
12.8655	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm
12.86526	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm
12.85521	Geyer晶振	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm
12.86517	Geyer晶振	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm
12.85519	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm
12.85539	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm
12.8652	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm
12.86505	无源晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm
12.85518	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm
12.86556	Geyer晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm
12.86511	Geyer晶振	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm
12.86536	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm
12.8556	Geyer晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm
12.86561	Geyer晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm
12.86564	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm
12.86592	Geyer晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm
12.8716	Geyer晶振	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm
12.85559	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm
