Geyer格耶安防设备晶振,KX-9B,12.89495,两脚贴片晶振，Geyer格耶电子晶振，丹麦进口晶振，型号：KX-9B，编码为：12.89495，频率为：8MHz，负载电容16pF，精度±50ppm，小体积晶振，尺寸：5.0x3.2x1.1mm封装，两脚贴片晶振，无源晶振，石英晶振，SMD石英晶体，石英晶体谐振器，无铅环保晶振，工作温度范围：-20℃至+70℃。具有超小型，轻薄型，高精度，高可靠性，高性能，高品质，耐热及耐环境等特点。进口晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙模块，智能手机，平板电脑，安防设备，医疗设备，汽车电子，数码电子，智能家居，数码电子等应用。
Geyer格耶安防设备晶振,KX-9B,12.89495,两脚贴片晶振，参数表
|
part no.
|
12.89495
|
|
model
|
KX - 9B
|
|
frequency range
|
8.0 MHz
|
|
mode
|
fundamental
|
|
operating temperature
|
standard -20° ~ +70°C
available -40° ~ +85°C (=KX-9BT); -40° ~ +105°C (=KX-9BE)
|
|
frequency tolerance at +25°C
|
standard ±50 ppm; available ±10 ~ ±50 ppm
|
temperature tolerance
at -20° ~ +70°C; -40° ~ +85°C
-40° ~ +105°C
|
standard ±50 ppm; available ±10 ~ ±100 ppm
standard ±120 ppm; available ±30 ~ ±120 ppm
|
|
load capacitance CL
|
standard 16 pF; available 10 ~ 20 pF
|
|
series resistance R1 (ESR) max.
|
fundamental 8.0 ~ 16.0 MHz
16.1 ~ 20.0 MHz
20.1 ~ 50.0 MHz
|
100 Ohm
60 Ohm
40 Ohm
|
|
aging at +25°C (first year) max.
|
±2 ppm
|
|
shunt capacitance C0 max.
|
5.0 pF
|
|
drive level max.
|
200 µW
|
|
contents of reel
|
1000 pcs.
|

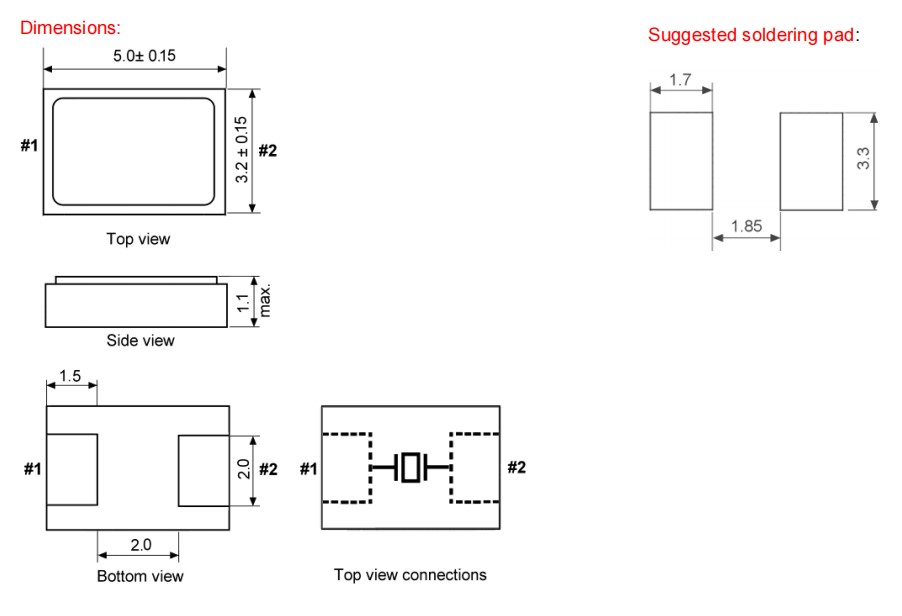

Geyer格耶安防设备晶振,KX-9B,12.89495,两脚贴片晶振，尺寸图
Geyer格耶安防设备晶振,KX-9B,12.89495,两脚贴片晶振
小型贴片石英晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
|
编码
|
无源晶振
|
描述
|
型号
|
频率
|
频率温度性
|
|
12.88722
|
Geyer格耶
|
Crystal 16.0Mhz SMD KX-7T 12pF,
|
KX-7T
|
16 MHz
|
±25ppm
|
|
12.86509
|
Geyer格耶
|
Cystal 48.0Mhz 10pF SMD
|
KX-6
|
48 MHz
|
±50ppm
|
|
12.8902
|
Geyer格耶
|
Crystal 32.0Mhz SMD KX-9A 16pF,
|
KX-9A
|
32 MHz
|
±10ppm
|
|
12.60233
|
Geyer格耶
|
CRYSTAL 25.0MHZ 12PF SMD
|
KX-7T
|
25 MHz
|
±20ppm
|
|
12.86544
|
Geyer格耶
|
Crystal 16.0Mhz 10pF SMD
|
KX-7E
|
24 MHz
|
±120ppm
|
|
12.8919
|
Geyer格耶
|
Crystal 8.0Mhz SMD KX-9AT 16pF,
|
KX-9AT
|
8 MHz
|
±30ppm
|
|
12.60208
|
Geyer格耶
|
CRYSTAL 26.0MHZ 8PF SMD
|
KX-7T
|
26 MHz
|
±10ppm
|
|
12.86531
|
Geyer格耶
|
Cystal 16.0Mhz 10pF SMD
|
KX-6T
|
16 MHz
|
±100ppm
|
|
12.88664
|
Geyer格耶
|
Crystal 14.3181800Mhz 12pF SMD
|
KX-7
|
14.31818 MHz
|
±50ppm
|
|
12.89495
|
Geyer格耶
|
Crystal 8.0Mhz SMD KX-9BH 8pF, 4
|
KX-9BH
|
8 MHz
|
±50ppm
|
|
12.89103
|
Geyer格耶
|
Crystal 10.0Mhz SMD KX-9AE 16pF,
|
KX-9AE
|
10 MHz
|
±50ppm
|
|
12.887
|
Geyer格耶
|
Crystal 30.0Mhz 12pF SMD
|
KX-7
|
30 MHz
|
±50ppm
|
|
12.89131
|
Geyer格耶
|
Crystal 48.0Mhz SMD KX-9AT 16pF,
|
KX-9AT
|
48 MHz
|
±50ppm
|
|
12.86512
|
Geyer格耶
|
Cystal 20.0Mhz 10pF SMD
|
KX-6
|
20 MHz
|
±50ppm
|
|
12.89126
|
Geyer格耶
|
Crystal 13.560Mhz SMD KX-9AE 16p
|
KX-9A
|
13.56 MHz
|
±120ppm
|
|
12.8655
|
Geyer格耶
|
Crystal 16.0Mhz 10pF SMD
|
KX-6E
|
16 MHz
|
±150ppm
|
|
12.86526
|
Geyer格耶
|
Cystal 26.0Mhz 10pF SMD
|
KX-6T
|
26 MHz
|
±20ppm
|
|
12.6009
|
Geyer格耶
|
CRYSTAL 24.0MHZ 12PF SMD
|
KX-7T
|
24 MHz
|
±20ppm
|
|
12.88701
|
Geyer格耶
|
Crystal 40.0Mhz 12pF SMD
|
KX-7T
|
40 MHz
|
±100ppm
|
|
12.88493
|
Geyer格耶
|
Crystal 33.33Mhz SMD KX-7T 12pF,
|
KX-7T
|
33.33333 MHz
|
±100ppm
|
|
12.89078
|
Geyer格耶
|
Crystal 27.0Mhz SMD KX-9AT 16pF,
|
KX-9AT
|
27 MHz
|
±150ppm
|
|
12.86517
|
Geyer格耶
|
Cystal 24.0Mhz 10pF SMD
|
KX-6
|
24 MHz
|
±50ppm
|
|
12.88508
|
Geyer格耶
|
Crystal 24.0Mhz 12pF SMD
|
KX-7T
|
24 MHz
|
±50ppm
|
|
12.88711
|
Geyer格耶
|
Crystal 25.0Mhz SMD KX-7T 12pF,
|
KX-7T
|
25 MHz
|
±30ppm
|
|
12.89027
|
Geyer格耶
|
Crystal 25.0Mhz SMD KX-9A 16pF,
|
KX-9A
|
25 MHz
|
±30ppm
|
|
12.88721
|
Geyer格耶
|
Crystal 16.0Mhz 12pF SMD
|
KX-7T
|
16 MHz
|
±30ppm
|
|
12.88667
|
Geyer格耶
|
Crystal 25.0Mhz SMD KX-7 12pF, 4
|
KX-7
|
25 MHz
|
±50ppm
|
|
12.89017
|
石英晶振
|
Crystal 13.560Mhz SMD KX-9A 16pF
|
KX-9A
|
13.56 MHz
|
±50ppm
|
|
12.89082
|
Geyer格耶
|
Crystal 26.0Mhz SMD KX-9AT 16pF,
|
KX-9AT
|
26 MHz
|
±50ppm
|
|
12.60075
|
Geyer格耶
|
Cystal 30.0Mhz 8pF SMD
|
KX-7
|
30 MHz
|
±50ppm
|
|
12.89155
|
Geyer格耶
|
Crystal 32.0Mhz SMD KX-9AT 16pF,
|
KX-9AT
|
32 MHz
|
±30ppm
|
|
12.88522
|
Geyer格耶
|
Crystal 11.059200Mhz 12pF SMD
|
KX-7T
|
11.0592 MHz
|
±50ppm
|
|
12.88752
|
Geyer格耶
|
Crystal 10.0Mhz 12pF SMD
|
KX-7
|
10 MHz
|
±50ppm
|
|
12.88565
|
Geyer格耶
|
Crystal 8.0Mhz 12pF SMD
|
KX-7E
|
8 MHz
|
±50ppm
|
|
12.86533
|
Geyer格耶
|
Cystal 26.0Mhz 10pF SMD
|
KX-6T
|
26 MHz
|
±100ppm
|
|
12.89209
|
Geyer格耶
|
Crystal 16.0Mhz SMD KX-9AE 20pF,
|
KX-9AE
|
16 MHz
|
±50ppm
|
|
12.8652
|
Geyer格耶
|
Cystal 27.0Mhz 10pF SMD
|
KX-6
|
27 MHz
|
±50ppm
|
|
12.86574
|
Geyer格耶
|
Crystal 27.0Mhz 8pF SMD
|
KX-6F
|
27 MHz
|
±150ppm
|
|
12.86527
|
Geyer格耶
|
Cystal 20.0Mhz 10pF SMD
|
KX-6T
|
20 MHz
|
±15ppm
|
|
12.86505
|
Geyer格耶
|
Cystal 26.0Mhz 10pF SMD
|
KX-6
|
26 MHz
|
±50ppm
|
|
12.60024
|
Geyer格耶
|
Cystal 27.0Mhz 12pF SMD
|
KX-7E
|
27 MHz
|
±100ppm
|
|
12.8873
|
Geyer格耶
|
Crystal 26.0Mhz 12pF SMD
|
KX-7T
|
26 MHz
|
±50ppm
|
|
12.86556
|
Geyer格耶
|
Crystal 40.0Mhz 8pF SMD
|
KX-6T
|
40 MHz
|
±20ppm
|
|
12.88643
|
Geyer格耶
|
Crystal 14.3181800Mhz 12pF SMD
|
KX-7T
|
14.31818 MHz
|
±50ppm
|
|
12.86511
|
Geyer格耶
|
Crystal 18.4320Mhz 10pF SMD
|
KX-6
|
18.432 MHz
|
±50ppm
|
|
12.88523
|
Geyer格耶
|
Crystal 40.0Mhz 12pF SMD
|
KX-7F
|
40 MHz
|
±50ppm
|
|
12.89288
|
Geyer格耶
|
Crystal 24.5760Mhz SMD KX-9AT 20
|
KX-9AT
|
24.576 MHz
|
±30ppm
|
|
12.86536
|
Geyer格耶
|
Crystal 14.318180Mhz 10pF SMD
|
KX-6
|
14.31818 MHz
|
±50ppm
|
|
12.89029
|
Geyer格耶
|
Crystal 27.0Mhz SMD KX-9A 16pF,
|
KX-9A
|
27 MHz
|
±50ppm
|
|
12.88799
|
Geyer格耶
|
Crystal 12.0Mhz 10pF SMD
|
KX-7
|
12 MHz
|
±30ppm
|
|
12.88756
|
Geyer格耶
|
Crystal 10.0Mhz 12pF SMD
|
KX-7E
|
26 MHz
|
±50ppm
|
|
12.86561
|
Geyer格耶
|
Crystal 40.0Mhz 10pF SMD
|
KX-6T
|
40 MHz
|
±20ppm
|
|
12.8877
|
Geyer格耶
|
Crystal 30.0Mhz 12pF SMD
|
KX-7T
|
30 MHz
|
±10ppm
|
|
12.86564
|
Geyer格耶
|
Crystal 14.318180Mhz 10pF SMD
|
KX-6T
|
14.31818 MHz
|
±100ppm
|
|
12.86592
|
Geyer格耶
|
Crystal 25.0Mhz SMD KX-6T 12pF,
|
KX-6T
|
25 MHz
|
±20ppm
|
|
12.60023
|
Geyer格耶
|
Cystal 48.0Mhz 12pF SMD
|
KX-7E
|
48 MHz
|
±50ppm
|
