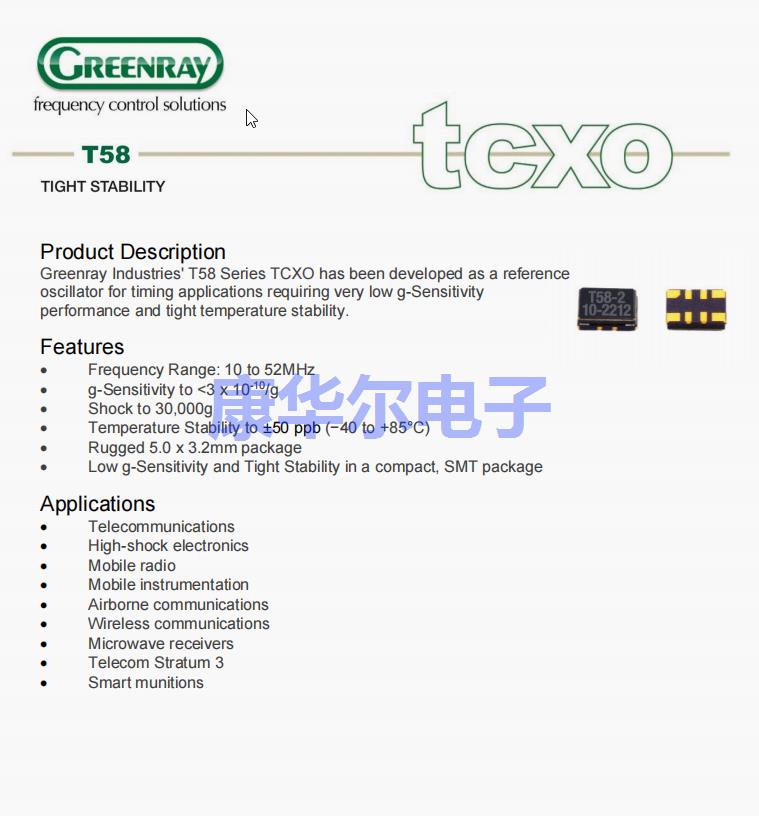

进口GREENRAY晶振中的T58系列晶振频率范围是10~50MHz，频率范围：10-52MHz，灵敏度<3 x 10-10/g，冲击到30000g，温度稳定性±50ppb（−40到+85°C），坚固5.0 x 3.2mm封装，低g-灵敏度和紧密稳定性，SMT封装。格林雷晶振多被应用于通讯，高冲击电子设备，移动无线电通信，移动仪表，机载通信，无线通信，微波接收机。温度补偿晶体振荡器又称温补晶振，是指在一定的温度范围内通过一定的补偿方式，而保持晶体振荡器的输出频率在一定的精度范围内的晶体振荡器。
GREENRAY晶振,5032贴片晶振,TCXO温补晶振,T58系列晶振,进口晶体振荡器
|
Electrical Characteristics
|
|
Electrical Characteristics
|
|
Parameter
|
Conditions
|
Min
|
Typical
|
Max
|
Units
|
Ordering Code
|
|
Nominal Frequency
|
+25°C
|
10
|
|
52
|
MHz
|
|
|
Frequency Stability (other
stability available, please
contact factory)
|
-40°C to +85°C
|
|
± 0.05
|
|
ppm
|
T58
|
|
-40°C to +105°C
|
|
± 0.1
|
|
ppm
|
J17
|
|
Aging
|
1ST years
|
|
|
± 1.0
|
ppm
|
|
|
10 years
|
|
|
± 4.0
|
ppm
|
|
|
Acceleration Sensitivity
|
Worst axis tested @ 90 Hz, 10 g
|
|
|
NA
|
x10-10/g
|
SD
|
|
|
|
5.0
|
x10-10/g
|
LG
|
|
|
|
3.0
|
x10-10/g
|
ULG
|
|
Freq. vs Reflow
|
After 24 hrs recovery
|
|
|
1.0
|
ppm
|
|
|
Voltage Control
|
VC=0 to Supply, Positive Slope
|
|
± 8.0
|
|
ppm
|
|
|
Phase Noise Performance
|
|
Parameter
|
Frequency Offset (Hz)
|
Min
|
Typical
|
Max
|
Units
|
Ordering Code
|
|
Static @ 20 MHz Nom.
Freq.
|
10
|
|
-100
|
|
dBc/Hz
|
|
|
100
|
|
-124
|
|
dBc/Hz
|
|
|
1 k
|
|
-144
|
|
dBc/Hz
|
|
|
10 k
|
|
-155
|
|
dBc/Hz
|
|
|
100 k
|
|
-159
|
|
dBc/Hz
|
|
|
Floor
|
|
-160
|
|
dBc/Hz
|
|
|
DC Supply
|
|
Parameter
|
Conditions
|
Min
|
Typical
|
Max
|
Units
|
Ordering Code
|
|
Supply Voltage
|
|
3.0
|
3.3
|
3.6
|
Vdc
|
3.3
|
|
Supply Current
|
CMOS
|
|
|
6
|
mA
|
|
|
Clipped Sinewave
|
|
|
3
|
mA
|
|
|
RF Output
|
|
Parameter
|
Conditions
|
Min
|
Typical
|
Max
|
Units
|
Ordering Code
|
|
CMOS
|
|
|
|
|
|
C
|
|
Load
|
|
|
15
|
|
pF
|
|
|
Levels
|
Supply Voltage=3.3V
|
+ 2.8
“1” Level
|
|
+ 0.2
“0” Level
|
V
|
|
|
Symmetry
|
|
40
|
50
|
60
|
%
|
|
|
Clipped Sine
|
|
|
|
|
|
CS
|
|
Load
|
|
|
10 pF//
10 kΩ
|
|
|
|
|
Level
|
|
+ 0.8
|
|
|
V p-p
|
|
