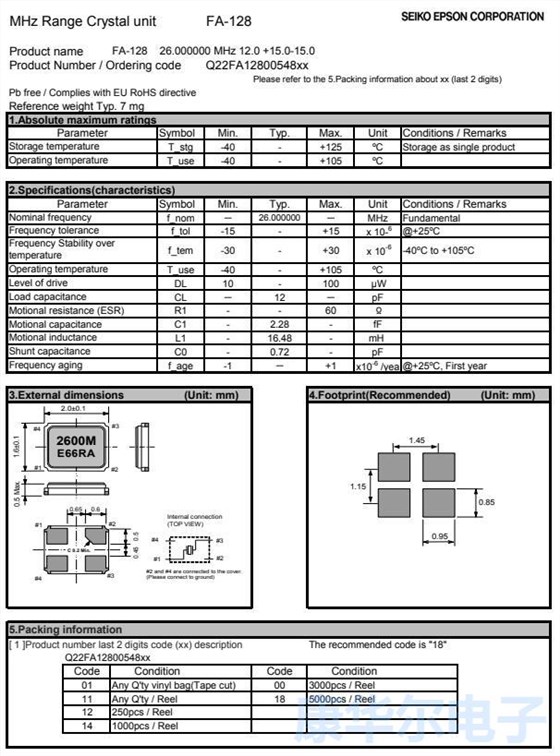

车规级爱普生晶振Q22FA1280054800应用在智能汽车的高温环境
此产品有三种标准尺寸外观为3.2mmx2.5mm的支持的频率于12MHz及66MHz之间,2.5mmx2.0mm的支持的频率为16MHz至66MHz之间,2.0mmx1.6mm的支持24MHz至66MHz间的频率.其陶瓷表面黏着封装为完全密封,而且已确保机械完整性.
适合用在汽车产品应用,不论是在引擎盖下或乘客乘坐空间内均可采用.此产品通过AEC-Q200认证,而且-40℃至125℃-40℃至105℃及-40℃至85℃温度范围均可用.装置通过PPAP,且以IATF16949标准认证的生产设施制造.车规级爱普生晶振,Q22FA1280054800智能汽车晶振
爱普生晶振编码
长x宽x高
型号
石英晶振频率
负载
频率25°C
频率公差
工作温度范围
ESR最大
驱动电平
Q22FA1280053300
2x1.6x0.5mm
FA-128
24.576000MHz
20pF
+/-15ppm
+/-15ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280054100
2x1.6x0.5mm
FA-128
20.000000MHz
15pF
+/-10ppm
+/-10ppm
-20to+75°C
≤100Ω
≤100µW
Q22FA1280054800
2x1.6x0.5mm
FA-128
26.000000MHz
12pF
+/-15ppm
+/-30ppm
-40to+105°C
≤60Ω
≤100µW
Q22FA1280055100
2x1.6x0.5mm
FA-128
27.120000MHz
6pF
+/-30ppm
+/-30ppm
-40to+105°C
≤60Ω
≤100µW
Q22FA1280055200
2x1.6x0.5mm
FA-128
19.200000MHz
12pF
+/-30ppm
+/-30ppm
-20to+75°C
≤150Ω
≤100µW
Q22FA1280055900
2x1.6x0.5mm
FA-128
25.000000MHz
10pF
+/-30ppm
+/-30ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280056000
2x1.6x0.5mm
FA-128
25.000000MHz
18pF
+/-30ppm
+/-30ppm
-40to+85°C
≤50Ω
≤100µW
Q22FA1280056100
2x1.6x0.5mm
FA-128
24.000000MHz
12pF
+/-20ppm
+/-20ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280056700
2x1.6x0.5mm
FA-128
27.120000MHz
8pF
+/-15ppm
+/-15ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280056900
2x1.6x0.5mm
FA-128
25.000000MHz
8pF
+/-10ppm
+/-20ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280057000
2x1.6x0.5mm
FA-128
25.000000MHz
10pF
+/-10ppm
+/-20ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280057700
2x1.6x0.5mm
FA-128
48.000000MHz
7pF
+/-10ppm
+/-15ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280058100
2x1.6x0.5mm
FA-128
50.000000MHz
8pF
+/-30ppm
+/-50ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280058800
2x1.6x0.5mm
FA-128
24.000000MHz
8pF
+/-10ppm
+/-10ppm
-30to+85°C
≤80Ω
≤100µW
Q22FA1280059400
2x1.6x0.5mm
FA-128
24.000000MHz
9pF
+/-10ppm
+/-15ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280059800
2x1.6x0.5mm
FA-128
40.000000MHz
12pF
+/-10ppm
+/-20ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280063700
2x1.6x0.5mm
FA-128
24.576000MHz
8pF
+/-10ppm
+/-20ppm
-40to+85°C
≤80Ω
≤100µW
Q22FA1280064600
2x1.6x0.5mm
FA-128
38.400000MHz
8pF
+/-10ppm
+/-15ppm
-30to+85°C
≤60Ω
≤100µW
Q22FA1280065200
2x1.6x0.5mm
FA-128
52.000000MHz
10pF
+/-25ppm
+/-25ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280065500
2x1.6x0.5mm
FA-128
40.000000MHz
10pF
+/-10ppm
+/-10ppm
-30to+85°C
≤60Ω
≤100µW
Q22FA1280065600
2x1.6x0.5mm
FA-128
37.400000MHz
18pF
+/-10ppm
+/-20ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280065800
2x1.6x0.5mm
FA-128
31.948800MHz
8pF
+/-30ppm
+/-30ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280066200
2x1.6x0.5mm
FA-128
16.000000MHz
12pF
+/-10ppm
+/-20ppm
-40to+85°C
≤200Ω
≤100µW
Q22FA1280066300
2x1.6x0.5mm
FA-128
27.000000MHz
8pF
+/-10ppm
+/-30ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280066900
2x1.6x0.5mm
FA-128
24.000000MHz
10pF
+/-15ppm
+/-20ppm
-40to+85°C
≤50Ω
≤100µW
Q22FA1280068100
2x1.6x0.5mm
FA-128
27.000000MHz
7pF
+/-10ppm
+/-30ppm
-30to+85°C
≤60Ω
≤100µW
Q22FA1280068800
2x1.6x0.5mm
FA-128
37.400000MHz
12pF
+/-10ppm
+/-18ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280069200
2x1.6x0.5mm
FA-128
24.000000MHz
18pF
+/-30ppm
+/-30ppm
-40to+85°C
≤50Ω
≤100µW
Q22FA1280069300
2x1.6x0.5mm
FA-128
50.000000MHz
18pF
+/-20ppm
+/-50ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280069700
2x1.6x0.5mm
FA-128
40.000000MHz
8pF
+/-10ppm
+/-20ppm
-40to+85°C
≤60Ω
≤100µW
压电谐振：在晶片的两极加交变电压,当交变电压的频率与晶片的固有频率相等时发生压电谐振,振幅达到最大.固有频率与晶片的切割方式、几何形状及尺寸有关.并联型石英晶体振荡电路交流等效电路串联型石英晶体振荡电路
并联型/串联型石英晶体振荡电路石英晶体振荡器最突出的特点就是振荡频率稳定性好.石英晶体的基本特征压电效应：在石英晶片的两极加一电场,晶片将产生机械变形;反之若在晶片上施加机械压力,在晶片相应的方向上会产生一定的电场.
车规级爱普生晶振,Q22FA1280054800智能汽车晶振
晶体满足超音波焊接制程的要求,此制程较传统方式更为干净,适用于制造密封对象(如TPMS),也可用在制造精确度与可靠性需求超高的汽车组件.
晶体能够在至多1,500g离心力之中维持运作,并通过美国汽车工程师学会(SAE)针对TPMS制定的J2657规格标准,此标准现为新车在全球上市一定要具备的安全功能.晶体可抵抗高达8,000g的冲击,远优于标准所要求的1,500g.此产品也能够承受从1.2公尺高处坠落,表现超越业界标准JIS-C0044的跌落测试.
推出一系列符合汽车规格的计时晶体,可承受严苛的作业环境,确保胎压监控系统(TPMS)、信息娱乐与远程信息、先进驾驶辅助系统(ADAS)维持出色的准确度与可靠性.
