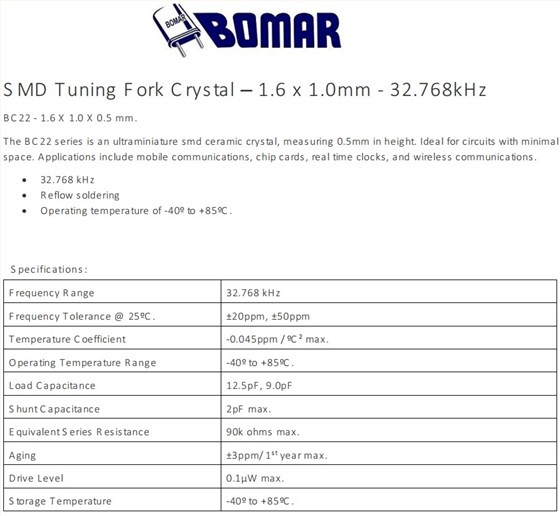

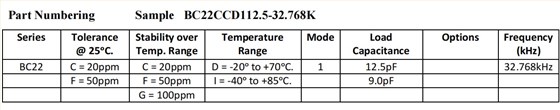

BC22,BC22CCI112.5-32.768K,1610mm,32.768KHz,Bomar品牌，美国进口晶振，Bomar博马尔晶振，型号：BC22，编码为：BC22CCI112.5-32.768K，精度：±20ppm，稳定性：±20ppm，负载：12.5pF，频率为：32.768KHz，工作温度范围：-40℃至+85℃。小体积晶振尺寸：1.6x1.0x0.5mm，两脚贴片晶振，1610晶振，无源晶振，石英晶振，手表晶体，石英晶体谐振器，无铅环保晶振，超小型晶振，轻薄型晶振。BC22系列是一种超薄的SMD石英晶振。非常适用于空间最小的电路。应用程序：移动通信、时钟晶振，芯片卡、实时时钟，无线通信，智能手机，仪器仪表设备，钟表电子，电脑，数码电子等应用。
BC22,BC22CCI112.5-32.768K,1610mm,32.768KHz,Bomar品牌,参数表
Frequency Range
32.768 kHz
Frequency Tolerance @ 25℃.
±20ppm, ±50ppm
Temperature Coefficient
-0.045ppm / ℃² max.
Operating Temperature Range
-40℃ to +85℃
Load Capacitance
12.5pF, 9.0pF
Shunt Capacitance
2pF max.
Equivalent Series Resistance
90k ohms max.
Aging
±3ppm/ 1styear max.
Drive Level
0.1µW max.
Storage Temperature
-40º to +85℃.

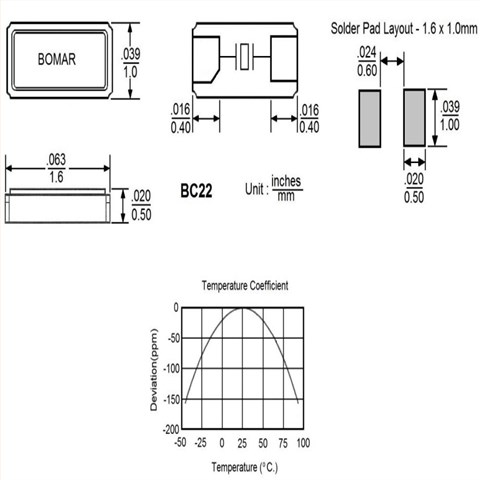

BC22,BC22CCI112.5-32.768K,1610mm,32.768KHz,Bomar品牌,尺寸图
