欧美松图晶振,6G信号放大器晶振,SXT22410AA17-19.200M石英晶振
prevnext

欧美松图晶振,6G信号放大器晶振,SXT22410AA17-19.200M石英晶振

频率：19.2MHZ

尺寸：2520mm

   欧美松图晶振,6G信号放大器晶振,SXT22410AA17-19.200M石英晶振，美国SUNTSU晶振公司，超小型晶振，无源晶振，欧美晶振，贴片晶振，四脚晶振，高精度晶振，6G信号放大器晶振，2520晶振，石英晶振，±10ppm/±10ppm（公差/稳定性）可用超微型包装切割基本磁带和卷轴，蓝牙晶振，6G无线局域网晶振，高密度应用程序，PCMCIA，无线应用设备，计算机和调制解调器。
订购热线：0755-27838351
QQ咨询 点击这里给我发消息

   欧美松图晶振,6G信号放大器晶振,SXT22410AA17-19.200M石英晶振，美国SUNTSU晶振公司，超小型晶振，无源晶振，欧美晶振，贴片晶振，四脚晶振，高精度晶振，6G信号放大器晶振，2520晶振，石英晶振，±10ppm/±10ppm（公差/稳定性）可用超微型包装切割基本磁带和卷轴，蓝牙晶振，6G无线局域网晶振，高密度应用程序，PCMCIA，无线应用设备，计算机和调制解调器。

欧美松图晶振,6G信号放大器晶振,SXT22410AA17-19.200M石英晶振

电气参数 单位 最小值 典型的 最大值 注意
频率范围 MHz 12 66      AT-Cut Fundamental.
频率公差 at +25ºC ppm --10 +10      See part numbering guide for options.
工作温度下的频率稳定度 ppm --10 +10      See part numbering guide for options.
老化 ppm --2 +2      First year @ +25ºC.
工作温度 °C --40 +85      See part numbering guide for options.
储存温度 °C --40 +125
负载电容 pF 8 20      See part numbering guide for options.
并联电容 pF 3
驱动电平 µW 50 100
绝缘电阻 M? 500      @ 100VDC ± 15V.

欧美松图晶振,6G信号放大器晶振,SXT22410AA17-19.200M石英晶振

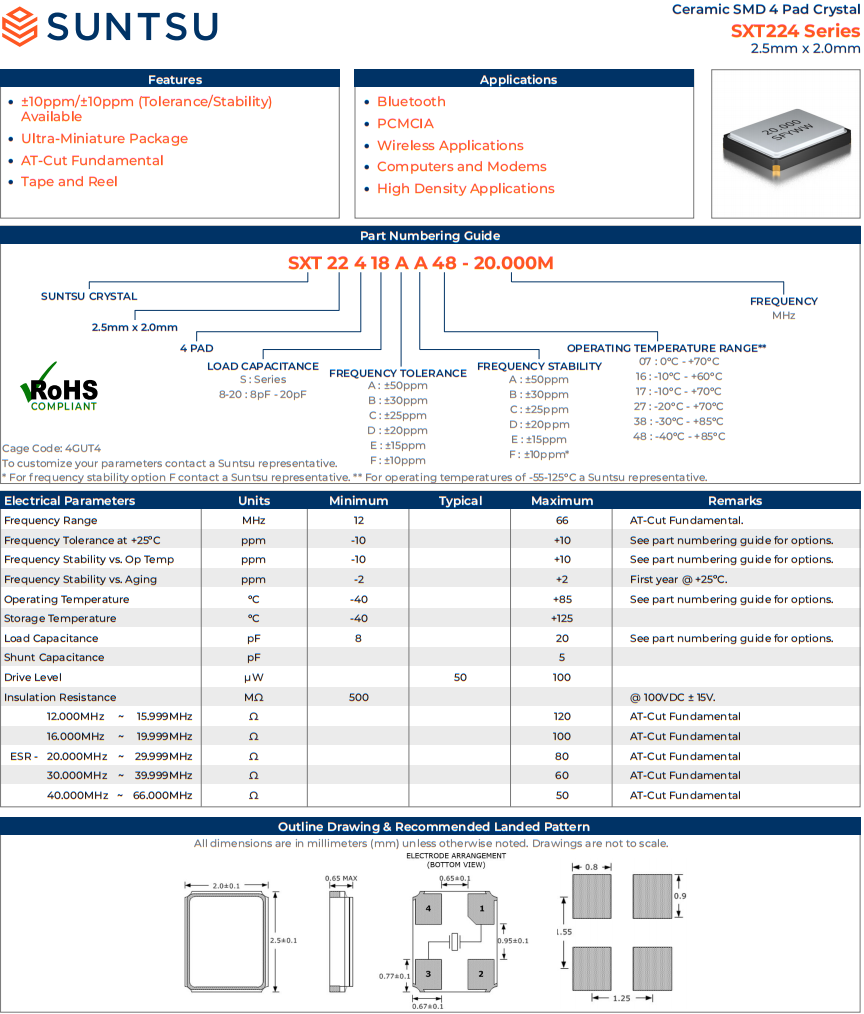

SXT224

stx224

SUNTSU原厂编码 封装尺寸 负载电荷 频率偏差度 频率
SXT22410AA07-12.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 12.000M
SXT22410AA07-12.288M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 12.288M
SXT22410AA07-13.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 13.000M
SXT22410AA07-13.560M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 13.560M
SXT22410AA07-14.31818M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 14.31818M
SXT22410AA07-14.7456M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 14.7456M
SXT22410AA07-16.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 16.000M
SXT22410AA07-16.384M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 16.384M
SXT22410AA07-18.432M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 18.432M
SXT22410AA07-19.200M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 19.200M
SXT22410AA07-20.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 20.000M
SXT22410AA07-22.1184M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 22.1184M
SXT22410AA07-24.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 24.000M
SXT22410AA07-24.576M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 24.576M
SXT22410AA07-25.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 25.000M
SXT22410AA07-26.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 26.000M
SXT22410AA07-27.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 27.000M
SXT22410AA07-27.120M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 27.120M
SXT22410AA07-30.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 30.000M
SXT22410AA07-32.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 32.000M
SXT22410AA07-37.400M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 37.400M
SXT22410AA07-38.400M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 38.400M
SXT22410AA07-40.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 40.000M
SXT22410AA07-48.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 48.000M
SXT22410AA07-50.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 50.000M
SXT22410AA16-12.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 12.000M
SXT22410AA16-12.288M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 12.288M
SXT22410AA16-13.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 13.000M
SXT22410AA16-13.560M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 13.560M
SXT22410AA16-14.31818M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 14.31818M
SXT22410AA16-14.7456M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 14.7456M
SXT22410AA16-16.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 16.000M
SXT22410AA16-16.384M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 16.384M
SXT22410AA16-18.432M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 18.432M
SXT22410AA16-19.200M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 19.200M
SXT22410AA16-20.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 20.000M
SXT22410AA16-22.1184M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 22.1184M
SXT22410AA16-24.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 24.000M
SXT22410AA16-24.576M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 24.576M
SXT22410AA16-25.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 25.000M
SXT22410AA16-26.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 26.000M
SXT22410AA16-27.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 27.000M
SXT22410AA16-27.120M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 27.120M
SXT22410AA16-30.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 30.000M
SXT22410AA16-32.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 32.000M
SXT22410AA16-37.400M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 37.400M
SXT22410AA16-38.400M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 38.400M
SXT22410AA16-40.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 40.000M
SXT22410AA16-48.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 48.000M
SXT22410AA16-50.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 50.000M
SXT22410AA17-12.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 12.000M
SXT22410AA17-12.288M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 12.288M
SXT22410AA17-13.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 13.000M
SXT22410AA17-13.560M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 13.560M
SXT22410AA17-14.31818M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 14.31818M
SXT22410AA17-14.7456M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 14.7456M
SXT22410AA17-16.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 16.000M
SXT22410AA17-16.384M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 16.384M
SXT22410AA17-18.432M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 18.432M
SXT22410AA17-19.200M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 19.200M
SXT22410AA17-20.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 20.000M
SXT22410AA17-22.1184M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 22.1184M
SXT22410AA17-24.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 24.000M
SXT22410AA17-24.576M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 24.576M
SXT22410AA17-25.000M 2.5X2.0 SMD (4 PAD) CRYSTAL 10pF ±50ppm 25.000M
