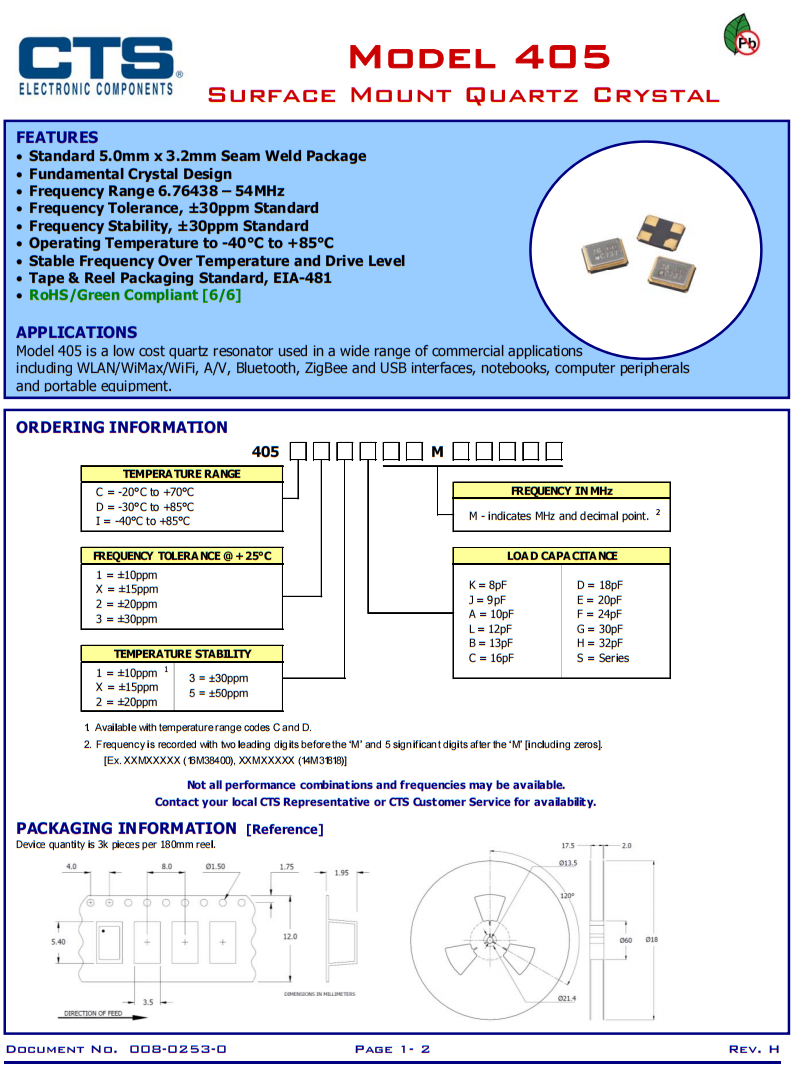

405C35B15M36000,15.36MHz,30ppm,13PF,-20~70℃,5032，美国CTS晶振公司，标准5.0mm x 3.2mm焊缝包装，基本晶体设计频率范围6.76438-54MHz频率公差，±30ppm标准频率稳定，±30ppm，标准工作温度-40°C+85°C，稳定频率超过温度和驱动器水平，磁带和卷轴包装标准，EIA-481，RoHS/绿色兼容[6/6]，405型是一种低成本的石英谐振器，广泛应用于包括WLAN/WiMax/WiFi、A/V、蓝牙、ZigBee和USB接口、笔记本电脑、计算机外设和便携式设备。
|

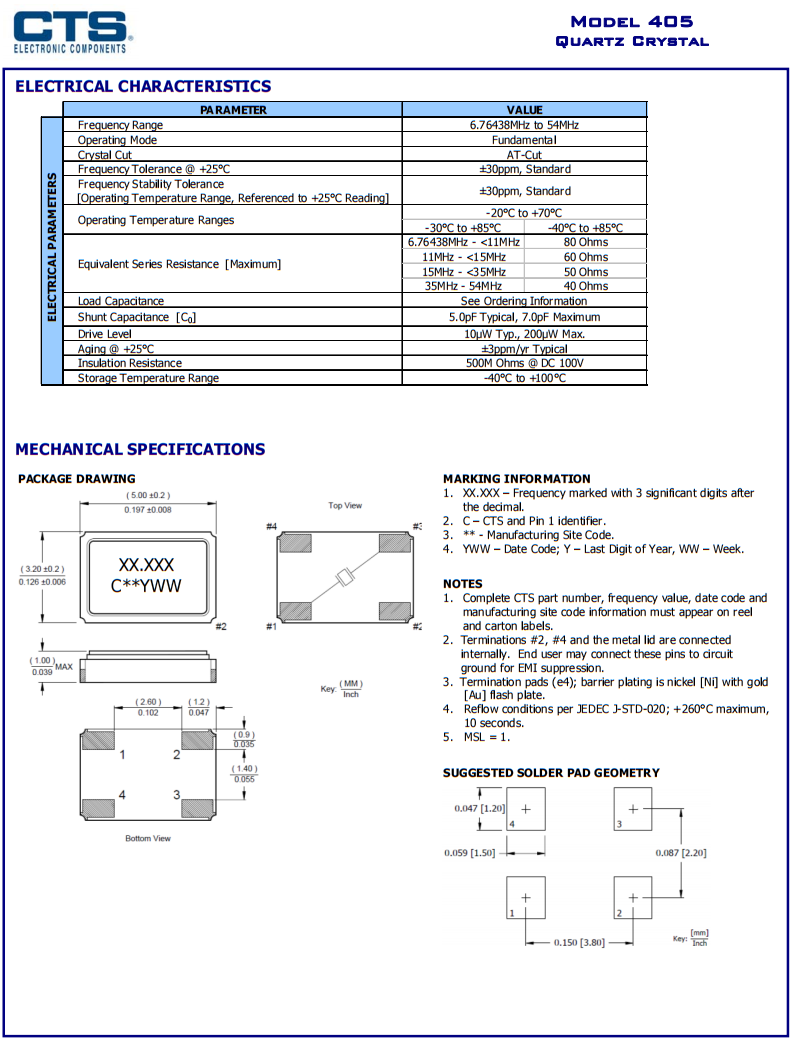

PARAMETER
|
VALUE
|
|
Frequency Range
|
15.36MHz
|
|
Operating Mode
|
Fundamental
|
|
Crystal Cut
|
AT-Cut
|
|
Frequency Tolerance @ +25°C
|
±30ppm, Standard
|
Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]
|
±30ppm, Standard
|
|
Operating Temperature Ranges
|
-20°C to +70°C
|
|
-30°C to +85°C
|
-40°C to +85°C
|
|
Equivalent Series Resistance [Maximum]
|
6.76438MHz - <11MHz
|
80 Ohms
|
|
11MHz - <15MHz
|
60 Ohms
|
|
15MHz - <35MHz
|
50 Ohms
|
|
35MHz - 54MHz
|
40 Ohms
|
|
Load Capacitance
|
See Ordering Information
|
|
Shunt Capacitance [C0]
|
5.0pF Typical, 7.0pF Maximum
|
|
Drive Level
|
10µW Typ., 200µW Max.
|
|
Aging @ +25°C
|
±3ppm/yr Typical
|
|
Insulation Resistance
|
500M Ohms @ DC 100V
|
|
Storage Temperature Range
|
-40°C to +100°C
|
CTS晶振405,405I35D48M00000石英晶振
|
CTS原厂编码
|
生产厂家
|
型号
|
Type 系列
|
频率
|
频率稳定度
|
频率偏差
|
负载电容
|
|
405C35B16M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
16MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405I35D12M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
12MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
405C35B25M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
25MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405I35D25M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
25MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
405C35D12M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
12MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
405C35B12M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
12MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405C35B24M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
24MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405C35D27M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
27MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
405C35B16M36800
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
16.368MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405C35B19M20000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
19.2MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405I35D48M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
48MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
405C35B11M05920
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
11.0592MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405C35E16M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
16MHz
|
±50ppm
|
±30ppm
|
20pF
|
|
405C35D10M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
10MHz
|
±50ppm
|
±30ppm
|
18pF
|
|
405C11B26M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
26MHz
|
±10ppm
|
±10ppm
|
13pF
|
|
405C11A16M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
16MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
405C11A19M20000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
19.2MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
405C35B12M80000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
12.8MHz
|
±50ppm
|
±30ppm
|
13pF
|
|
405C35B13M00000
|
CTS-Frequency Controls
|
405
|
MHz Crystal
|
13MHz
|
±50ppm
|
±30ppm
|
13pF
|
