3225mm,CX325Z-A5B3C5-50-75.0D16,75MHz,CX325,Cardinal晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CX325，编码为：CX325Z-A5B3C5-50-75.0D16，频率为：75.000MHz，小体积晶振尺寸：3.2x2.5x0.7mm封装，小型薄型表面贴装水晶，包装是自动表面安装的理想选择，四脚贴片晶振，石英晶体，无源晶振，石英晶体谐振器，3225晶振，SMD石英晶体，无铅晶振，工作温度范围：-20℃至+70℃。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境等特点。石英晶振，被广泛应用于：蓝牙模块，WiFi，无线局域网，物联网，可穿戴设备，通讯设备，无线网络，汽车电子，小型便捷式设备，数码电子，智能家居等应用。

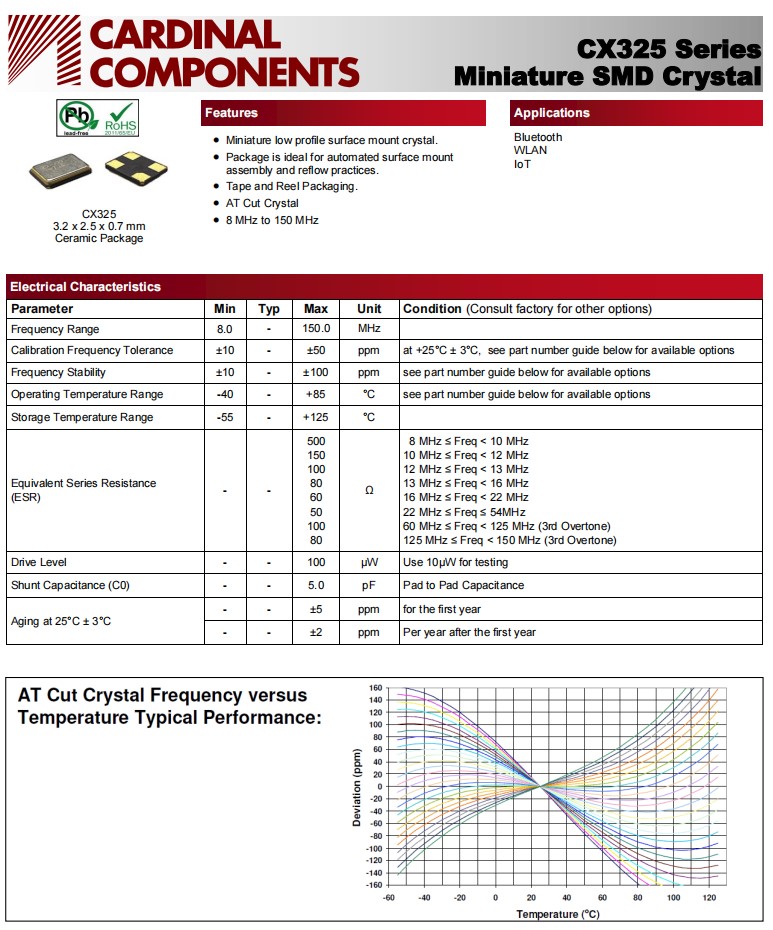

3225mm,CX325Z-A5B3C5-50-75.0D16,75MHz,CX325,Cardinal晶振,参数表
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Condition (Consult factory for other options)
|
|
Frequency Range
|
|
75.0
|
|
MHz
|
|
|
Calibration Frequency Tolerance
|
±10
|
-
|
±50
|
ppm
|
at +25°C ± 3°C, see part number guide below for available options
|
|
Frequency Stability
|
±10
|
-
|
±100
|
ppm
|
see part number guide below for available options
|
|
Operating Temperature Range
|
-40
|
-
|
+85
|
°C
|
see part number guide below for available options
|
|
Storage Temperature Range
|
-55
|
-
|
+125
|
°C
|
|
Equivalent Series Resistance
(ESR)
|
-
|
-
|
500
150
100
80
60
50
100
80
|
a
|
8 MHz ≤ Freq < 10 MHz
10 MHz ≤ Freq < 12 MHz
12 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 22 MHz
22 MHz ≤ Freq ≤ 54MHz
60 MHz ≤ Freq < 125 MHz (3rd Overtone)
125 MHz ≤ Freq < 150 MHz (3rd Overtone)
|
|
Drive Level
|
-
|
-
|
100
|
µW
|
Use 10µW for testing
|
|
Shunt Capacitance (C0)
|
-
|
-
|
5.0
|
pF
|
Pad to Pad Capacitance
|
|
Aging at 25°C ± 3°C
|
-
|
-
|
±5
|
ppm
|
for the first year
|
|
-
|
-
|
±2
|
ppm
|
Per year after the first year
|
3225mm,CX325Z-A5B3C5-50-75.0D16,75MHz,CX325,Cardinal晶振,尺寸图
3225mm,CX325Z-A5B3C5-50-75.0D16,75MHz,CX325,Cardinal晶振
产品特点：
外形尺寸：3.2x2.5x0.7mm
频率范围：8MHz至150MHz石英晶体谐振器
微型低剖面表面贴装水晶。
包装是自动表面安装的理想选择
组装和回流实践。
磁带和卷轴包装。
AT切割水晶
应用于：蓝牙，无线局域网，物联网
|
原厂编码
|
石英晶振厂家
|
型号
|
系列
|
频率
|
频率稳定度
|
|
CTF6-A2C5-32.768KD12.5
|
Cardinal晶振
|
CTF6
|
kHz Crystal (Tuning Fork)
|
32.768kHz
|
-
|
|
CX5Z-A5B2C5-70-7.37280D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
7.3728MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-12.288D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12.288MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-16.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
16MHz
|
±30ppm
|
|
CX5Z-ARB2C5-70-7.3728D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
7.3728MHz
|
±50ppm
|
|
CX325Z-A5B2C5-50-20.0D18
|
Cardinal晶振
|
CX325
|
MHz Crystal
|
20MHz
|
±50ppm
|
|
CX635A-A5B2C3-40-18.432D13
|
Cardinal晶振
|
CX635A
|
MHz Crystal
|
18.432MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-12.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12MHz
|
±30ppm
|
|
CX5Z-A5B2C5-40-27.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
27MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-24.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-24.576D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24.576MHz
|
±50ppm
|
|
CX5Z-A5B2C5-70-8.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
8MHz
|
±50ppm
|
|
CX5Z-A1B2C5-40-24.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24MHz
|
±50ppm
|
|
CX5Z-A5B2C5-50-16.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
16MHz
|
±50ppm
|
|
CX5Z-A0B2C5-50-16.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
16MHz
|
±50ppm
|
|
CX5Z-A2B2C5-40-10.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
10MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-1966080D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
19.6608MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-33.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
33MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-27.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
27MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-20.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
20MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-14.7456D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
14.7456MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-12.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-50.0D18
|
进口晶振
|
CX532
|
MHz Crystal
|
50MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-30.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
30MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-27.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
27MHz
|
±30ppm
|
|
CX532AZ-A5B2C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A5B3C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-20.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
20MHz
|
±30ppm
|
|
CX5Z-A2B2C5-70-8.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
8MHz
|
±50ppm
|
|
CX5Z-A2B2C5-40-25D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-8.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
8MHz
|
±30ppm
|
|
CX5Z-A2B2C5-40-12.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
12MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-12.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
12MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-10.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
10MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-25D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX635BZ-A1B2C3-80-14.31818D20
|
Cardinal晶振
|
CX635B
|
MHz Crystal
|
14.31818MHz
|
±50ppm
|
|
CX532Z-A5B3C5-70-18.432D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
18.432MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±30ppm
|
