频率:16.9344MHz
尺寸:3.2x2.5mm
A30100-16.9344-8,3225mm,16.9344MHz,ITTI品牌,香港ITTI晶振,型号:A30系列,编码为:A30100-16.9344-8,频率为:16.9344MHz,负载电容:8pF,小体积晶振尺寸:3.2x2.5mm,四脚贴片晶振,无源晶振,石英晶体谐振器,石英贴片晶振,无铅环保晶振,工作温度范围:-20°C to +70°C / -30°C to +85°C,具有超小型,轻薄型,耐热及耐环境特点。石英晶振,典型应用于:HDD, USB,SSB蓝光光盘,可穿戴设备,无线,蓝牙,车载电子,医疗设备,安防设备,数码电子应用。

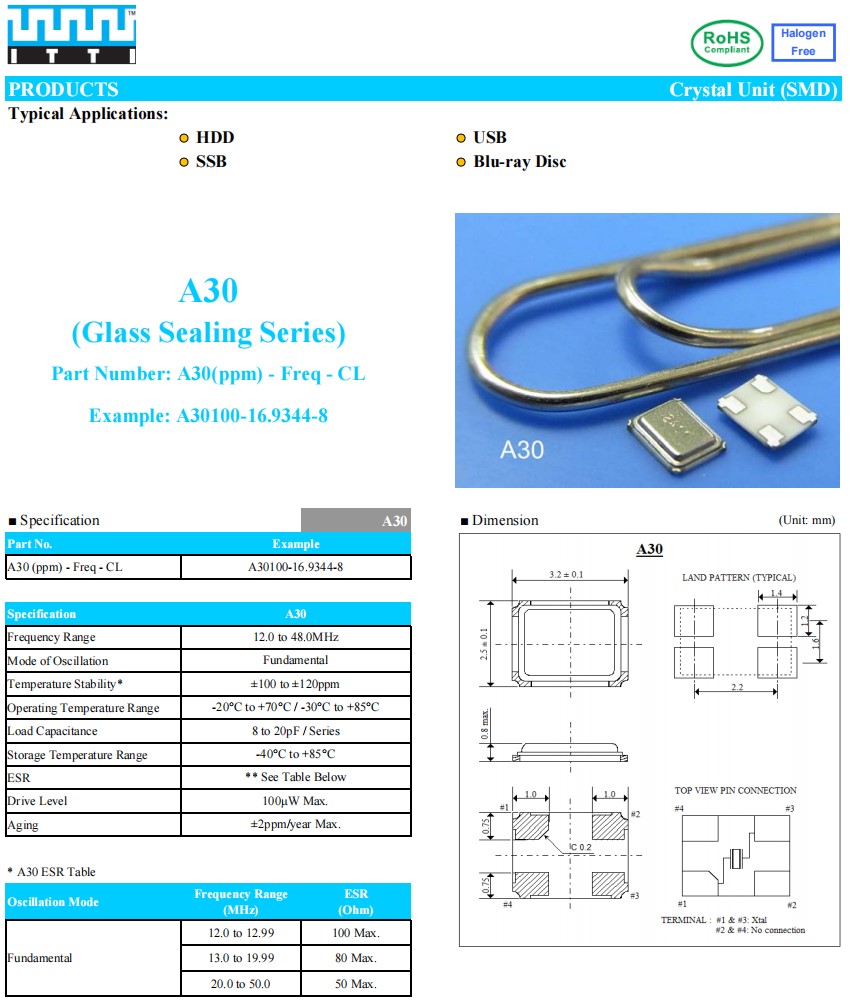

A30100-16.9344-8,3225mm,16.9344MHz,ITTI品牌,参数表
Frequency Range
16.9344 MHz
Mode of Oscillation
Fundamental
Temperature Stability*
±100 to ±120ppm
Operating Temperature Range
-20°C to +70°C / -30°C to +85°C
Load Capacitance
8 to 20pF / Series
Storage Temperature Range
-40°C to +85°C
ESR
** See Table Below
Drive Level
100μW Max.
Aging
±2ppm/year Max.

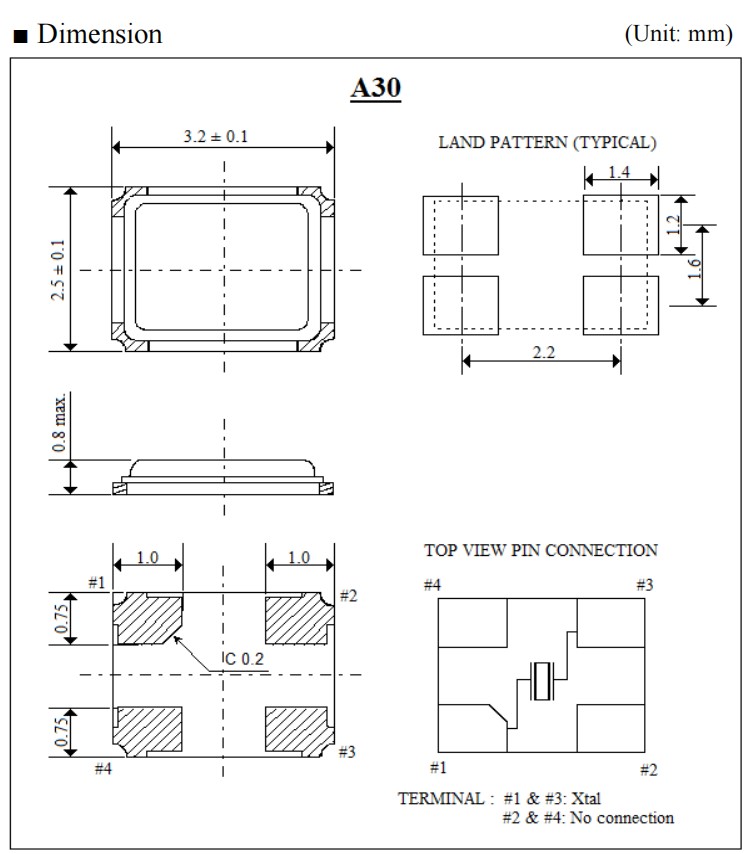

A30100-16.9344-8,3225mm,16.9344MHz,ITTI品牌,尺寸图
