7050mm,CX5Z-A2B3C2-25-45.0D18,CX5,Cardinal蓝牙应用晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CX5系列晶振，编码为：CX5Z-A2B3C2-25-45.0D18，频率为：45.000MHz，小体积晶振尺寸：7.0x5.0x1.4mm封装，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶振，SMD晶振，7050晶振，无铅晶振，工作温度范围：-40℃至+85℃，微型低剖面表面贴装水晶，封装是自动化表面安装组装和回流实践的理想选择，AT切割水晶。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境等特点。被广泛应用于：通讯设备，无线网络，蓝牙晶振，无线局域网，物联网，仪器仪表设备，汽车电子，导航仪，医疗设备，数码电子等应用。

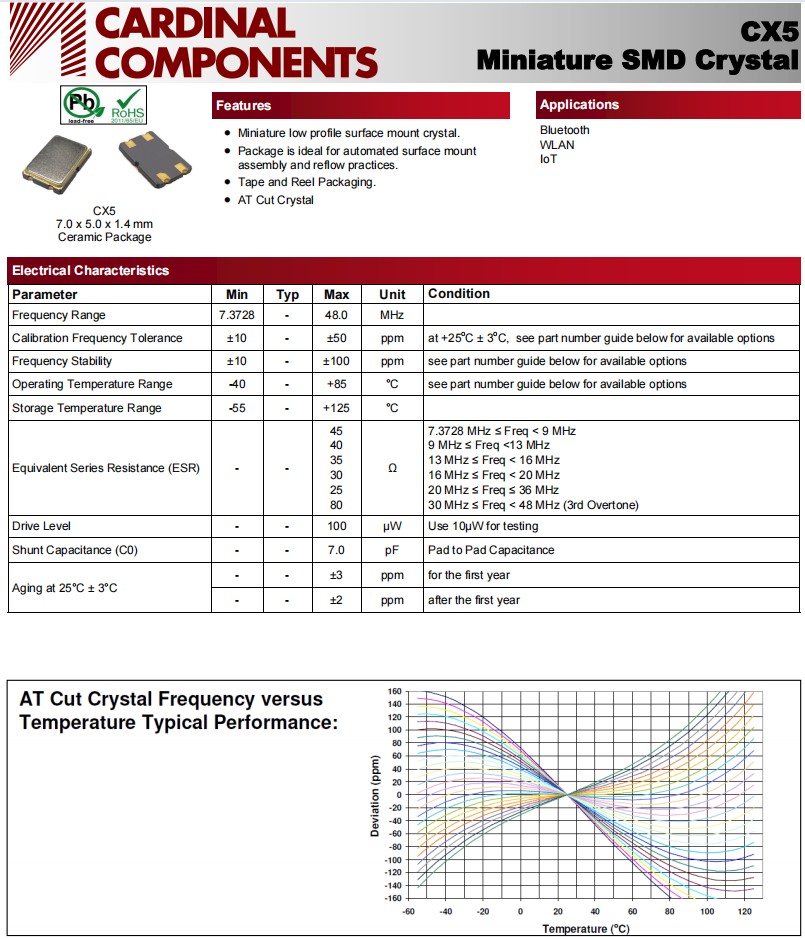

7050mm,CX5Z-A2B3C2-25-45.0D18,CX5,Cardinal蓝牙应用晶振,参数表
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Condition
|
|
Frequency Range
|
|
45
|
|
MHz
|
|
|
Calibration Frequency Tolerance
|
±10
|
-
|
±50
|
ppm
|
at +25oC ± 3oC, see part number guide below for available options
|
|
Frequency Stability
|
±10
|
-
|
±100
|
ppm
|
see part number guide below for available options
|
|
Operating Temperature Range
|
-40
|
-
|
+85
|
°C
|
see part number guide below for available options
|
|
Storage Temperature Range
|
-55
|
-
|
+125
|
°C
|
|
|
Equivalent Series Resistance (ESR)
|
-
|
-
|
45
40
35
30
25
80
|
Ω
|
7.3728 MHz ≤ Freq < 9 MHz
9 MHz ≤ Freq <13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 20 MHz
20 MHz ≤ Freq ≤ 36 MHz
30 MHz ≤ Freq < 48 MHz (3rd Overtone)
|
|
Drive Level
|
-
|
-
|
100
|
µW
|
Use 10µW for testing
|
|
Shunt Capacitance (C0)
|
-
|
-
|
7.0
|
pF
|
Pad to Pad Capacitance
|
|
Aging at 25°C ± 3°C
|
-
|
-
|
±3
|
ppm
|
for the first year
|
|
-
|
-
|
±2
|
ppm
|
after the first year
|
7050mm,CX5Z-A2B3C2-25-45.0D18,CX5,Cardinal蓝牙应用晶振,尺寸图
|
原厂编码
|
晶振厂家
|
型号
|
系列
|
频率
|
频率稳定度
|
|
CX5Z-A5B2C5-70-7.37280D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
7.3728MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-12.288D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12.288MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-16.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
16MHz
|
±30ppm
|
|
CX5Z-ARB2C5-70-7.3728D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
7.3728MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-12.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12MHz
|
±30ppm
|
|
CX5Z-A5B2C5-40-27.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
27MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-24.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-24.576D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24.576MHz
|
±50ppm
|
|
CX5Z-A5B2C5-70-8.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
8MHz
|
±50ppm
|
|
CX5Z-A1B2C5-40-24.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24MHz
|
±50ppm
|
|
CX5Z-A5B2C5-50-16.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
16MHz
|
±50ppm
|
|
CX5Z-A0B2C5-50-16.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
16MHz
|
±50ppm
|
|
CX5Z-A2B2C5-40-10.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
10MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-1966080D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
19.6608MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-33.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
33MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-27.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
27MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-20.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
20MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-14.7456D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
14.7456MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-12.0D18
|
石英晶振
|
CX532
|
MHz Crystal
|
12MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-50.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
50MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-30.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
30MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-27.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
27MHz
|
±30ppm
|
|
CX532AZ-A5B2C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A5B3C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-20.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
20MHz
|
±30ppm
|
|
CX5Z-A2B2C5-70-8.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
8MHz
|
±50ppm
|
|
CX5Z-A2B2C5-40-25D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-8.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
8MHz
|
±30ppm
|
|
CX5Z-A2B2C5-40-12.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
12MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-12.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
12MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-10.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
10MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-25D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A5B3C5-70-18.432D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
18.432MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±30ppm
|
