FOX福克斯C5BQ贴片晶振,FQ5032B-19.6608车载导航晶振，美国福克斯晶振，进口晶振，C5BQ是一款小体积晶振尺寸5.0x3.2mm晶振，四脚贴片晶振，FQ5032B-20.000无源晶振，FQ5032B-24.576石英晶振，石英晶体谐振器，FQ5032B-16.000石英水晶振动子，FQ5032BR-24.000无铅环保晶振，SMD晶振，具有超小型，轻薄型，耐热及耐环境特点，被广泛用于通讯设备晶振，电脑用晶振，无线网络晶振，蓝牙模块晶振，汽车电子晶振，车载导航晶振，GPS定位系统晶振，物联网晶振，数码电子等应用。

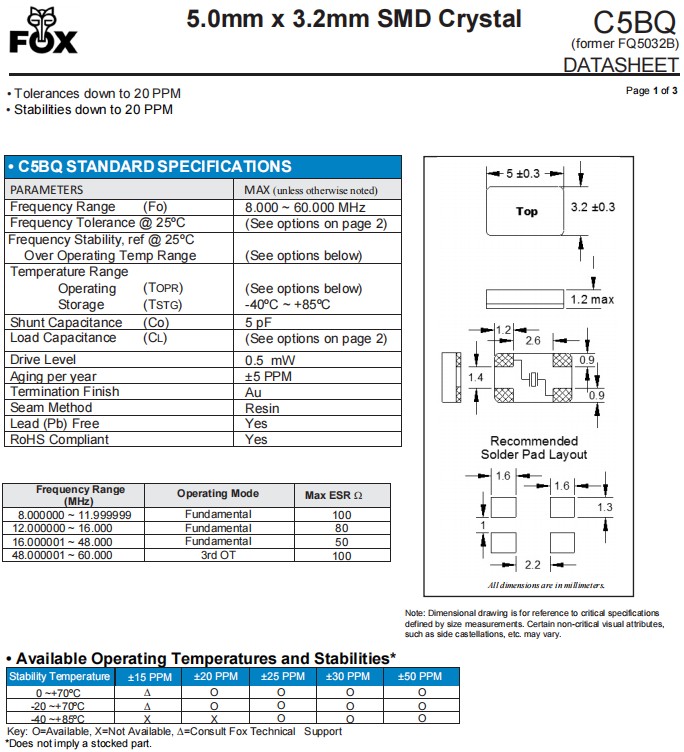

FOX福克斯C5BQ贴片晶振,FQ5032B-19.6608车载导航晶振，参数图
|
PARAMETERS
|
MAX (unless otherwise noted)
|
|
Frequency Range
|
8.000 ~60.000 MHz
|
|
Frequency Tolerance @ 25ºC
|
(See options on page 2)
|
|
Frequency Stability, ref @ 25ºC
|
(See options below)
|
|
Temperature Range
|
|
|
Operating (TOPR)
|
(see options below)
|
|
Storage (TSTG)
|
-40ºC ~ +85ºC
|
|
Shunt Capacitance (Co)
|
5pF
|
|
Load Capacitance (Cl)
|
(See options on page 2)
|
|
Drive Level
|
0.5 mW (10uW typical)
|
|
Aging per year
|
±5 PPM
|
|
Termination Finish
|
Au
|
|
Seam Method
|
Resin
|
|
Lead (Pb) Free
|
Yes
|
|
RoHS Compliant
|
Yes
|

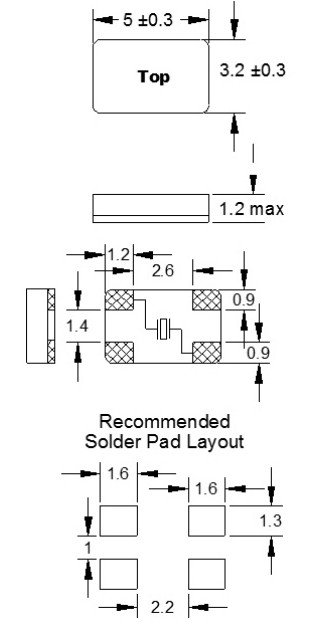

FOX福克斯C5BQ贴片晶振,FQ5032B-19.6608车载导航晶振，尺寸图
自动安装时的冲击：
石英晶振自动安装和真空化引发的冲击会破坏SMD晶振产品特性并影响这些产品。请设置安装条件以尽可能将冲击降至最低,并确保在安装前未对晶振特性产生影响。条件改变时,请重新检查安装条件。同时,在安装前后,请确保石英晶振产品未撞击机器或其他电路板等。
每个封装类型的注意事项
陶瓷包装晶振与SON产品
在焊接陶瓷晶振和SON产品 (陶瓷包装是指晶振外观采用陶瓷制品) 之后,弯曲电路板会因机械应力而导致焊接部分剥落或封装分裂（开裂）。尤其在焊接这些产品之后进行电路板切割时,务必确保在应力较小的位置布局晶体并采用应力更小的切割方法。FOX福克斯C5BQ贴片晶振,FQ5032B-19.6608车载导航晶振
陶瓷包装
在一个不同扩张系数电路板（环氧玻璃）上焊接陶瓷封装石英晶振时,在温度长时间重复变化时可能导致端子焊接部分发生断裂,请事先检查焊接特性。
FOX福克斯C5BQ贴片晶振,FQ5032B-19.6608车载导航晶振
美国FOX晶振均选用无铅,高品质材料,运用自身独特的封装技术,所生产晶振在产品中使用具有耐高温,抗振性强,低功耗,高精密等特点,FOX晶振符合欧盟环保要求,早已获得美国UL,C-TPAT认证,并且生产设施均符合QS-9000,ISO-9001:2008国际质量管理体系认证.
福克斯电子继续发展和提升新产品的无铅设计,推动我们的技术,包括可以实现低功耗晶振产品,帮助减少客户的能源消耗.FOX环境政策,环境方面,福克斯晶振将追求以下企业目标：
1.利用污染预防技术,包括但不限于减少原材料替代,再利用,自然资源保护和回收
2.教育福克斯晶振全体员工和承包环境计划,规范和与运营和工作相关的要求执行
3.不断改善环境管理通过分析和创造可实现的系统目标,以尽量减少对环境的污染
4.满足并保持对相关的遵守环境法规和其他要求
|
原厂编码
|
贴片石英晶振
|
型号
|
Type 系列
|
频率
|
包装/封装
|
|
FQ5032B-12.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
12MHz
|
4-SMD, No Lead
|
|
FQ5032B-12.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
12MHz
|
4-SMD, No Lead
|
|
FQ5032B-12.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
12MHz
|
4-SMD, No Lead
|
|
FQ5032B-25.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
25MHz
|
4-SMD, No Lead
|
|
FQ5032B-25.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
25MHz
|
4-SMD, No Lead
|
|
FQ5032B-25.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
25MHz
|
4-SMD, No Lead
|
|
FQ5032B-20.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
20MHz
|
4-SMD, No Lead
|
|
FQ5032B-20.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
20MHz
|
4-SMD, No Lead
|
|
FQ5032B-20.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
20MHz
|
4-SMD, No Lead
|
|
FQ5032B-18.432
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
18.432MHz
|
4-SMD, No Lead
|
|
FQ5032B-18.432
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
18.432MHz
|
4-SMD, No Lead
|
|
FQ5032B-18.432
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
18.432MHz
|
4-SMD, No Lead
|
|
FQ5032B-24.576
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24.576MHz
|
4-SMD, No Lead
|
|
FQ5032B-24.576
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24.576MHz
|
4-SMD, No Lead
|
|
FQ5032B-24.576
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24.576MHz
|
4-SMD, No Lead
|
|
FQ5032B-24.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24MHz
|
4-SMD, No Lead
|
|
FQ5032B-24.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24MHz
|
4-SMD, No Lead
|
|
FQ5032B-24.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24MHz
|
4-SMD, No Lead
|
|
FQ5032B-16.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
16MHz
|
4-SMD, No Lead
|
|
FQ5032B-16.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
16MHz
|
4-SMD, No Lead
|
|
FQ5032B-16.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
16MHz
|
4-SMD, No Lead
|
|
FQ5032BR-25.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
25MHz
|
4-SMD, No Lead
|
|
FQ5032BR-25.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
25MHz
|
4-SMD, No Lead
|
|
FQ5032BR-25.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
25MHz
|
4-SMD, No Lead
|
|
FQ5032BR-12.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
12MHz
|
4-SMD, No Lead
|
|
FQ5032BR-12.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
12MHz
|
4-SMD, No Lead
|
|
FQ5032BR-12.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
12MHz
|
4-SMD, No Lead
|
|
FQ5032BR-20.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
20MHz
|
4-SMD, No Lead
|
|
FQ5032BR-20.000
|
Fox Crystal
|
C5BQ无源晶振
|
MHz Crystal
|
20MHz
|
4-SMD, No Lead
|
|
FQ5032BR-20.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
20MHz
|
4-SMD, No Lead
|
|
FQ5032BR-24.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24MHz
|
4-SMD, No Lead
|
|
FQ5032BR-24.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24MHz
|
4-SMD, No Lead
|
|
FQ5032BR-24.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
24MHz
|
4-SMD, No Lead
|
|
FQ5032BR-10.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
10MHz
|
4-SMD, No Lead
|
|
FQ5032BR-10.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
10MHz
|
4-SMD, No Lead
|
|
FQ5032BR-10.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
10MHz
|
4-SMD, No Lead
|
|
FQ5032BR-16.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
16MHz
|
4-SMD, No Lead
|
|
FQ5032BR-16.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
16MHz
|
4-SMD, No Lead
|
|
FQ5032BR-16.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
16MHz
|
4-SMD, No Lead
|
|
FQ5032B-19.6608
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
19.6608MHz
|
4-SMD, No Lead
|
|
FQ5032B-14.7456
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
14.7456MHz
|
4-SMD, No Lead
|
|
FQ5032B-14.7456
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
14.7456MHz
|
4-SMD, No Lead
|
|
FQ5032B-14.7456
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
14.7456MHz
|
4-SMD, No Lead
|
|
FQ5032B-10.000
|
Fox Crystal
|
C5BQ
|
MHz Crystal
|
10MHz
|
4-SMD, No Lead
|
