KX-12B,6035mm,两脚贴片晶振,Geyer格耶无源晶振

频率：8.0MHz~50.0MHz

尺寸：6.0x3.5x1.0mm

KX-12B,6035mm,两脚贴片晶振,Geyer格耶无源晶振，丹麦进口晶振，Geyer格耶电子晶振，型号：KX-12B系列晶振，频率为：8.0MHz~50.0MHz，小体积晶振尺寸：6.0x3.5x1.0mm封装，两脚贴片晶振，6035mm晶振，石英贴片晶振，无源晶振，SMD石英晶体，石英晶体谐振器，无铅环保晶振，工作温度范围：-40℃~+85℃ (KX-12BT)，-40℃~+105℃ (KX-12BE)，-40℃~+125℃ (KX-12BF)。具有超小型，轻薄型，高精度，高可靠性，高性能，高品质，耐热及耐环境等特点。石英晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙晶振，物联网，平板电脑，安防设备，医疗设备，汽车电子，游戏机设备，数码电子，智能家居，数码电子等应用。

订购热线：0755-27838351

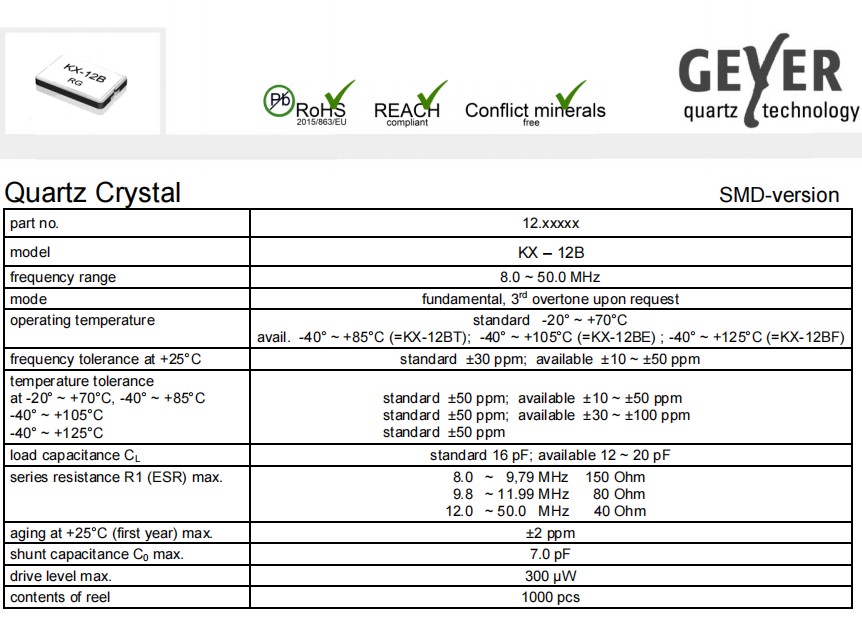

KX-12B,6035mm,两脚贴片晶振,Geyer格耶无源晶振,参数表

part no.	12.xxxxx
model	KX - 12B
frequency range	8.0 ~ 50.0 MHz
mode	fundamental, 3rd overtone upon request
operating temperature	standard -20° ~ +70°C avail. -40° ~ +85°C (=KX- 12BT) -40° ~ +105°C (=KX- 12BE) -40° ~ +125°C (=KX- 12BF)
frequency tolerance at +25°C	standard ±30 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C, -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C	standard ±50 standard ±50 standard ±50	ppm; available ±10 ~ ±50 ppm ppm; available ±30 ~ ±100 ppm ppm
load capacitance CL	standard 16 pF; available 12 ~ 20 pF
series resistance R1 (ESR) max.	8.0 ~ 9,79 MHz 150 Ohm 9.8 ~ 11.99 MHz 80 Ohm 12.0 ~ 50.0 MHz 40 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	7.0 pF
drive level max.	300 µW
contents of reel	1000 pcs

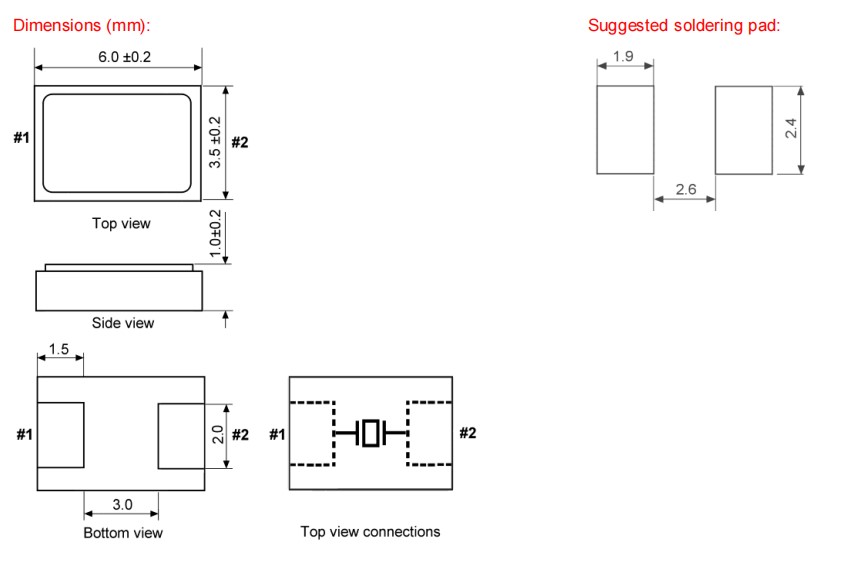

KX-12B,6035mm,两脚贴片晶振,Geyer格耶无源晶振,尺寸图
