E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振，尺寸5.0x3.2mm，频率16MHZ，台湾无源晶振，无源贴片晶振，SMD晶振，水晶振动子，SMD晶体谐振器，贴片陶瓷晶振，5032mm贴片晶振，两脚贴片晶振，无源晶振，陶瓷谐振器，智能手机专用晶振，数字视频晶振，测试设备晶振，多媒体设备晶振，娱乐设备晶振，小型设备晶振，无线网络晶振，低功耗晶振，轻薄型晶振，高质量晶振，高品质晶振，具有轻薄型高质量的特点。
陶瓷谐振器产品主要主要解决方案为DIP型晶体设计寻求考虑，适合用于智能手机，数字视频，多媒体设备，娱乐设备，小型设备，无线网络，测试设备等领域。E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振.

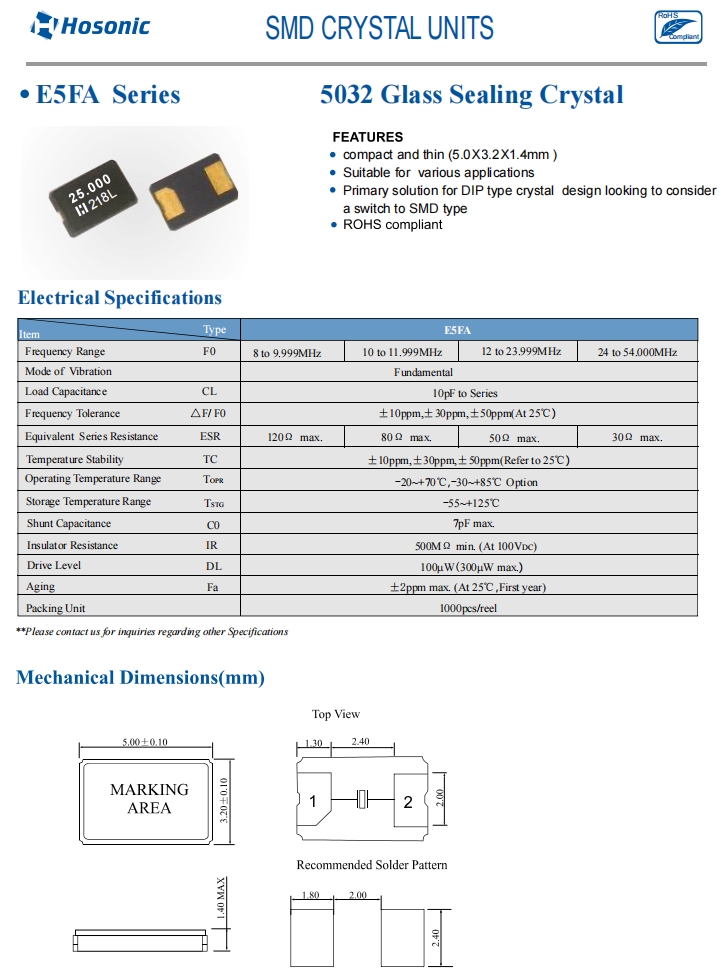

E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振 参数表
Item
Frequency Range
|
Type
F0
|
E5FA
|
|
16MHz
|
10 to 11.999MHz
|
12 to 23.999MHz
|
24 to 54.000MHz
|
|
Mode of Vibration
|
|
Fundamental
|
|
Load Capacitance
|
CL
|
10pF to Series
|
|
Frequency Tolerance
|
ΔF/ F0
|
±10ppm, ±30ppm, ±50ppm(At 25℃)
|
|
Equivalent Series Resistance
|
ESR
|
120Ω max.
|
80Ω max.
|
50Ω max.
|
30Ω max.
|
|
Temperature Stability
|
TC
|
±10ppm, ±30ppm, ±50ppm(Refer to 25℃)
|
|
Operating Temperature Range
|
TOPR
|
-20~+70℃,-30~+85℃ Option
|
|
Storage Temperature Range
|
TSTG
|
-55~+125℃
|
|
Shunt Capacitance
|
C0
|
7pF max.
|
|
Insulator Resistance
|
IR
|
500MΩ min. (At 100VDC)
|
|
Drive Level
|
DL
|
100μW(300μW max.)
|
|
Aging
|
Fa
|
±2ppm max. (At 25℃,First year)
|
|
Packing Unit
|
|
1000pcs/reel
|

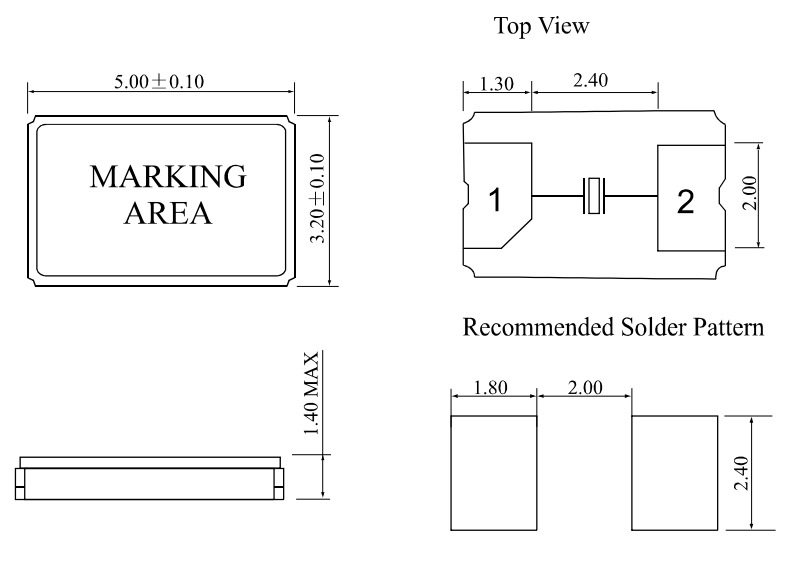

E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振 尺寸图
E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振
产品特点：
紧凑而薄(5 × 3.2 × 1.4mm)
适用于各种应用
主要解决方案为DIP型晶体设计寻求考虑
a切换到SMD晶体类型
|
Mfr Part #
|
Supplier
|
Series
|
Frequency
|
Frequency Stability稳定度
|
Frequency Tolerance
|
Load Capacitance
|
|
E2SB40E000104ECBB8
|
Hosonic鸿星晶振
|
E2SB
|
40 MHz
|
±10ppm
|
±7ppm
|
12pF
|
|
E2SB38E0X0300E
|
Hosonic鸿星晶振
|
E2SB
|
38.4 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
E2SB40E000107E
|
Hosonic鸿星晶振
|
E2SB
|
40 MHz
|
-12ppm, +20ppm
|
±5ppm
|
12pF
|
|
E2SB40E00010AE
|
Hosonic鸿星晶振
|
E2SB
|
40 MHz
|
±10ppm
|
±7ppm
|
7pF
|
|
E1SB24E00001EE
|
Hosonic鸿星晶振
|
E1S
|
24 MHz
|
±30ppm
|
±30ppm
|
18pF
|
|
E1SB60E003701E
|
Hosonic鸿星晶振
|
E1S
|
60 MHz
|
±20ppm
|
±10ppm
|
9pF
|
|
E2SB27E0X0000E
|
Hosonic鸿星晶振
|
E2SB
|
27.12 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
E2SB24E001801E
|
Hosonic鸿星晶振
|
E2SB
|
24 MHz
|
±20ppm
|
±20ppm
|
12pF
|
|
E2SB40E000108E
|
Hosonic鸿星晶振
|
E2SB
|
40 MHz
|
±15ppm
|
±7ppm
|
6pF
|
|
ETSB37E0X0014E
|
Hosonic鸿星晶振
|
ETSB
|
37.4 MHz
|
±10ppm
|
±10ppm
|
16pF
|
|
ETSB38E0X0005E
|
Hosonic鸿星晶振
|
ETSB
|
38.4 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
E1SB25E000009E
|
Hosonic鸿星晶振
|
E1S
|
25 MHz
|
±30ppm
|
±30ppm
|
6pF
|
|
E1SB24E004000E
|
Hosonic鸿星晶振
|
E1S
|
24 MHz
|
±10ppm
|
±10ppm
|
18pF
|
|
E1SB38E0X0001E
|
Hosonic鸿星晶振
|
E1S
|
38.4 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
E1SB40E00090AECBB8
|
Hosonic鸿星晶振
|
E1S
|
40 MHz
|
±20ppm
|
±10ppm
|
12pF
|
|
E1SB48E000506E
|
Hosonic鸿星晶振
|
E1S
|
48 MHz
|
±16ppm
|
±8ppm
|
11.1pF
|
|
E1SB25E001000E
|
Hosonic鸿星晶振
|
E1S
|
25 MHz
|
±30ppm
|
±30ppm
|
18pF
|
|
E2SB12E000005E
|
Hosonic鸿星晶振
|
E2SB
|
12 MHz
|
±20ppm
|
±20ppm
|
12pF
|
|
E1SB37E0X0002E
|
Hosonic鸿星晶振
|
E1S
|
37.4 MHz
|
±10ppm
|
±10ppm
|
16pF
|
|
E1SB32E001501ECBB8
|
Hosonic鸿星晶振
|
E1S
|
32 MHz
|
±10ppm
|
±10ppm
|
9pF
|
|
ETSB24E000003E
|
Hosonic鸿星晶振
|
ETSB
|
24 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
ETSB48E007500ECBB8
|
Hosonic鸿星晶振
|
ETSB
|
48 MHz
|
±15ppm
|
±10ppm
|
10pF
|
|
ETSB48E007502E
|
Hosonic鸿星晶振
|
ETSB
|
48 MHz
|
±15ppm
|
±10ppm
|
10pF
|
|
ETSB32E000003E
|
Hosonic鸿星晶振
|
ETSB
|
32 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
ETSB60E003700E
|
Hosonic鸿星晶振
|
ETSB
|
60 MHz
|
±20ppm
|
±10ppm
|
9pF
|
|
E2SB16E00000ME
|
Hosonic鸿星晶振
|
E2SB
|
16 MHz
|
±30ppm
|
±30ppm
|
12pF
|
|
E2SB26E001201E
|
Hosonic鸿星晶振
|
E2SB
|
26 MHz
|
±13ppm
|
±5ppm
|
9pF
|
|
E2SB32E001201E
|
Hosonic鸿星晶振
|
E2SB
|
32 MHz
|
±10ppm
|
±10ppm
|
12pF
|
|
ETSB27E0X0003E
|
Hosonic鸿星晶振
|
ETSB
|
27.12 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
ETSB25E004800E
|
HOSONIC晶振
|
ETSB
|
25 MHz
|
±15ppm
|
±10ppm
|
8pF
|
|
E2SB32E00000LE
|
Hosonic鸿星晶振
|
E2SB
|
32MHz
|
±10ppm
|
|
9pF
|
|
E5FA8E000000DE
|
Hosonic鸿星晶振
|
E5FA
|
8MHz
|
±20ppm
|
|
20pF
|
|
E5SB8E0000000E
|
Hosonic鸿星晶振
|
E5SB
|
8MHz
|
±10ppm
|
|
10pF
|
|
E5SB8E0000015E10C0
|
Hosonic鸿星晶振
|
E5SB
|
8MHz
|
|
|
10pF
|
|
E2SB37E0X0002E
|
Hosonic鸿星晶振
|
E2SB
|
37.4MHz
|
±10ppm
|
|
10pF
|
|
E2SB24E000016E
|
Hosonic鸿星晶振
|
E2SB
|
24MHz
|
±10ppm
|
|
20pF
|
|
E2SB54E000000E
|
Hosonic鸿星晶振
|
E2SB
|
54MHz
|
±10ppm
|
|
10pF
|
|
E2SB48E000009E
|
Hosonic鸿星晶振
|
E2SB
|
48MHz
|
±10ppm
|
|
12pF
|
|
E2SB50E00000EE
|
Hosonic鸿星晶振
|
E2SB
|
50MHz
|
±14ppm
|
|
19pF
|
|
E2SB37E0X0004E
|
Hosonic鸿星晶振
|
E2SB
|
37.4MHz
|
±10ppm
|
|
12pF
|
|
E2SB40E000007E
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
10pF
|
|
E2SB40E000003E
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
8pF
|
|
E2SB24E00001NE
|
Hosonic鸿星晶振
|
E2SB
|
24MHz
|
±15ppm
|
|
16pF
|
|
E2SB40E00000RE
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±30ppm
|
|
20pF
|
|
E2SB38E0X0007E
|
Hosonic鸿星晶振
|
E2SB
|
38.400MHz
|
±10ppm
|
|
10pF
|
|
E2SB54E000009E
|
Hosonic鸿星晶振
|
E2SB
|
54MHz
|
±5ppm
|
|
19pF
|
|
E2SB26E00000GE
|
Hosonic鸿星晶振
|
E2SB
|
26MHz
|
±10ppm
|
|
16pF
|
|
E2SB26E000007E
|
Hosonic鸿星晶振
|
E2SB
|
26MHz
|
±10ppm
|
|
9pF
|
|
E2SB40E000006E
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
10pF
|
|
E2SB40E00000EE
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
15pF
|
|
E2SB26E00000DE
|
Hosonic鸿星晶振
|
E2SB
|
26MHz
|
±10ppm
|
|
12pF
|
|
E2SB50E00000CE
|
Hosonic鸿星晶振
|
E2SB
|
50MHz
|
±10ppm
|
|
8pF
|
|
E2SB48E000004E
|
Hosonic鸿星晶振
|
E2SB
|
48MHz
|
±10ppm
|
|
10pF
|
|
E2SB16E000014E
|
Hosonic鸿星晶振
|
E2SB
|
16MHz
|
±10ppm
|
|
16pF
|
|
E2SB40E000009E
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
12pF
|
|
E2SB26E000005E
|
Hosonic鸿星晶振
|
E2SB
|
26.000MHz
|
±10ppm
|
|
9PF
|
|
E2SB12E00000CE
|
Hosonic鸿星晶振
|
E2SB
|
12MHz
|
±20ppm
|
|
18pF
|
|
E2SB16E000007E
|
Hosonic鸿星晶振
|
E2SB
|
16MHz
|
±10ppm
|
|
10pF
|
|
E2SB16E00000VE
|
Hosonic鸿星晶振
|
E2SB
|
16MHz
|
±10ppm
|
|
12pF
|
|
E2SB27E00000KE
|
Hosonic鸿星晶振
|
E2SB
|
27MHz
|
±10ppm
|
|
10pF
|
|
E2SB40E00000WE
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
9pF
|
|
E2SB16E000003E
|
Hosonic鸿星晶振
|
E2SB
|
16MHz
|
±10ppm
|
|
9pF
|
|
E2SB27E00000EE
|
Hosonic鸿星晶振
|
E2SB
|
27.000MHz
|
±10ppm
|
|
20pF
|
|
E2SB32E000018E
|
Hosonic鸿星晶振
|
E2SB
|
32MHz
|
±10ppm
|
|
10pF
|
|
E2SB26E000103E
|
Hosonic鸿星晶振
|
E2SB
|
26MHz
|
±10ppm
|
|
7.5pF
|
|
E2SB40E00000JE
|
Hosonic鸿星晶振
|
E2SB
|
40MHz
|
±10ppm
|
|
12pF
|
|
E2SB12E000014E
|
Hosonic鸿星晶振
|
E2SB
|
12MHz
|
±10ppm
|
|
20pF
|
|
E2SB38E0X000HE
|
Hosonic鸿星晶振
|
E2SB
|
38.4MHz
|
±10ppm
|
|
12pF
|
|
E2SB24E00000LE
|
Hosonic鸿星晶振
|
E2SB
|
24.000MHz
|
±10ppm
|
|
12PF
|
|
E49B8E000001AE
|
Hosonic鸿星晶振
|
E49B
|
8MHz
|
±20ppm
|
|
20pF
|
|
E2SB24E00000ZE
|
Hosonic鸿星晶振
|
E2SB
|
24MHz
|
±10ppm
|
|
9pF
|
|
E5SB8.00000F10E11
|
Hosonic鸿星晶振
|
E5SB
|
8MHz
|
10ppm
|
|
10pF
|
|
E2SB27E0X000CE
|
Hosonic鸿星晶振
|
E2SB
|
27.12MHz
|
±10ppm
|
|
10pF
|
|
E49B13E0X000FE10C0
|
Hosonic鸿星晶振
|
E49B
|
13.560MHz
|
±20ppm
|
|
20PF
|
|
E5FA8.00000F20E22
|
Hosonic鸿星晶振
|
E5FA
|
8MHz
|
±20ppm
|
|
20PF
|
|
E49B4E000000VE10C0
|
Hosonic鸿星晶振
|
E49B
|
4MHz
|
±20ppm
|
|
20PF
|
|
E5FA8.00000F20E11
|
Hosonic鸿星晶振
|
E5FA
|
8MHz
|
|
|
|
|
E49B11E0X000YE10C0
|
Hosonic鸿星晶振
|
E49B
|
11.0592MHz
|
±20ppm
|
|
20pF
|
|
E49A8E00000FE10CO
|
Hosonic鸿星晶振
|
E49A
|
8MHz
|
±20ppm
|
|
20pF
|
|
E49A16E00000KE10CO
|
Hosonic鸿星晶振
|
E49A
|
16M
|
±20ppm
|
|
20pF
|
|
E49A25E000033E
|
Hosonic鸿星晶振
|
E49A
|
20pF
|
±30ppm
|
|
20pF
|
|
E49A8E000001CE
|
Hosonic鸿星晶振
|
E49A
|
|
|
|
10pF
|
|
E49B10E00000TE
|
Hosonic鸿星晶振
|
E49B
|
10MHZ
|
|
|
10pF
|
|
E49B4E00X000ZE
|
Hosonic鸿星晶振
|
E49B
|
|
|
|
10pF
|
|
E49B8E00X000CE
|
Hosonic鸿星晶振
|
E49B
|
|
|
|
10pF
|
