FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振

当前位置：首页 » 日产晶振 » FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振

prevnext

FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振

频率：32.768KHz音叉晶振

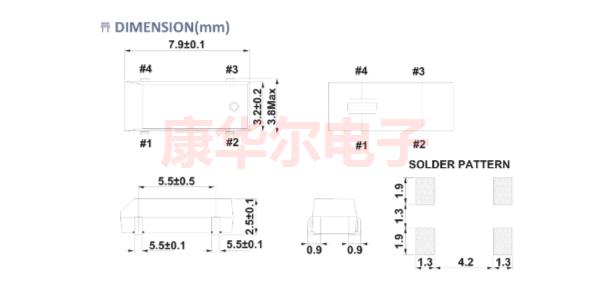

尺寸：8038mm晶振

FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振,标准32.768kHz频率,FCT-8M陶瓷晶振经典8038贴片封装(8.0×3.8mm).型号编码释义清晰:负载电容6pF,频率精度严苛,工作温区覆盖-30℃~+70℃,高低温温漂控制优异,等效串联电阻适中,振荡波形纯净稳定.陶瓷加固封装抗震防潮,适配SMT自动化贴片量产;超低功耗无源架构,完美匹配各类RTC实时时钟,低功耗MCU计时电路.原厂原装品质合规RoHS,库存充裕,可提供规格书,样品测试与电路匹配技术支持,欢迎致电0755-27838351咨询报价,交期与选型方案.

订购热线：0755-27838351

FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振

康华尔电子经销Fujicom富士晶振原装FCT8M032768C5S1工业级贴片晶振,32.768kHz谐振器专为物联网终端打造.8038标准封装适配户外数据采集模块,无线传感器,小型工控设备,智能电表水表等设备;FCT-8M音叉晶振宽泛-30℃~70℃工作温度,可应对昼夜温差大,潮湿闷热的复杂户外工况,陶瓷结构抗震动,耐湿热,长期运行不易出现时序偏移.6pF负载兼容性广泛,无源休眠功耗极低,满足设备常年待机值守需求.原厂货源交付稳定,可定制批量供货计划,配套电路调试技术服务,试样,批量采购均可拨打0755-27838351洽谈合作.

FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振

品牌	Fujicom晶振
编码	FCT8M03276806R3
型号	FCT-8M
频率	32.768kHz
精度	-
负载	6pF
尺寸	8.00mm x 3.80mm
工作温度	-30°C ~ 70°C

FCT8M03276806R3,FCT-8M音叉晶振,Fujicom晶振

更多相关晶振参考

编码	品牌	型号	尺寸	频率	负载
12.87000	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	12.5pF
12.87001	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	9pF
12.87002	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	7pF
12.87034	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	4pF
12.87080	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87081	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87083	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87086	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87090	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87095	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87105	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87107	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87109	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12pF
12.87110	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87111	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87112	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87113	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87114	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87115	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87116	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87118	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87119	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87120	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87121	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87123	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87126	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87127	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87128	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87129	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87130	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87131	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87132	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87133	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87134	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87135	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87136	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87137	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	9pF
12.87138	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87139	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87143	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87144	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87145	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768KHz	12.5pF
12.87146	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87147	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87148	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87149	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87150	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87151	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87152	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87153	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87155	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87157	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87158	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87159	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87160	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87161	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87163	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	7pF
12.87164	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87165	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87166	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87167	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87168	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87169	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87170	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87171	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87172	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	9pF
12.87173	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	9pF
12.87174	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87175	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87176	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87177	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87178	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	4pF
12.87180	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87181	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87182	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87183	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87186	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87187	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	6pF
12.87188	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
