FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振

当前位置：首页 » 日产晶振 » FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振

prevnext

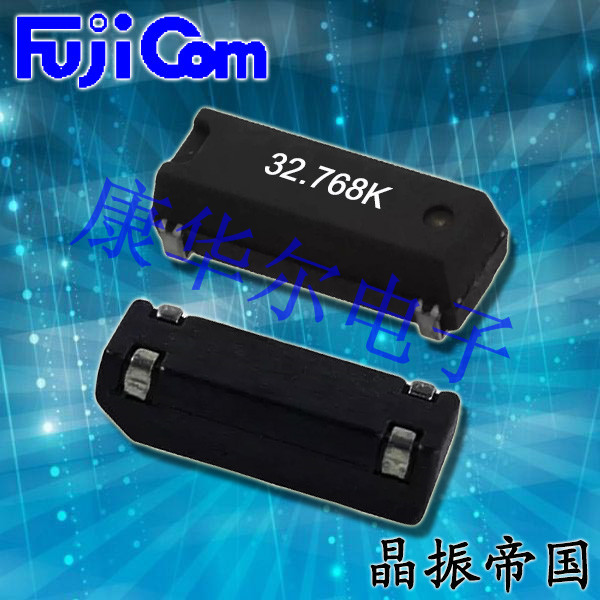

FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振

频率：32.768KHz音叉晶振

尺寸：8038mm晶振

FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振,32.768kHz标准时钟频点,6pF负载适配NB-IoT,蓝牙BLE,LoRa无线模组内置RTC单元.8038长条陶瓷基座强化整体结构,抗震,抗跌落性能远超小型贴片晶振,-20+75℃宽温区间适配便携式医疗设备,智能门禁,工业计时器,安防主机.6pF通用负载电容,兼容市面绝大多数RTC时钟芯片,低ESR减少振荡损耗,低温环境下快速稳定起振,年频率偏移控制严苛,设备常年运行无需频繁校时.

订购热线：0755-27838351

FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振

康华尔电子,Fujicom富士晶振官方授权代理商,原装编带现货充足,提供电路匹配,样品测试全套技术服务,欢迎来电咨询0755-27838351.FCT8M03276806S6属于FCT-8M系列陶瓷封装32.768kHz晶振,标准8038(3.8×8.0mm)尺寸,6pF负载电容,适配水电燃气表,工控PLC,储能UPS等设备RTC计时电路,完美兼容STM32,STM8系列单片机.产品采用陶瓷基座密封工艺,对比金属封装防潮绝缘性能更强,原厂高纯石英音叉晶片加工,常温频差±10ppm,工作温域-20℃~+75℃,ESR参数稳定,待机功耗极低,有效延长仪表电池续航.陶瓷壳体结构刚性强,抗震动,抗电磁干扰,适配全自动无铅SMT回流焊,年度老化漂移仅±3ppm,长期计时精度稳定.我司常备大批量原装现货,可免费提供试样,工程师一对一指导PCB布线,负载电容匹配,原厂质检报告齐全,批量采购价格优势突出,长期供货交期稳定,为工业计量厂商稳定供应时钟元器件.

FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振

品牌	Fujicom贴片晶振
编码	FCT8M03276806S6
型号	FCT-8M
频率	32.768kHz
精度	-
负载	6pF

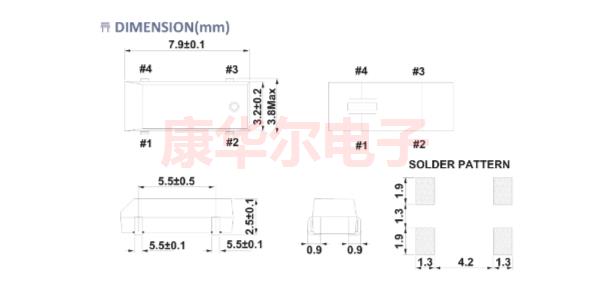

尺寸	8.00mm x 3.80mm
工作温度	-20+75℃

FCT-8M陶瓷晶振,FCT8M03276806S6,Fujicom富士晶振
