频率:16MHz~60MHz
尺寸:2.0x1.6mm
6G车载导航晶振,BMC-20晶体谐振器,Lihom小体积晶振,韩国进口晶振,LihomCrystal力宏晶振,型号:BMC-20,小体积晶振尺寸:2.0x1.6x0.5mm ,频率范围:16MHz~60MHz,四脚贴片晶振,石英晶振,无源晶振,石英晶体谐振器,无铅环保晶振,具有超小型,轻薄型,优异的可靠性特性,如热和机械冲击,无铅,满足RoHs要求,可进行回流焊接。应用于:数字电子产品、消费电子,移动通信,蓝牙,无线局域网,汽车级晶振,车载导航晶振,小型便捷式设备,智能手机,平板电脑,数码电子等应用。

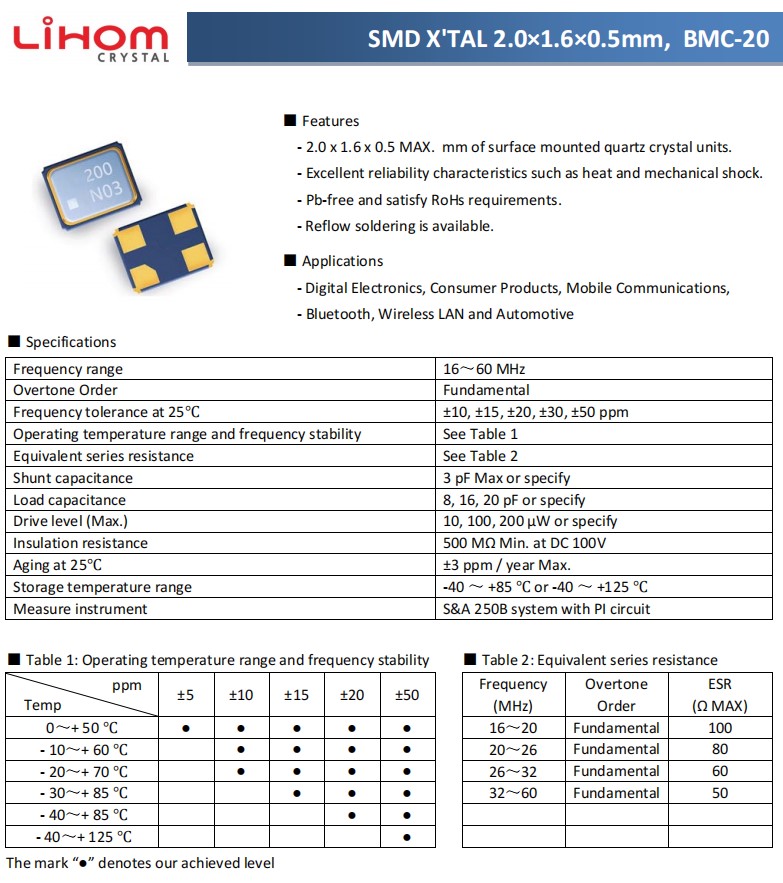

6G车载导航晶振,BMC-20晶体谐振器,Lihom小体积晶振,参数表
Frequency range
16~60 MHz
Overtone Order
Fundamental
Frequency tolerance at 25℃
±10, ±15, ±20, ±30, ±50 ppm
Operating temperature range and frequency stability
See Table 1
Equivalent series resistance
See Table 2
Shunt capacitance
3 pF Max or specify
Load capacitance
8, 16, 20 pF or specify
Drive level (Max.)
10, 100, 200 μW or specify
Insulation resistance
500 MΩ Min. at DC 100V
Aging at 25℃
±3 ppm / year Max.
Storage temperature range
-40 ~ +85 ℃ or -40 ~ +125 ℃
Measure instrument
S&A 250B system with PI circuit

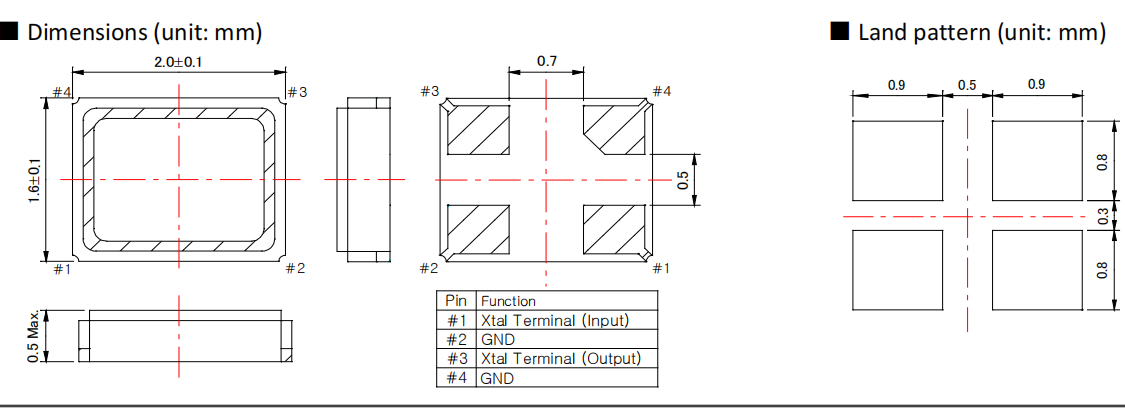

6G车载导航晶振,BMC-20晶体谐振器,Lihom小体积晶振,尺寸图
6G车载导航晶振,BMC-20晶体谐振器,Lihom小体积晶振
尺寸:2.0x1.6x0.5(最大)mm的表面安装石英晶体单元,石英贴片晶振
