433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器

产品简介

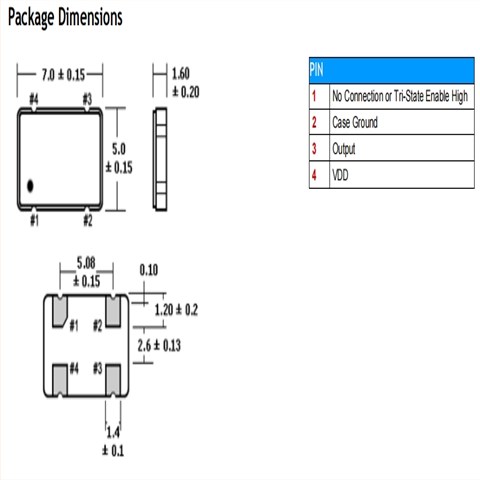

433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器，尺寸7.0×5.0mm，频率27MHZ，Oscilent进口晶振，石英晶体振荡器，XO时钟振荡器，7050mm有源晶振，有源贴片晶振，四脚贴片有源晶振，有源晶体振荡器，低抖动有源晶振，低功耗有源晶振，低电压有源晶振，低耗能有源晶振，智能家居有源晶振，网络设备有源晶振，6G无线模块晶振，蓝牙模块有源晶振，物联网晶振，仪器仪表晶振，测试设备有源晶振，具有低电压低抖动的特点。

OSC晶振产品很适合用于智能家居，网络设备，6G无线模块，蓝牙模块，物联网，仪器仪表，测试设备等领域。433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器.

产品详情

433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器 参数表

Parameter	Conditions	Characteristics		Units
Output Logic	-	HCMOS / TTL Output		-
Input Voltage (VDD)	-	3.3±10%	5.0±10%	VDC
Frequency Range (fO)	-	1.544~133.333		MHz
Operating Temperature (TOPR)	-	0 ~ +70 (Std.) / -40 ~ 85 (Option)		°C
Storage Temperature (TSTG)	TSTG	-55 ~ +125		°C
Frequency Stability	a + b + c + d	±25, ±50, ±100 max.		PPM
	(a) Frequency Tolerance	Inclusive of Overall Stability		-
	(b) Temperature Stability	Inclusive of Overall Stability (Operating Temperature)		-
	(c) Input Voltage Stability	Inclusive of Overall Stability (VDD ±10%)		-
	(d) Load Stability	Inclusive of Overall Stability (RL ±5%)		-
Input Current (IDD)	-	12 ~ 60 max.	25 ~ 100 max.	mA
Aging	@ 25°C	±5 max.		PPM/Y
Rise Time (TR) / Fall Time (TF)	-	8 max. (0.4V to 2.4V w/ TTL, 20% ~ 80% / HCMOS)		nS
PIN 1 Tri-State	-	Option		-
Output Voltage High "1" VOH	TTL Load	2.4 min		VDC
	HCMOS Load	2.7 min.	VDD-0.5 min.
Output Voltage Low "0" VOL	TTL Load	0.4 max.		VDC
	HCMOS Load	0.5 max.
Duty Cycle	-	50 ±10 (Std.) / 50 ±5 (Option)		%
Start-Up Time (TS)	1~ 35 MHz	4 max.		mS
	35 ~ 125.000 MHz	10 max.
Jitter	(Bandwidth 12Khz ~ 20Mhz)	±1		ps RMS
