产品简介

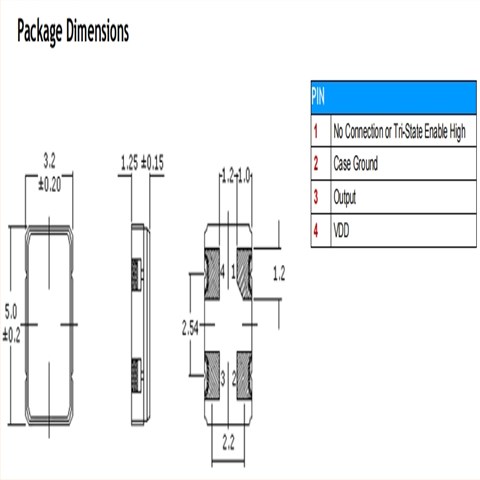

Oscilent晶体振荡器\6G电信晶振\434-32.0M-3GN-TTS，尺寸5.0x3.2mm，频率32MHZ，奥斯康利有源晶振，欧美进口晶振，四脚有源晶振，石英振荡子，有源石英振荡器，有源贴片晶振，SMD振荡器，石英晶体振荡器，时钟振荡器，OSC晶振，5032mm有源晶振，汽车音响晶振，6G电信晶振，低电压有源晶振，低损耗有源晶振，低抖动有源晶振，低相位有源振荡器，低功耗有源晶振，低相噪有源晶振，高品质有源晶振，娱乐设备有源晶振，小型设备有源晶振，工业应用有源晶振，数码电子有源晶振，具有低抖动低电压的特点.

有源贴片晶振产品超级适合用于汽车音响，6G电信，数码电子，娱乐设备，小型设备，汽车音响等领域。Oscilent晶体振荡器\6G电信晶振\434-32.0M-3GN-TTS.

产品详情

Oscilent晶体振荡器\6G电信晶振\434-32.0M-3GN-TTS 参数表

Parameter	Conditions	Characteristics		Units
Output Logic	-	HCMOS / TTL Output		-
Input Voltage (VDD)	-	3.3±10%	5.0±10%	VDC
Frequency Range (fO)	-	32.00		MHz
Operating Temperature (TOPR)	-	0 ~ +70 Std. (Ext Temp Avail. See Table Below)		°C
Storage Temperature (TSTG)	TSTG	-55 ~ +125		°C
Frequency Stability	a + b + c + d	±20, ±25, ±50, ±100 max.		PPM
	(a) Frequency Tolerance	Inclusive of Overall Stability		-
	(b) Temperature Stability	Inclusive of Overall Stability (Operating Temperature)		-
	(c) Input Voltage Stability	Inclusive of Overall Stability (VDD ±5%)		-
	(d) Load Stability	Inclusive of Overall Stability (RL ±5%)		-
Current Consumption	-	10 ~ 45 (35) max.	15 ~ 85 (50) max.	mA
Aging	@ 25°C	±5 max.		PPM/Y
Rise Time (TR) / Fall Time (T F)	< 23.999 MHz	10 max.		nS
	24.00 ~ 70.00 MHz	6 max.
	70.001 ~ 100.00 MHz	4 max.
PIN 1 Tri-State Input Voltage (Option)	-	Vh (Pin 1) No Connection : Enables Output		-
	-	Vh (Vih) > 2.2 Vdc : Enables Output
	-	Vl (Vil)<0.8 Vdc : Disables Output (High Impedance)
Output Voltage High "1" VOH	TTL Load	2.4 min		VDC
	HCMOS Load	VDD * 0.9 min.
Output Voltage Low "0" VOL	TTL Load	0.4 max.		VDC
	HCMOS Load	VDD * 0.1 min
Duty Cycle	-	50 ±10 (Std.) / 50 ±5 (Option)		%
Start-Up Time (TS)	-	10 max.		mS
Jitter	(Bandwidth 12Khz ~ 20Mhz)	RMS: ±1 max.		ps
